NI PCI-5411 183962D-02 波形发生器卡 PDF资料
NI PCI-5411（备件号 183962D-02）是美国国家仪器（NI）推出的一款 PCI 总线高速任意波形发生器卡，最大采样率 40 MS/s，主要用于生成复杂模拟波形与数字激励信号。
产品特点（5条）
高速 DDS 波形生成，采用直接数字合成技术，模拟输出最大更新率 40 MHz，正弦波可靠输出频率上限 16 MHz。
多模式触发与序列控制，支持单次、连续、步进、突发四种触发模式，配合波形链接与循环功能生成复杂波形序列。
灵活的输出与同步接口，前面板提供 ARB 模拟输出、SYNC TTL 输出、PLL 参考输入及 50 针数字 I/O 接口，支持与外部时钟或其他 NI 设备同步。
12 位模拟输出与数字图案生成，模拟通道分辨率 12 位，50Ω 负载下输出 ±5V，同时可生成 16 位 TTL 数字图案。
板载存储与校准保障，标配 2,000,000 个 16 位样点的任意波形存储深度，出厂经 NIST 溯源校准，支持自校准。
产品应用领域（10条）
通信系统测试
半导体器件与混合集成电路测试
超声导波无损检测激励信号生成
网络分析中的模拟激励源
视频信号测试
串行通信链路测试
科研实验室任意波形激励与仿真
自动化功能测试系统中的信号源模块
数字协议仿真与串/并行 DAC 测试
需要多设备同步的复杂测试系统集成
结尾
综上，NI PCI-5411（183962D-02）是一款以 40 MS/s 采样率、DDS 合成技术及多模式触发为特点的 PCI 任意波形发生器卡，适用于通信测试、半导体验证及科研激励等需要高精度复杂波形生成的场景。
NI PCI-5411 183962D-02 波形发生器卡 英文介绍
NI PCI-5411 (spare part number 183962D-02) is a PCI bus high-speed arbitrary waveform generator card launched by National Instruments (NI) in the United States, with a maximum sampling rate of 40 MS/s. It is mainly used to generate complex analog waveforms and digital excitation signals.
Product features (5 items)
High speed DDS waveform generation, using direct digital synthesis technology, with a maximum analog output update rate of 40 MHz and a reliable sine wave output frequency upper limit of 16 MHz.
Multi mode triggering and sequence control, supporting four triggering modes: single, continuous, step, and burst, combined with waveform linking and loop functions to generate complex waveform sequences.
Flexible output and synchronization interface, the front panel provides ARB analog output, SYNC TTL output, PLL reference input, and 50 pin digital I/O interface, supporting synchronization with external clocks or other NI devices.
12 bit analog output and digital pattern generation, analog channel resolution of 12 bits, output ± 5V under 50 Ω load, and can also generate 16 bit TTL digital patterns.
Onboard storage and calibration assurance, with a standard configuration of 2000000 16 bit sample points for arbitrary waveform storage depth, factory certified by NIST traceability calibration, and support for self calibration.
Product application areas (10 items)
Communication system testing
Testing of Semiconductor Devices and Hybrid Integrated Circuits
Ultrasonic guided wave non-destructive testing excitation signal generation
Simulated Incentive Sources in Network Analysis
Video signal testing
Serial communication link testing
Random waveform excitation and simulation in scientific research laboratory
Signal source module in automated functional testing system
Digital Protocol Simulation and Serial/Parallel DAC Testing
Integration of complex testing systems that require synchronization of multiple devices
ending
In summary, NI PCI-5411 (183962D-02) is a PCI arbitrary waveform generator card characterized by a 40 MS/s sampling rate, DDS synthesis technology, and multi-mode triggering. It is suitable for scenarios that require high-precision complex waveform generation, such as communication testing, semiconductor verification, and scientific research incentives.

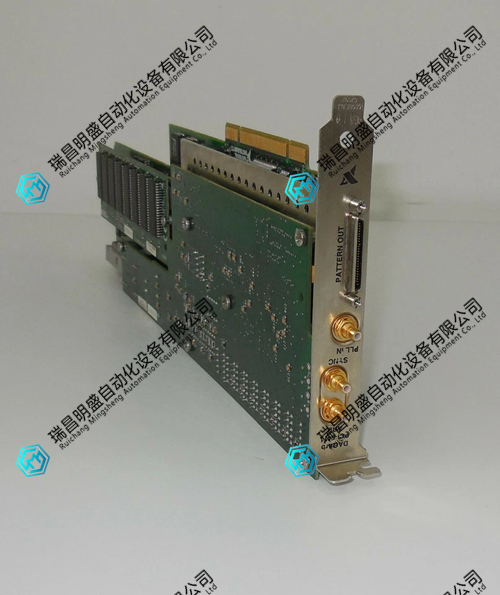

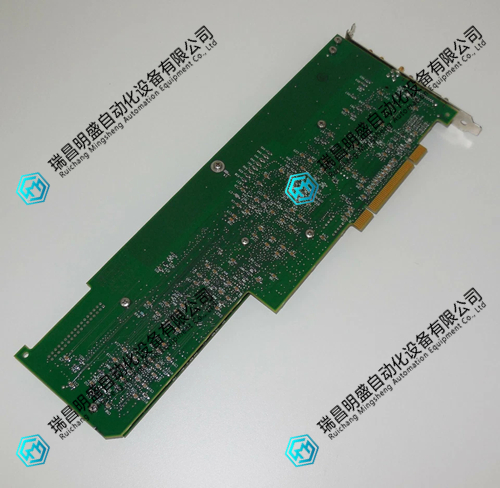

NI PCI-5411 183962D-02 波形发生器卡 产品图片
