IEI ROCKY-772REV CPU板 PDF资料

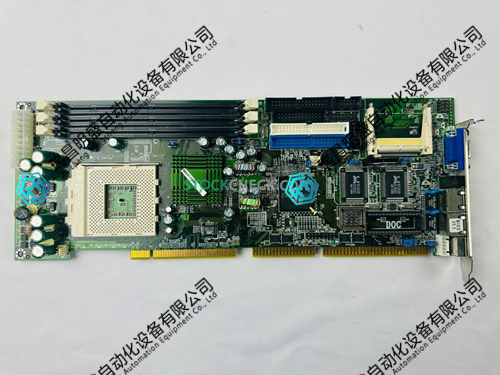

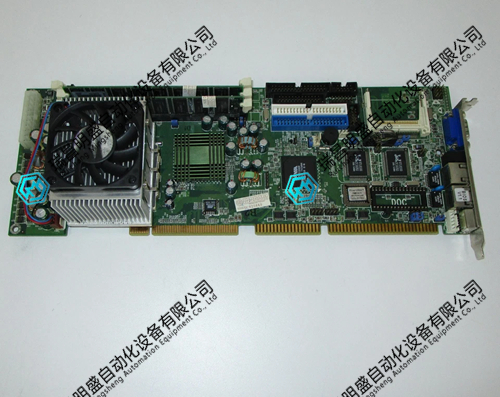

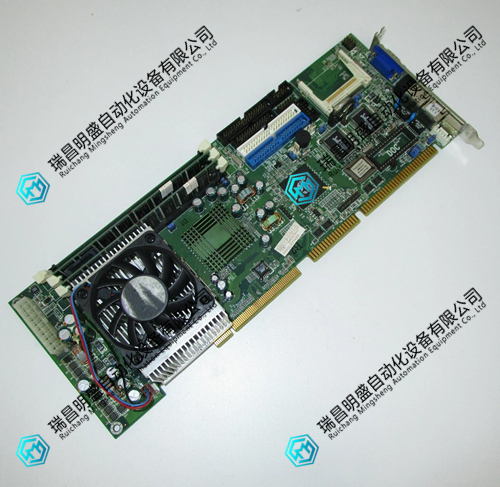

IEI ROCKY-772REV 是一款基于 PICMG 总线的全尺寸 Socket-A 架构 CPU 卡，属于 IEI ROCKY-772 系列中的 Realtek 网卡版本。
产品特点（5条）
Socket-A 处理器架构，支持 AMD Athlon / Duron 处理器，前端总线 200/266MHz。
双 Realtek 网卡配置，板载两个 Realtek 8100 10/100Mbps 以太网控制器，为 REV 版本区别于 NEV 版本的核心特征。
集成显示与音频，采用 VIA KL133A 芯片组，集成 Savage4 图形核心，共享内存最大 32MB，支持 AGP 4X，音频符合 AC‘97 规范。
存储扩展灵活，提供 DiskOnChip 插槽与 CompactFlash Type II 插槽，支持固态存储方案。
工业级 I/O 与监控，具备 2 个 RS-232 串口、4 个 USB 1.1 接口、2 个 ATA-100 IDE 通道，支持硬件监测与看门狗定时器。
产品应用领域（10条）
工业控制计算机系统
老旧 PICMG 总线设备升级与维修替换
自动化产线控制主机
数控机床控制平台
通信设备控制单元
电力监控设备
交通控制系统中控机
医疗仪器嵌入式控制
安防监控后台主机
测试测量设备主控板
结尾
综上，IEI ROCKY-772REV 是一款面向工业嵌入式场景的 PICMG 全尺寸 CPU 卡，以 Socket-A 架构和双 Realtek 网卡为识别特征，适用于 legacy 工控设备的维护与替换。
IEI ROCKY-772REV CPU板 英文介绍
IEI ROCKY-772REV is a full-size Socket-A architecture CPU card based on PICMG bus, belonging to the Realtek network card version in the IEI ROCKY-772 series.
Product features (5 items)
Socket-A processor architecture, supporting AMD Athlon/Duron processors, front-end bus 200/266MHz.
Dual Realtek network card configuration, with two Realtek 8100 10/100Mbps Ethernet controllers onboard, is the core feature that distinguishes REV version from NEV version.
Integrated display and audio, using VIA KL133A chipset, integrated Savage4 graphics core, shared memory up to 32MB, supports AGP 4X, and audio complies with AC'97 specifications.
Flexible storage expansion, providing DiskoChip slots and CompactFlash Type II slots, supporting solid-state storage solutions.
Industrial grade I/O and monitoring, equipped with 2 RS-232 serial ports, 4 USB 1.1 interfaces, 2 ATA-100 IDE channels, supporting hardware monitoring and watchdog timers.
Product application areas (10 items)
Industrial control computer system
Upgrading, repairing, and replacing old PICMG bus equipment
Automated production line control host
CNC machine tool control platform
Communication equipment control unit
Power monitoring equipment
Traffic control system central control machine
Embedded control of medical instruments
Security monitoring backend host
Test and measurement equipment main control board
ending
Overall, IEI ROCKY-772REV is a PICMG full-size CPU card designed for industrial embedded scenarios, featuring Socket-A architecture and dual Realtek network cards as recognition features, suitable for maintenance and replacement of legacy industrial control equipment.
