Omron CS1W-MC421 运动控制模块 PDF资料
Omron CS1W-MC421
产品特点（5条）
属于欧姆龙 CS1 系列高功能 I/O 单元中的运动控制模块，采用模拟量输出、半闭环控制方式，最多控制 4 轴伺服驱动。
内置 G 语言编程，支持多任务功能，各轴可独立运行独立程序，实现直线插补、圆弧插补及螺旋插补。
从 CPU 单元发出启动指令到模块响应，2 轴时约 8ms、4 轴时约 12ms，编码器应答频率达 4 倍频 2Mpps，适配高速高精度伺服电机。
支持电子齿轮、电子凸轮、虚拟轴等同步控制功能，定位完成或经过指定位置时可向 CPU 输出 D code 中断，实现高速连锁。
单个 CPU 最多可安装 19 台 4 轴模块，实现最多 76 轴的多轴控制（需在电源容量范围内）。
应用领域（10条）
变压器绝缘垫块数控加工生产线（6 轴伺服控制）
机床数控系统的多轴进给与插补控制
绕线机、卷取设备的同步与电子凸轮控制
自动化装配线的多轴定位与搬运控制
包装机械的多轴同步动作控制
专用加工设备的 G 语言运动编程控制
需要圆弧/螺旋插补的轨迹加工设备
高速高精度伺服定位平台
老旧 CS1 系统运动控制单元维修替换
教学与维修培训中的运动控制模块实操
总结：Omron CS1W-MC421 是 CS1 系列 PLC 的 4 轴模拟量运动控制模块，核心优势为 G 语言多任务编程、高速响应与灵活插补能力，适用于机床、绕线机及专用加工设备的精密多轴控制。
Omron CS1W-MC421 运动控制模块 英文介绍
Omron CS1W-MC421
Product features (5 items)
The motion control module belongs to the Omron CS1 series high-performance I/O unit, which adopts analog output and semi closed loop control mode, and can control up to 4-axis servo drive.
Built in G language programming, supports multitasking function, and each axis can independently run independent programs to achieve linear interpolation, arc interpolation, and spiral interpolation.
From the CPU unit issuing the startup command to the module response, it takes about 8ms for 2-axis and about 12ms for 4-axis. The encoder response frequency reaches 4 times 2Mpps, which is suitable for high-speed and high-precision servo motors.
Supports synchronous control functions such as electronic gears, electronic camshafts, and virtual axes. When positioning is completed or passes through a designated position, it can output a D code interrupt to the CPU to achieve high-speed interlocking.
A single CPU can install up to 19 4-axis modules, achieving multi axis control of up to 76 axes (within the power capacity range).
Application areas (10 items)
Transformer insulation pad CNC machining production line (6-axis servo control)
Multi axis interpolation control of machine tool numerical control system
Synchronization and electronic cam control of winding machines and coiling equipment
Multi axis positioning and handling control of automated assembly lines
Multi axis synchronous action control of packaging machinery
G language motion programming control for specialized processing equipment
Trajectory machining equipment requiring arc/spiral interpolation
High speed and high-precision servo positioning platform
Maintenance and replacement of the old CS1 system motion control unit
Practical operation of motion control module in teaching and maintenance training
Summary: Omron CS1W-MC421 is a 4-axis analog motion control module for CS1 series PLC. Its core advantages include G-language multitasking programming, high-speed response, and flexible interpolation capabilities. It is suitable for precision multi axis control of machine tools, winding machines, and specialized processing equipment.

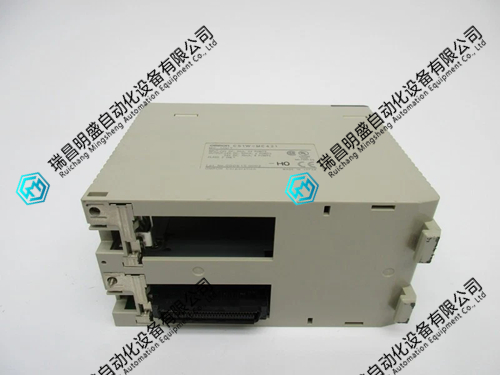

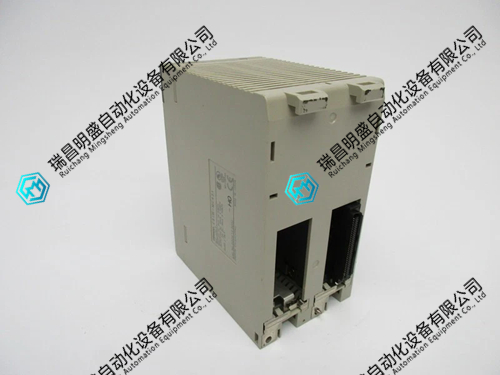

Omron CS1W-MC421 运动控制模块 产品图片
