Acumen Cognex 801-8120-01 200-0097-2 PCI 图像采集卡 PDF资料
Cognex 801-8120-01 / 200-0097-2
产品特点（5条）
属于康耐视 MVS-8100 系列 PCI 图像采集卡，零件号 801-8120-01，板载芯片标识 200-0097-2 REV.C。
基于 PCI 总线，用于主机 PC 的机器视觉图像采集与处理，搭配康耐视视觉软件库使用。
支持快速图像传输与流水线处理，板载显示端口及自动灯光控制功能。
该型号已停产，目前主要在备件市场以新老库存形式流通。
实物为 PCB 板卡形态，适配工业 PC 内部 PCI 插槽。
应用领域（10条）
工业自动化产线的机器视觉检测
制造过程中的引导、对准与定位
产品质量检查与测量应用
电子组装与元件识别
自动化分拣系统的图像采集
机器人视觉引导
老旧康耐视 MVS-8100 视觉系统维修替换
系统集成商视觉方案搭建
OEM 设备视觉模块备件
停产视觉设备的延寿维护
总结：Cognex 801-8120-01 是 MVS-8100 系列 PCI 图像采集卡，用于主机式机器视觉图像采集，目前已停产，主要作为旧系统维修备件使用
Acumen Cognex 801-8120-01 200-0097-2 PCI 图像采集卡 英文介绍
Cognex 801-8120-01 / 200-0097-2
Product features (5 items)
Belonging to the Kangnaishi MVS-8100 series PCI image acquisition card, part number 801-8120-01, with onboard chip identification 200-0097-2 REV. C.
Based on the PCI bus, it is used for machine vision image acquisition and processing on the host PC, in conjunction with the Cognex Vision software library.
Support fast image transmission and pipeline processing, onboard display port and automatic lighting control function.
This model has been discontinued and is currently mainly circulating in the spare parts market in the form of new and old inventory.
The physical object is in the form of a PCB board, compatible with the internal PCI slot of industrial PCs.
Application areas (10 items)
Machine Vision Inspection of Industrial Automation Production Lines
Guidance, alignment, and positioning during the manufacturing process
Application of Product Quality Inspection and Measurement
Electronic assembly and component identification
Image acquisition of automated sorting system
Robot vision guidance
Repair and replacement of the old Cognex MVS-8100 visual system
Visual solution construction for system integrators
OEM equipment vision module spare parts
Extended life maintenance of discontinued visual equipment
Summary: Cognex 801-8120-01 is an MVS-8100 series PCI image acquisition card used for mainframe machine vision image acquisition. It has been discontinued and is mainly used as a spare part for old system maintenance

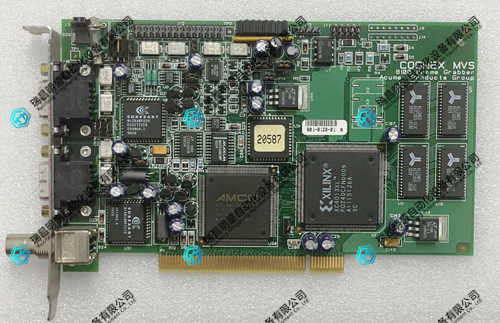

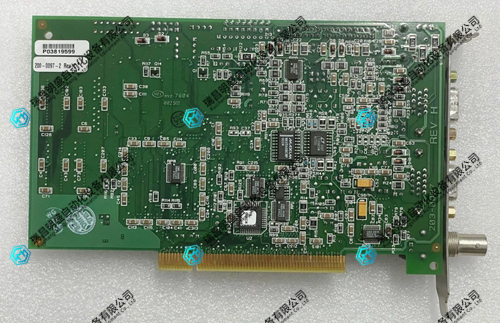

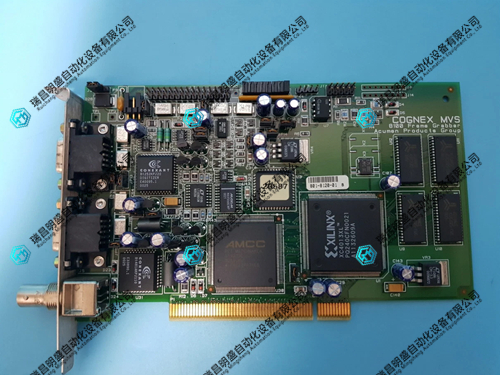

Acumen Cognex 801-8120-01 200-0097-2 PCI 图像采集卡 产品图片
