Oregon OMS VME8 SPC0008 37083-103 VME 总线 8 轴运动控制卡 PDF资料
Oregon OMS VME8 SPC0008 37083-103 VME 总线 8 轴运动控制卡
产品特点
OMS VME8 是 Oregon Micro Systems 推出的 VME 总线步进电机控制器，可控制 8 轴步进电机（无编码器反馈）。
采用短地址空间，基地址以 16 字节边界对齐（如 0xFC00）。
通过 ASCII 字符命令进行编程控制，支持点动、回零、限位等标准运动指令。
早期批次存在与 MVME167 CPU 板的兼容性问题，需升级 PAL 芯片（BUS4G B 版本）解决。
板卡为 6U VME 规格，通过 P1/P2 连接器与背板通信。
应用领域
同步辐射光束线步进电机控制
实验物理装置多轴定位系统
工业自动化 VME 架构运动控制
老旧 VME 系统步进电机驱动升级
科研仪器多轴扫描平台
半导体设备晶圆台控制
光学平台精密位移控制
存量 VME 运动控制卡维修替换
EPICS 控制系统集成
实验室多轴步进电机群控
总结： Oregon OMS VME8 是一款 VME 总线 8 轴步进电机控制卡，以 ASCII 命令编程、短地址空间寻址为特点，主要用于同步辐射光束线及科研装置的多轴步进定位场景。早期批次需注意 PAL 芯片版本兼容性。
Oregon OMS VME8 SPC0008 37083-103 VME 总线 8 轴运动控制卡 英文介绍
Oregon OMS VME8 SPC0008 37083-103 VME Bus 8-Axis Motion Control Card
Product Features
OMS VME8 is a VME bus stepper motor controller launched by Oregon Micro Systems, which can control 8-axis stepper motors (without encoder feedback).
Using a short address space, the base address is aligned with a 16 byte boundary (such as 0xFC00).
Program control through ASCII character commands, supporting standard motion instructions such as jog, zero return, and limit.
There is a compatibility issue with the MVME167 CPU board in the early batches, which needs to be resolved by upgrading the PAL chip (BUS4G B version).
The board is of 6U VME specification and communicates with the backplane through P1/P2 connectors.
Application Areas
Synchrotron radiation beamline stepper motor control
Multi axis positioning system for experimental physics equipment
Industrial Automation VME Architecture Motion Control
Upgrading the stepper motor drive of the old VME system
Multi axis scanning platform for scientific research instruments
Semiconductor equipment wafer stage control
Precision displacement control of optical platform
Maintenance and replacement of existing VME motion control cards
EPICS Control System Integration
Laboratory multi axis stepper motor group control
Summary: Oregon OMS VME8 is a VME bus 8-axis stepper motor control card, characterized by ASCII command programming and short address space addressing. It is mainly used for multi axis stepper positioning scenarios of synchrotron radiation beamlines and scientific research devices. Early batches should pay attention to PAL chip version compatibility.

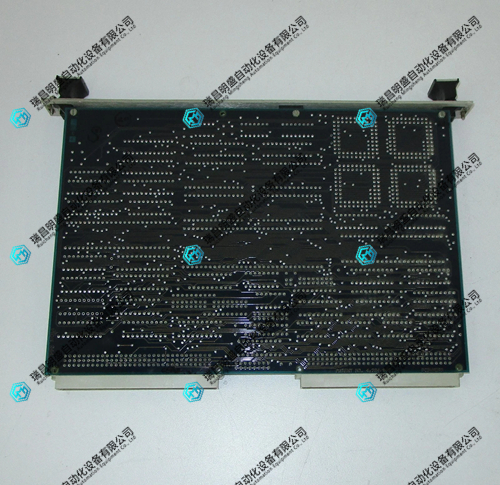

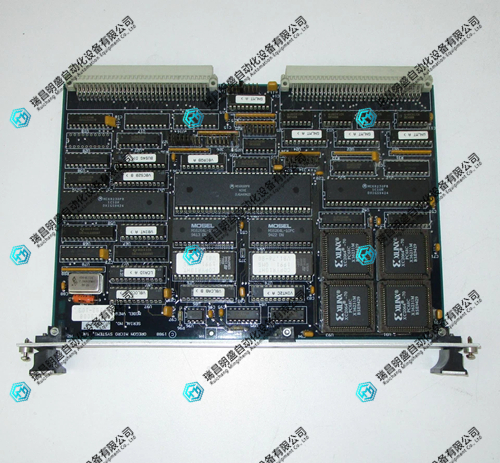

Oregon OMS VME8 SPC0008 37083-103 VME 总线 8 轴运动控制卡 产品图片
