GSI 281.5575.01 U-SSIB-AIOB激光模拟量 IO 接口板 PDF资料

1.产 品 资 料 介 绍：

GSI 281.5575.01 U-SSIB-AIOB 激光模拟量 IO 接口板

产品特点

1. 属于 GSI 激光系统配套的模拟量接口板，型号对应 U-SSIB-AIOB。

2. GSI 激光器采用模拟量调功方式，规范为 0~10VDC，这块板子负责该接口功能。

3. 负责数控系统与激光器之间的模拟信号传递，把功率指令转给激光器。

4. GSI 设备手册明确模拟输入信号不得超过 +10VDC，否则会损坏模拟输入器件。

5. 板卡级备件，装在 GSI 激光设备电控柜里，跟系统背板配套使用。

6. 模拟量满幅 +10V 通常对应激光功率 100% 输出。

7. 输入信号减半（如 +5V）时，对应功率输出也按比例减半。

8. 市面流通以拆机件和维修备件为主，功能正常才出。

9. 接口板在系统中起信号隔离与传递作用，不直接处理高压或大电流。

10. 板卡插拔式安装，替换时按原槽位对位插回即可。

应用领域

1. GSI 激光切割/焊接设备模拟量功率控制

2. 数控系统与 GSI 激光器之间的信号接口

3. 激光功率 0~10V 模拟量调功回路

4. GSI 激光设备电控柜维修替换

5. 老旧 GSI 激光系统翻新改造配套

总结
GSI 281.5575.01 U-SSIB-AIOB 是 GSI 激光设备里管模拟量 IO 的接口板，主要用来传递 0~10V 功率控制信号，满幅对应满功率输出。

GSI 281.5575.01 U-SSIB-AIOB激光模拟量 IO 接口板   英文介绍

GSI 281.5575.01 U-SSSIB-AIOB Laser Analog IO Interface Board

Product Features

It belongs to the analog interface board that is compatible with GSI laser system, and the model corresponds to U-SSSIB-AIOB.

The GSI laser adopts analog power modulation method, with a specification of 0~10VDC. This board is responsible for the interface function.

Responsible for analog signal transmission between the CNC system and the laser, and transferring power commands to the laser.

The GSI equipment manual specifies that the analog input signal must not exceed+10VDC, otherwise it may damage the analog input device.

Board level spare parts are installed in the electrical control cabinet of GSI laser equipment and used in conjunction with the system backplane.

Analog full amplitude+10V usually corresponds to 100% output of laser power.

When the input signal is halved (such as+5V), the corresponding power output is also halved proportionally.

The market circulation mainly consists of disassembled parts and maintenance spare parts, which only come out when their functions are normal.

The interface board plays a role in signal isolation and transmission in the system, and does not directly handle high voltage or high current.

Plug in installation of the board, when replacing it, simply align it with the original slot and insert it back.

Application Areas

GSI laser cutting/welding equipment analog power control

Signal interface between CNC system and GSI laser

Laser power 0~10V analog power adjustment circuit

GSI laser equipment electrical control cabinet maintenance and replacement

Renovation and renovation of old GSI laser system supporting facilities

Summary

GSI 281.5575.01 U-SSSIB-AIOB is an interface board for analog IO in GSI laser equipment, mainly used to transmit 0-10V power control signals, with full amplitude corresponding to full power output.

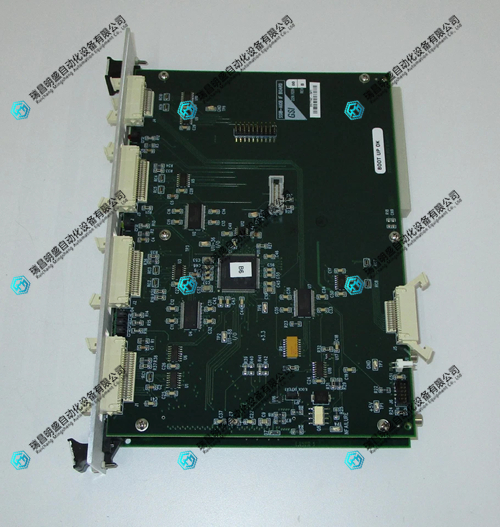

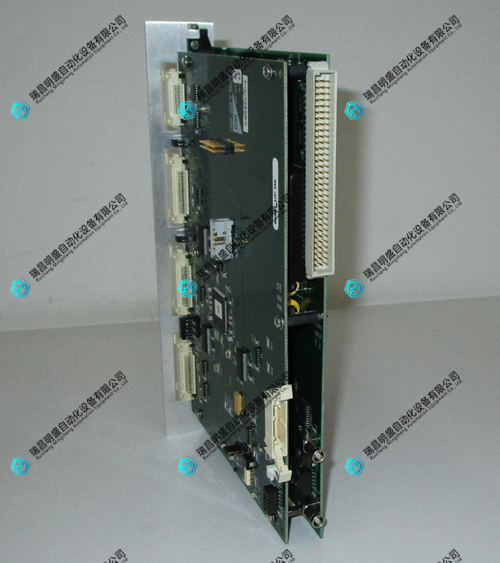

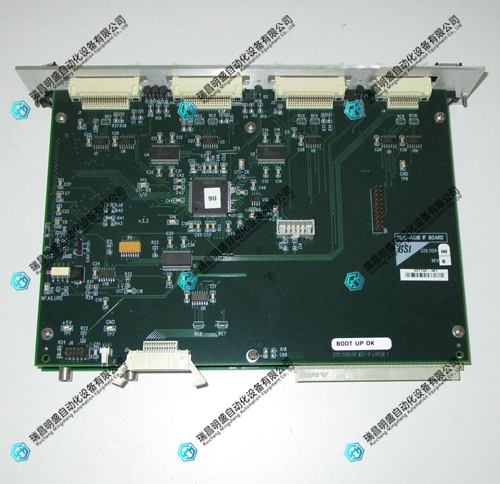

GSI 281.5575.01 U-SSIB-AIOB激光模拟量 IO 接口板  产品图片
