Yaskawa JZRCR-XSU01伺服控制器 PDF资料
Yaskawa JZRCR-XSU01 伺服控制器
产品特点
属于安川 XRC 机器人控制系统的板卡级组件，跟 XRC 柜体直接配套用。
支持最多 16 路数字 I/O 点，信号通道数量够用。
带集成通信接口，跟系统背板对接方便。
供电规格 200–240V，匹配 XRC 控制柜的工业供电环境。
作为伺服驱动板卡，用于安川伺服电机的精确控制。
板卡式插拔结构，替换时按原槽位插就行，不用改线。
工业级设计，抗干扰能力满足机器人控制柜现场环境。
跟 XRC 系统固件配套，装上去系统能直接识别。
市面流通以拆机件和翻新件为主，功能正常才出。
适合维修替换场景，不是全新原厂包装件。
应用领域
安川 XRC 机器人控制系统维修替换
Motoman 系列机器人伺服轴驱动
工业机器人控制柜板卡级备件
机器人数字 I/O 信号处理与通信
老旧 XRC 系统翻新改造配套
总结
Yaskawa JZRCR-XSU01 是 XRC 机器人控制系统里的伺服控制板卡，管数字 I/O 和伺服驱动，主要用在安川 Motoman 系列机器人的维修替换和产线备件上
Yaskawa JZRCR-XSU01伺服控制器 英文介绍
Yaskawa JZRCR-XSU01 servo controller
Product Features
A board level component belonging to the Yaskawa XRC robot control system, directly compatible with the XRC cabinet.
Supports up to 16 digital I/O points, with sufficient signal channels.
Equipped with an integrated communication interface, it is easy to connect with the system backplane.
Power supply specification 200-240V, compatible with industrial power supply environment of XRC control cabinet.
As a servo drive board, it is used for precise control of Yaskawa servo motors.
Board type plug-in structure, when replacing, simply plug it into the original slot without changing the wiring.
Industrial grade design with anti-interference capability to meet the on-site environment of robot control cabinets.
Paired with XRC system firmware, it can be directly recognized by the system when installed.
The market circulation mainly consists of disassembled and refurbished parts, which only come out when their functions are normal.
Suitable for repair and replacement scenarios, not brand new original packaging.
Application Areas
Repair and replacement of Yaskawa XRC robot control system
Motoman series robot servo axis drive
Industrial robot control cabinet board level spare parts
Robot Digital I/O Signal Processing and Communication
Renovation and renovation of old XRC system supporting facilities
Summary
Yaskawa JZRCR-XSU01 is a servo control board in the XRC robot control system, which manages digital I/O and servo drives. It is mainly used for maintenance and replacement of Yaskawa Motoman series robots, as well as production line spare parts

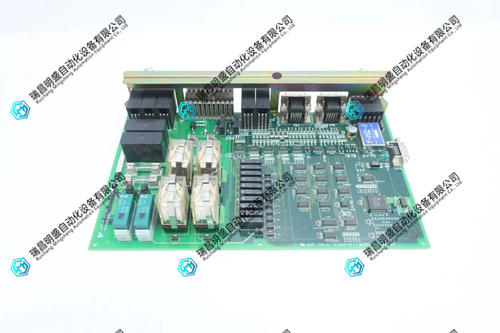

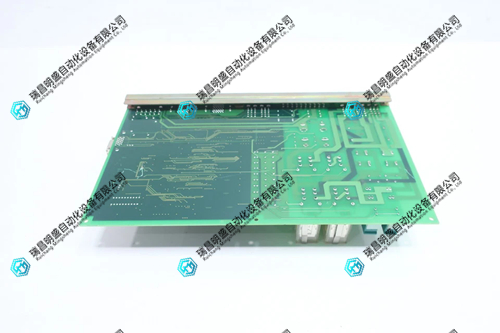

Yaskawa JZRCR-XSU01伺服控制器 产品图片
