ETEL DSB2S234-111E-000H数字伺服放大器  PDF资料

1.产 品 资 料 介 绍：

ETEL DSB2S234-111E-000H 数字伺服放大器

产品特点

1. 带安全扭矩关断（STO）和安全停止1（SS1）功能，符合 SIL 2 / PL d 安全等级，能直接嵌进安全回路里用。

2. 连续输出 5 A、峰值 10 A，供电 200–240 VAC 单相，带增量式和绝对值编码器接口。

3. 内置动态制动，支持模拟量和脉冲串指令接口，面板安装紧凑设计。

4. 保护齐全，过流、过压、过温、短路都管，诊断 LED 分驱动和安全状态两路显示。

5. 安全功能减少外部安全继电器用量，系统接线简化，适合对人身防护要求高的场合。

应用领域

1. 协作机器人关节驱动控制

2. 带安全防护罩的包装机械

3. 自动化物料搬运系统

4. 压机送料系统安全轴控

5. AGV 驱动与转向控制

6. 需要 Category 3/4 安全回路的设备集成

7. 单轴精密定位平台

8. 增量/绝对值编码器反馈的伺服轴

9. 老旧 ETEL 驱动系统替换维修

10. 工业自动化产线安全轴备件

总结
ETEL DSB2S234-111E-000H 是 DSB2S 系列里带 STO/SS1 安全功能的伺服放大器，5A 连续/10A 峰值，单相 200–240VAC 供电。主要用在协作机器人、包装机械、AGV 这类对安全回路有硬性要求的设备上，通过内置安全功能减少外置继电器，把驱动和安全控制合在一处。

ETEL DSB2S234-111E-000H数字伺服放大器   英文介绍

ETEL DSB2S234-111E-000H Digital Servo Amplifier

Product Features

Equipped with Safety Torque Off (STO) and Safety Stop 1 (SS1) functions, in compliance with SIL 2/PL d safety level, it can be directly integrated into the safety circuit for use.

Continuous output of 5 A, peak value of 10 A, power supply of 200-240 VAC single-phase, with incremental and absolute encoder interfaces.

Built in dynamic braking, supporting analog and pulse train command interfaces, compact panel installation design.

Fully protected, over-current, over-voltage, over temperature, and short circuit are all managed, and the diagnostic LED is divided into driver and safety status display channels.

The safety function reduces the use of external safety relays, simplifies system wiring, and is suitable for occasions with high requirements for personal protection.

Application Areas

Joint drive control of collaborative robots

Packaging machinery with safety protection cover

automated material handling system

Safety axis control of press feeding system

AGV Drive and Steering Control

Equipment integration for Category 3/4 safety circuits is required

Single axis precision positioning platform

Servo axis feedback from incremental/absolute encoder

Replacement and maintenance of old ETEL drive system

Spare parts for safety shafts in industrial automation production lines

Summary

ETEL DSB2S234-111E-000H is a servo amplifier with STO/SS1 safety function in the DSB2S series, with 5A continuous/10A peak and single-phase power supply of 200-240VAC. Mainly used in collaborative robots, packaging machinery, AGVs and other equipment that have strict requirements for safety circuits, reducing external relays through built-in safety functions, and integrating drive and safety control in one place.

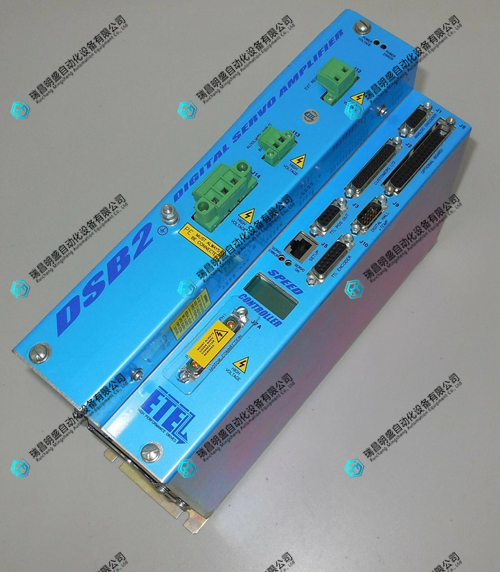

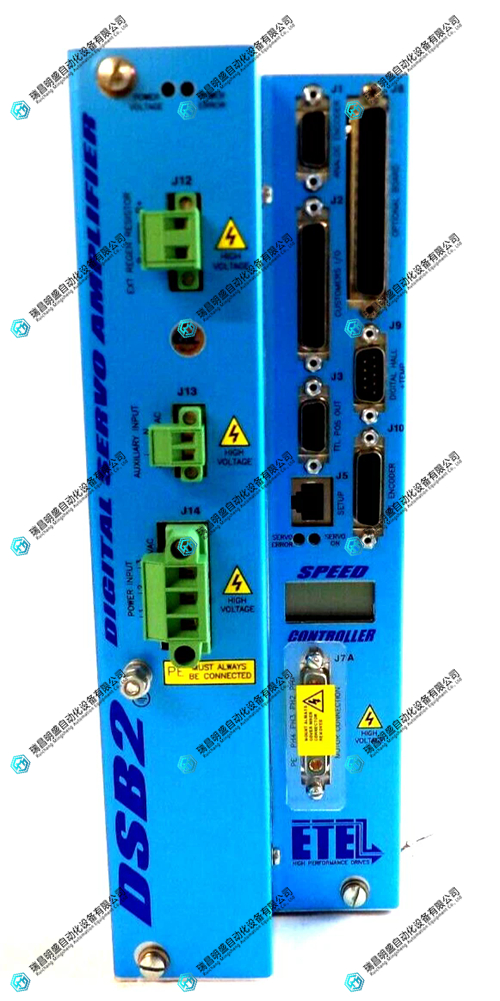

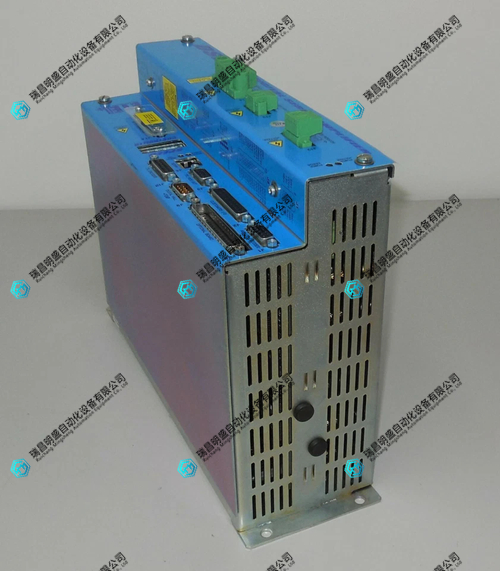

ETEL DSB2S234-111E-000H数字伺服放大器  产品图片
