Xilinx HW-S6T-SP605评估开发板 PDF资料

1.产 品 资 料 介 绍：

Xilinx HW-S6T-SP605 评估开发板

产品特点

1. 核心搭载 Spartan-6 XC6SLX45T-FGG484 FPGA，逻辑资源 43,661 个逻辑单元。

2. 板载 128MB DDR3 内存，配合 Spartan-6 硬核内存控制器使用。

3. 带 FMC LPC 扩展连接器，方便接 AD/DA、图像等子卡做定制扩展。

4. 集成千兆以太网、PCIe x1、DVI/VGA 视频输出和 GTP 收发器接口。

5. 原厂套件含 ISE Design Suite Logic Edition 和预验证参考设计，开箱就能跑。

应用领域

1. 高速串行收发器（GTP）协议验证与开发

2. 千兆以太网通信与网络设备原型

3. PCIe x1 数据传输系统演示与评估

4. 视频图像处理与 DVI/VGA 显示应用

5. 嵌入式 MicroBlaze 处理器系统开发

6. 音频/信号处理算法硬件加速验证

7. FMC 子卡扩展（AD/DA、CameraLink 等）

8. 无线通信基带处理原型验证

9. 汽车电子与工业控制逻辑评估

10. 高校 FPGA 教学与 Spartan-6 平台实验

总结
Xilinx HW-S6T-SP605 是 Spartan-6 系列里扩展性比较全的一块评估板，FMC 接口和 GTP 收发器让它适合做协议验证和子卡扩展

Xilinx HW-S6T-SP605评估开发板  英文介绍

Xilinx HW-S6T-SP605 Evaluation and Development Board

Product Features

The core is equipped with Spartan-6 XC6SLX45T-FGG484 FPGA, with a logic resource of 43661 logic units.

Onboard 128MB DDR3 memory, used in conjunction with Spartan-6 hard core memory controller.

Equipped with FMC LPC expansion connector, it is convenient to connect sub cards such as AD/DA and graphics for customized expansion.

Integrated Gigabit Ethernet, PCIe x1, DVI/VGA video output, and GTP transceiver interface.

The original kit includes ISE Design Suite Logic Edition and pre validated reference design, which can be run right out of the box.

Application Areas

Verification and Development of High Speed Serial Transceiver (GTP) Protocol

Gigabit Ethernet Communication and Network Equipment Prototype

PCIe x1 Data Transmission System Demonstration and Evaluation

Video Image Processing and DVI/VGA Display Applications

Development of Embedded MicroBlaze Processor System

Hardware acceleration verification of audio/signal processing algorithms

FMC Subcard Expansion (AD/DA, CameraLink, etc.)

Prototype verification of wireless communication baseband processing

Automotive Electronics and Industrial Control Logic Evaluation

FPGA Teaching in Universities and Spartan-6 Platform Experiment

Summary

Xilinx HW-S6T-SP605 is an evaluation board with comprehensive scalability in the Spartan-6 series. Its FMC interface and GTP transceiver make it suitable for protocol verification and daughter card expansion

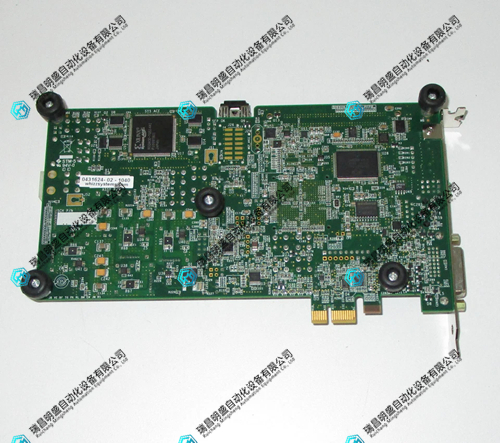

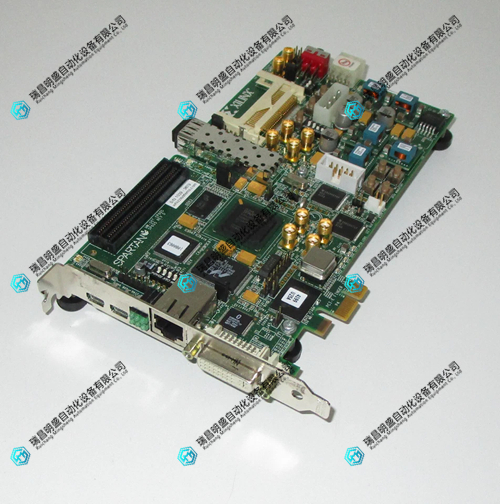

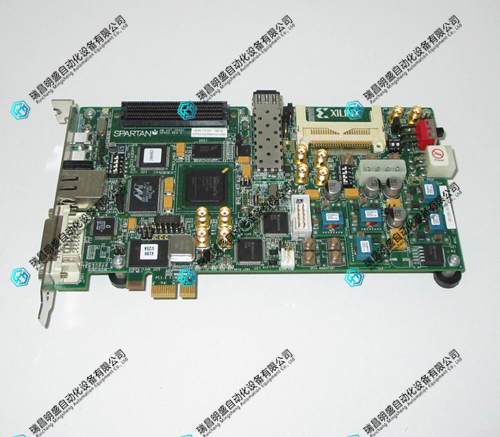

Xilinx HW-S6T-SP605评估开发板 产品图片
