Barco 5MP1H NT KM57000010显示系统模块 PDF资料
Barco 5MP1H NT KM57000010 显示系统模块
产品特点（5条）
单头5MP医疗显示控制器，专为高分辨率灰阶医疗影像设计，最大分辨率2048×2560。
板载12位图像处理，支持1024级同步灰阶显示。
完整图像存于板载16MB内存，实时窗宽窗位调节不占用主机CPU。
标准PCI接口单槽板卡，PCI本地总线Rev 2.1。
已停产的老款医疗显示卡，目前流通多为库存件或拆机件。
应用领域（10条）
Barco MeDis 5MP医疗显示系统配套。
PACS影像工作站高分辨率灰阶显示。
放射科阅片室诊断显示器驱动。
乳腺钼靶影像高灰阶显示。
CT/MR影像灰阶软拷贝阅读。
需要5MP分辨率的老式医疗诊断工位。
医院影像系统中Barco控制器维修替换。
Windows NT/2000/XP平台医疗影像工作站。
单色医疗显示器信号驱动。
老旧Barco 5MP显示系统备件周转。
总结：5MP1H NT KM57000010是BarcoMed 5MP1H医疗显示控制器的备件料号，一块PCI接口灰阶显示板卡，用于驱动5MP医疗显示器，主打1024级灰阶和板载图像处理
Barco 5MP1H NT KM57000010显示系统模块 英文介绍
Barco 5MP1H NT KM5700010 Display System Module
Product features (5 items)
Single head 5MP medical display controller, designed specifically for high-resolution grayscale medical imaging, with a maximum resolution of 2048 × 2560.
Onboard 12 bit image processing, supporting 1024 level synchronous grayscale display.
The complete image is stored in the onboard 16MB memory, and real-time window width and level adjustment does not occupy the host CPU.
Standard PCI interface single slot board, PCI local bus Rev 2.1.
The old medical display cards that have been discontinued are currently mostly in stock or disassembled parts in circulation.
Application areas (10 items)
Barco MeDis 5MP medical display system supporting.
High resolution grayscale display on PACS imaging workstation.
Diagnostic display driver for radiology reading room.
High grayscale display of mammography images of the breast.
CT/MR grayscale softcopy reading.
An old-fashioned medical diagnostic workstation that requires a resolution of 5MP.
Maintenance and replacement of Barco controller in hospital imaging system.
Windows NT/2000/XP platform medical imaging workstation.
Single color medical display signal driver.
Spare parts turnover for the old Barco 5MP display system.
Summary: 5MP1H NT KM5700010 is a spare part number for BarcoMed 5MP1H medical display controller. It is a PCI interface grayscale display board used to drive 5MP medical displays, with a focus on 1024 level grayscale and onboard image processing

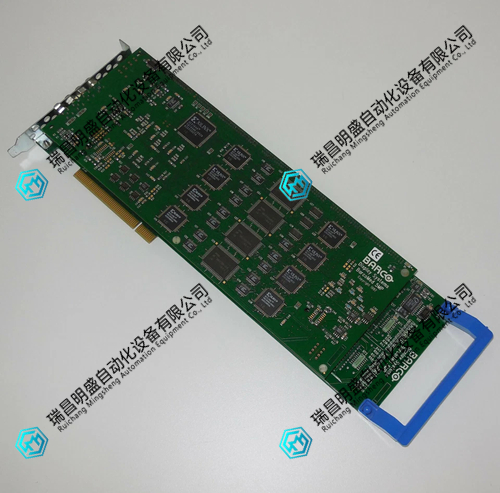

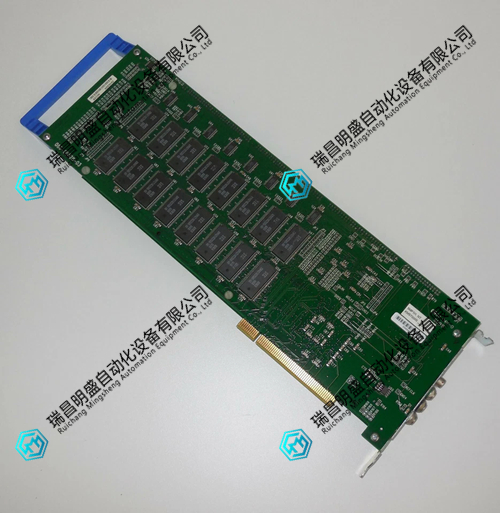

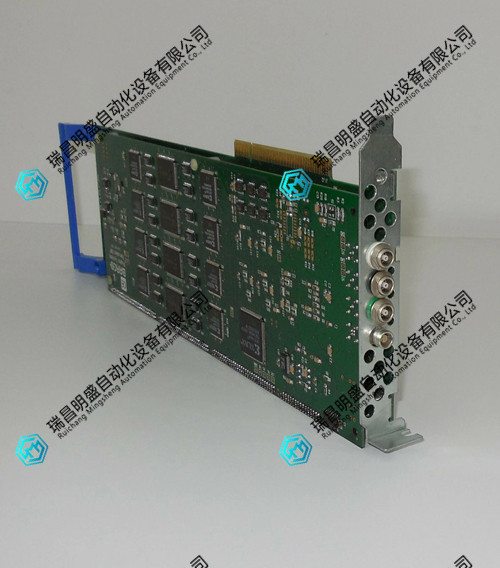

Barco 5MP1H NT KM57000010显示系统模块 产品图片
