ETEL DSO-PWS121-003 673679-01电源模块 PDF资料
ETEL DSO-PWS121-003 673679-01 电源模块
产品特点（5条）
这玩意儿是给ETEL运动控制系统供电的，把交流电转成直流母线电压，喂给伺服放大器那些驱动部件。
输出565伏直流，连续功率3.5千瓦，连续电流6.2安，峰值能到9安。
效率挺高，典型值超过95%，输入200到480伏交流，带主动功率因数校正。
保护功能齐全，过压、欠压、过流、过温、短路都管，最多能四台并联一起用。
紧凑型DIN导轨安装，自带风扇强制风冷，有LED状态灯和远程监控继电器触点。
应用领域（10条）
多轴伺服系统的集中直流供电。
半导体制造里直线电机平台的供电。
机器人工作单元控制器和辅助轴供电。
测试测量设备的精密仪器供电。
ETEL伺服驱动器的配套电源链路。
工业运动控制柜里生成直流母线。
需要高稳定直流电源的自动化产线。
并联冗余供电架构里的功率模块单元。
老旧ETEL驱动系统的电源备件替换。
空间紧张的电控箱里做高效电源集成。
总结：DSO-PWS121-003是ETEL DSO-PWS系列里的大功率直流电源模块，给伺服驱动系统提供565伏直流母线电压，效率高还能并联扩展，适合半导体设备和精密运动控制场景的供电和备件替换。
ETEL DSO-PWS121-003 673679-01电源模块 英文介绍
ETEL DSO-PWS121-003 673679-01 power module
Product features (5 items)
This thing is used to power the ETEL motion control system, converting AC power into DC bus voltage and feeding it to the drive components of the servo amplifier.
Output 565 volts DC, continuous power of 3.5 kilowatts, continuous current of 6.2 amperes, peak value up to 9 amperes.
The efficiency is quite high, with a typical value of over 95%, input of 200 to 480 volts AC, and equipped with active power factor correction.
The protection function is complete, including overvoltage, undervoltage, overcurrent, overtemperature, and short circuit, and can be used in parallel with up to four devices.
Compact DIN rail installation, equipped with a fan for forced air cooling, LED status lights, and remote monitoring relay contacts.
Application areas (10 items)
Centralized DC power supply for multi axis servo system.
Power supply for linear motor platforms in semiconductor manufacturing.
Robot work unit controller and auxiliary axis power supply.
Precision instrument power supply for testing and measuring equipment.
The supporting power supply link for ETEL servo drive.
Generate DC bus in the industrial motion control cabinet.
An automated production line that requires a highly stable DC power supply.
The power module unit in the parallel redundant power supply architecture.
Replacement of power spare parts for the old ETEL drive system.
Efficient power integration in a space constrained electrical control box.
Summary: DSO-PWS121-003 is a high-power DC power module in the ETEL DSO-PWS series, providing a 565 volt DC bus voltage to servo drive systems. It has high efficiency and can be expanded in parallel, making it suitable for power supply and spare parts replacement in semiconductor equipment and precision motion control scenarios.

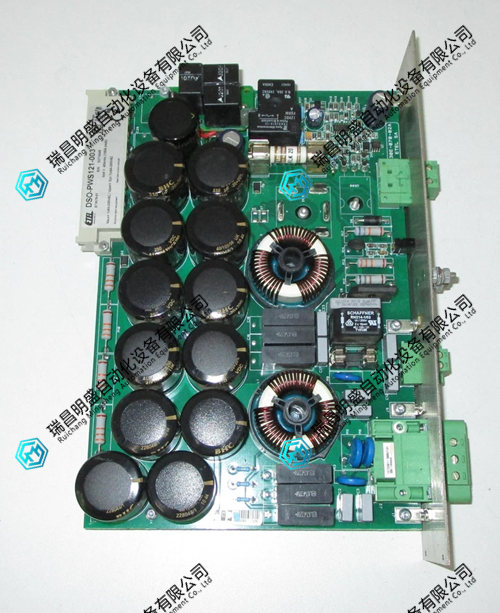

ETEL DSO-PWS121-003 673679-01电源模块 产品图片
