Schott ARC-MaVi-S-II 光源控制器 PDF资料
Schott ARC-MaVi-S-II 光源控制器
产品特点（5条）
适配MaVi-S系列氙灯闪光光源，提供高强度短脉冲光输出控制。
支持面板、RS-232计算机接口及模拟量输入三种亮度调节方式。
闪光频率范围1 Hz至200 Hz，脉冲宽度约6 μs，适用于高速运动样品的图像捕捉。
具备脉冲串功能，单次触发可产生多次闪光。
支持最多9台MaVi-S光源的计算机联网控制，供电范围100–260 V宽压输入。
应用领域（10条）
晶圆表面缺陷检测。
瓶类容器外观与液位检测。
矩阵码/条码高速读取。
钻石品质与瑕疵检验。
工业图像处理中的高速频闪照明。
运动样品瞬态图像捕捉。
配合光纤导光束的机器视觉照明系统。
自动化产线在线视觉检测工位。
高速摄像机同步补光。
多光源协同的复杂照明场景控制。
总结：该控制器是Schott MaVi-S氙灯频闪光源系统的核心驱动单元，通过灵活的触发与亮度调节机制，为工业视觉检测提供高对比度的短脉冲照明支持。
Schott ARC-MaVi-S-II 光源控制器 英文介绍
Schott ARC-MaVi-S-II Light Source Controller
Product features (5 items)
Compatible with MaVi-S series xenon flash light source, providing high-intensity short pulse light output control.
Supports three brightness adjustment methods: panel, RS-232 computer interface, and analog input.
The flash frequency range is 1 Hz to 200 Hz, with a pulse width of approximately 6 μ s, suitable for image capture of high-speed moving samples.
Equipped with pulse train function, a single trigger can generate multiple flashes.
Supports computer networking control for up to 9 MaVi-S light sources, with a power supply range of 100-260 V wide voltage input.
Application areas (10 items)
Surface defect detection of wafers.
Appearance and liquid level detection of bottle containers.
High speed reading of matrix code/barcode.
Diamond quality and defect inspection.
High speed strobe lighting in industrial image processing.
Transient image capture of motion samples.
Machine vision lighting system with fiber optic guided beam.
Automated production line online visual inspection workstation.
High speed camera synchronized supplementary lighting.
Multi light source collaborative control for complex lighting scenes.
Summary: This controller is the core driving unit of the Schott MaVi-S xenon flash light source system, providing high contrast short pulse illumination support for industrial visual inspection through flexible triggering and brightness adjustment mechanisms.

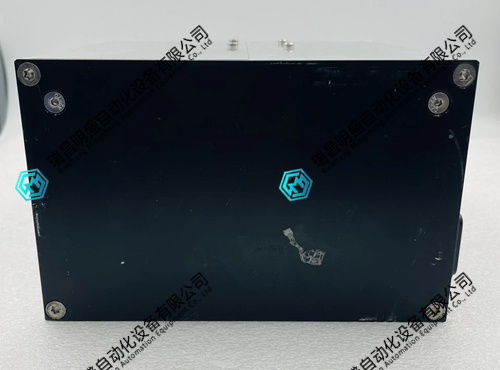

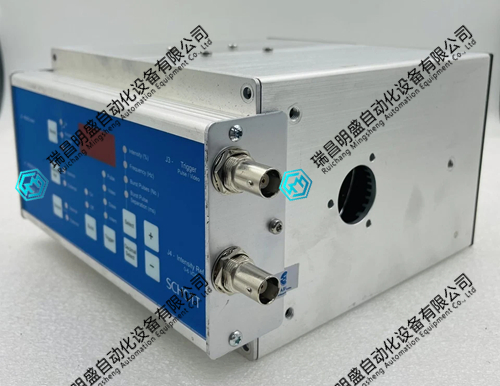

Schott ARC-MaVi-S-II 光源控制器 产品图片
