Xilinx VIRTEX-5 ML505-ML509驱动器主板 PDF资料
Xilinx Virtex-5 ML505 / ML509 是赛灵思（Xilinx）推出的 Virtex-5 系列 FPGA 评估与开发平台。ML505 与 ML509 在原理图和 PCB 上基本一致，主要区别在于搭载的 FPGA 芯片型号不同：ML505 通常搭载 XC5VLX50T，ML509 搭载资源更丰富的 XC5VLX110T。
产品特点（5条）
双型号同板设计：共用原理图与 PCB，仅 FPGA 芯片不同，便于按资源需求切换。
高速接口验证：板载 GTP 收发器，引出 SFP、SATA、SMA 等接口。
存储配置多样：DDR2 SODIMM、ZBT SRAM、Platform Flash、System ACE CF 并存。
标准外设齐全：PCIe x1、千兆以太网、USB、DVI/VGA、RS-232、SATA 等接口齐备。
软硬件协同友好：支持 MicroBlaze、PowerPC 等嵌入式方案，便于 SoC 原型开发。
产品应用领域（10条）
高速串行协议开发与验证（GTP / Aurora / PCIe）
嵌入式处理器系统设计（MicroBlaze / PowerPC）
数字信号处理与图像处理原型验证
网络通信设备开发（千兆以太网）
视频采集与显示处理系统
存储接口验证（DDR2、SRAM、Flash）
大学教学与 FPGA 实验平台
工业控制与数据采集系统原型
航空航天与国防电子系统快速原型
SoC 验证与软硬件协同开发
结尾
Xilinx Virtex-5 ML505 / ML509 是同板设计的两款 FPGA 评估板，ML505 适合常规开发与教学，ML509 凭借更大容量的 LX110T 芯片适合资源需求更高的原型验证项目，两者硬件兼容、便于迁移
Xilinx VIRTEX-5 ML505-ML509驱动器主板 英文介绍
Xilinx Virtex-5 ML505/ML509 is a Virtex-5 series FPGA evaluation and development platform launched by Xilinx. The ML505 and ML509 are basically the same in terms of schematic and PCB, with the main difference being the different FPGA chip models they are equipped with: ML505 usually comes with XC5VLX50T, while ML509 comes with the more resource rich XC5VLX110T.
Product features (5 items)
Dual model same board design: shared schematic and PCB, only FPGA chips are different, making it easy to switch according to resource requirements.
High speed interface verification: onboard GTP transceiver, leading out SFP, SATA, SMA and other interfaces.
Diverse storage configurations: DDR2 SODIMM, ZBT SRAM, Platform Flash, and System ACE CF coexist.
Complete standard peripherals: PCIe x1, Gigabit Ethernet, USB, DVI/VGA, RS-232, SATA and other interfaces are available.
Software and hardware collaboration friendly: Supports embedded solutions such as MicroBlaze and PowerPC, facilitating SoC prototype development.
Product application areas (10 items)
Development and Validation of High Speed Serial Protocol (GTP/Aurora/PCIe)
Embedded Processor System Design (MicroBlaze/PowerPC)
Prototype verification of digital signal processing and image processing
Development of network communication equipment (Gigabit Ethernet)
Video capture and display processing system
Storage interface verification (DDR2, SRAM, Flash)
University Teaching and FPGA Experimental Platform
Prototype of Industrial Control and Data Acquisition System
Rapid prototyping of aerospace and defense electronic systems
SoC Verification and Collaborative Development of Software and Hardware
ending
Xilinx Virtex-5 ML505/ML509 are two FPGA evaluation boards designed on the same board. ML505 is suitable for conventional development and teaching, while ML509, with its larger LX110T chip, is suitable for prototype verification projects with higher resource requirements. The two are hardware compatible and easy to migrate

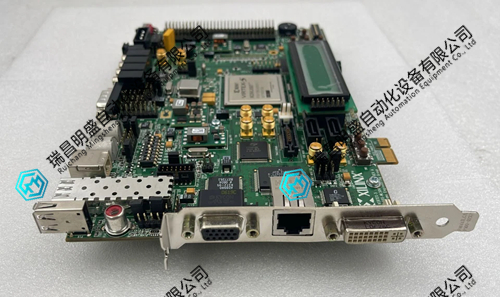

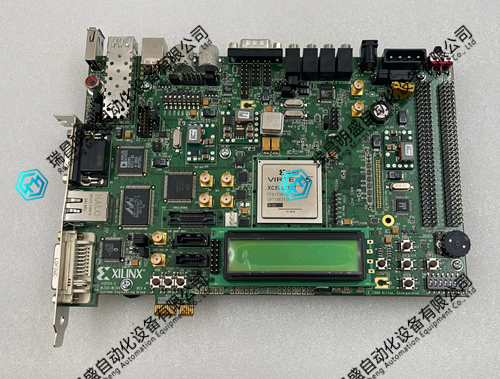

Xilinx VIRTEX-5 ML505-ML509驱动器主板 产品图片
