Siemens 6ES5946-3UA23中央处理单元  PDF资料

1.产 品 资 料 介 绍：

Siemens 6ES5946-3UA23是SIMATIC S5系列的中央处理单元（CPU），适用于S5-135U/155U多处理器系统，作为控制系统的核心，负责执行用户程序、处理逻辑运算及整体系统调度，广泛应用于制造业、过程控制、能源管理等领域。

核心产品特点

处理器类型：中央处理单元（CPU），适用于SIMATIC S5-135U/155U多处理器PLC系统

内存容量：配备256KB至512KB内存，最大可扩展至1.5MB，满足复杂控制程序的存储需求

通信接口：支持PROFIBUS-DP工业现场总线，便于与分布式I/O及上位系统进行数据交换

工作电压：24V DC标准工业电源，符合SIMATIC S5系列通用供电规范

扩展能力：支持通过S5总线连接扩展机架和I/O模块，灵活配置系统规模

多处理器支持：可在S5-135U/155U系统中与其他CPU协同工作，实现多处理器并行处理

工作温度范围：-25°C至+60°C，适应各类工业现场环境

存储温度范围：-40°C至+85°C，耐受极端运输与存储条件

防护等级IP20：适合控制柜内安装，有效防护固体异物侵入

安装方式：DIN导轨安装，结构紧凑，便于集成到控制柜中

外形尺寸：约140mm × 120mm × 80mm，轻量化设计

重量：约1.5kg，结构坚固可靠

产品状态：已停产，作为备件在二手市场流通，无直接替代型号

结尾：应用价值

该CPU模块作为SIMATIC S5-135U/155U系统的核心控制单元，凭借其多处理器协同能力、PROFIBUS-DP通信接口和灵活的扩展性能，在老旧产线维护、存量设备改造及备件替换等场景中具有重要价值，是保障S5系列大型自动化系统持续稳定运行的关键组件。

Siemens 6ES5946-3UA23中央处理单元  英文介绍

Siemens 6ES5946-3UA23 is the central processing unit (CPU) of the SIMATIC S5 series, suitable for S5-135U/155U multiprocessor systems. As the core of the control system, it is responsible for executing user programs, processing logical operations, and overall system scheduling. It is widely used in manufacturing, process control, energy management, and other fields.

Core product features

Processor type: Central Processing Unit (CPU), suitable for SIMATIC S5-135U/155U multiprocessor PLC systems

Memory capacity: equipped with 256KB to 512KB of memory, expandable up to 1.5MB, to meet the storage needs of complex control programs

Communication interface: Supports PROFIBUS-DP industrial fieldbus, facilitating data exchange with distributed I/O and upper level systems

Working voltage: 24V DC standard industrial power supply, compliant with SIMATIC S5 series general power supply specifications

Scalability: Supports connecting expansion racks and I/O modules through the S5 bus, allowing for flexible configuration of system scale

Multi processor support: It can work together with other CPUs in S5-135U/155U systems to achieve parallel processing of multiple processors

Working temperature range: -25 ° C to+60 ° C, suitable for various industrial site environments

Storage temperature range: -40 ° C to+85 ° C, resistant to extreme transportation and storage conditions

Protection level IP20: Suitable for installation inside control cabinets, effectively preventing solid foreign objects from entering

Installation method: DIN rail installation, compact structure, easy to integrate into the control cabinet

Dimensions: approximately 140mm × 120mm × 80mm, lightweight design

Weight: Approximately 1.5kg, sturdy and reliable structure

Product status: discontinued, circulating as spare parts in the second-hand market, no direct substitute models available

Conclusion: Application Value

As the core control unit of the SIMATIC S5-135U/155U system, this CPU module has important value in scenarios such as maintenance of old production lines, retrofitting of existing equipment, and replacement of spare parts, thanks to its multi processor collaboration capability, PROFIBUS-DP communication interface, and flexible expansion performance. It is a key component to ensure the continuous and stable operation of the S5 series large-scale automation system.

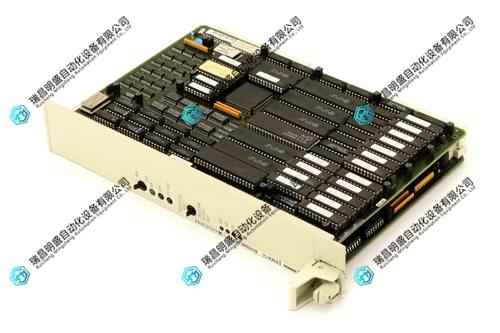

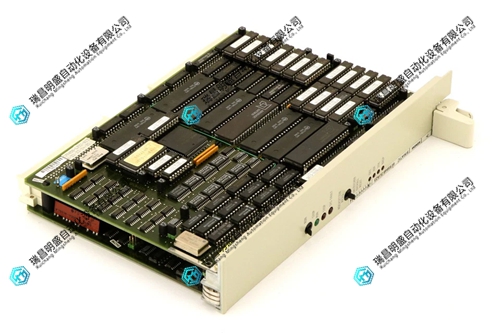

Siemens 6ES5946-3UA23中央处理单元  产品展示
