HE693RTD665A输入模块 PDF资料
1.产 品 资 料 介 绍：
HE693RTD665A 输入模块
HE693RTD665A 是 GE Fanuc（VersaMax / 90-30 相关系统）中的一款 RTD（热电阻）温度输入模块，主要用于工业现场温度信号采集，将铂电阻等温度传感器信号转换为PLC可识别的数字量数据。
1、属于RTD温度输入模块，用于采集温度信号
2、支持多种RTD传感器类型（如Pt100、Pt1000等）
3、可实现多通道温度采集，适用于集中测温系统
4、内置信号调理电路，直接完成信号放大与转换
5、支持高精度温度测量，适合工业过程控制
6、具备自动线制识别能力（常见三线制/四线制RTD）
7、具有输入滤波功能，提高抗干扰能力
8、支持断线检测功能，可识别传感器异常
9、通过PLC背板与CPU通信，实现实时数据更新
10、模块化结构设计，便于安装与更换
11、适用于90-30或同系列分布式I/O系统架构
12、抗工业环境干扰能力强，适合复杂现场应用
13、可用于多点温度集中监测系统
14、带有状态指示灯，便于运行与故障诊断
15、常用于冶金、化工、电力及设备温控系统
HE693RTD665A 输入模块在工业自动化中主要承担温度采集与信号转换功能，是实现高精度温度监测与过程控制的重要输入单元。
HE693RTD665A输入模块 英文介绍
HE693RTD665A Input Module
HE693RTD665A is an RTD temperature input module in GE Fanuc (VersaMax/90-30 related system), mainly used for temperature signal acquisition in industrial sites, converting temperature sensor signals such as platinum resistors into digital data recognizable by PLC.
1. Belonging to the RTD temperature input module, used to collect temperature signals
2. Supports multiple types of RTD sensors (such as Pt100, Pt1000, etc.)
3. Can achieve multi-channel temperature acquisition, suitable for centralized temperature measurement systems
4. Built in signal conditioning circuit, directly completes signal amplification and conversion
5. Supports high-precision temperature measurement, suitable for industrial process control
6. Capable of automatic line recognition (common three wire/four wire RTD)
7. Equipped with input filtering function to enhance anti-interference capability
8. Support wire breakage detection function, capable of identifying sensor abnormalities
9. Real time data updates achieved through communication between PLC backplane and CPU
10. Modular structure design, easy to install and replace
11. Suitable for distributed I/O system architectures of 90-30 or the same series
12. Strong resistance to industrial environmental interference, suitable for complex on-site applications
13. Can be used for multi-point temperature centralized monitoring system
14. Equipped with status indicator lights for easy operation and fault diagnosis
15. Commonly used in metallurgy, chemical industry, power and equipment temperature control systems
The HE693RTD665A input module is mainly responsible for temperature acquisition and signal conversion functions in industrial automation, and is an important input unit for achieving high-precision temperature monitoring and process control.

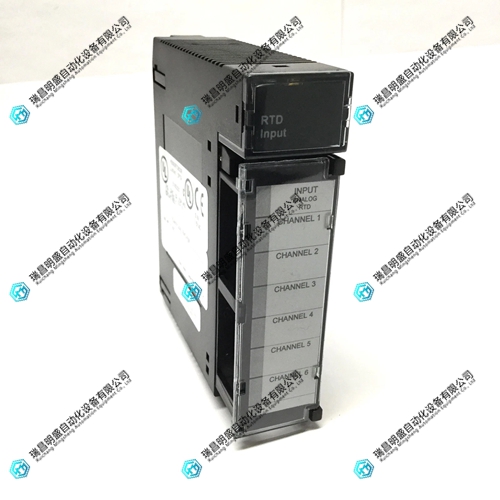

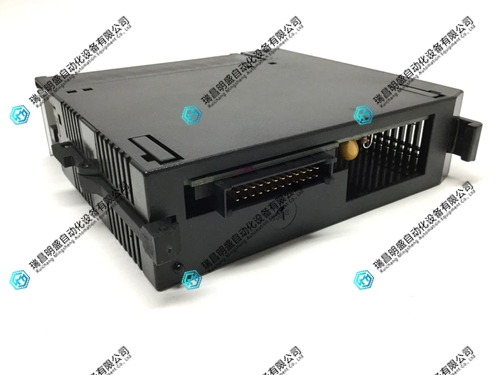

HE693RTD665A输入模块 产品展示
