IS220PAICH2A 模拟输入/输出
1.产 品 资 料 介 绍：
中文资料：
IS220PAICH2A模拟输入/输出模块是一款由通用电气（General Electric）公司开发的设备，属于Mark VIe Speedtronic控制系统的一部分。以下是关于该模块的详细信息和特点：
- 概述：
- IS220PAICH2A是一个模拟I/O模块，用于连接现场设备与控制系统，实现模拟信号的输入和输出。
- 它能够将现场由传感器检测而产生的连续的模拟量信号转换成PLC（可编程逻辑控制器）的CPU可以接收的数字量，实现数据的采集和处理。
- 输入特性：
- 该模块具有十个模拟输入通道。
- 前八个输入通道可设置为5V、10V或4-20mA电流环路输入。
- 最后两个输入通道可设置为1mA或4-20mA电流输入。
- 电流环路输入的负载终端电阻器位于端子板上，模块通过这些电阻器感应电压。
- 输出特性：
- PAICH2有两个电流环路输出，输出范围从0到20mA。
- 它还包括额外的硬件，允许在第一个输出上实现0-200mA的电流输出。
- 连接与通信：
- I/O包直接连接到终端板上，通过DC-37引脚连接器进行连接。
- 如果仅安装一个I/O包，支持TMR（三重冗余）的终端板具有3个DC-37引脚连接器，可以在单工模式下使用。
- I/O包通过双RJ-45以太网连接器接收和发送数据到控制器，并由一个三针连接器供电。
- 现场设备通过直接连接到相关终端板的DC-37引脚连接器进行通信。
- 功能与应用：
- IS220PAICH2A具有高精度、高稳定性和高可靠性的特点，能够适应各种恶劣的工作环境。
- 它具有可编程性和可扩展性，能够与其他工业自动化和控制系统进行集成，实现更高级的功能和应用。
- 该模块广泛应用于工业自动化和控制系统，用于温度、压力、流量、液位等参数的监测和控制。
- 安装与配置：
- 安装时，需要牢固地安装所选的端子板，并将PAIC I/O包直接插入端子板连接器。
- 使用以太网端口附近的双头螺栓以机械方式固定I/O包。
- 根据系统配置，连接一根或两根以太网电缆，并将I/O包连接到电源。
- 使用ToolboxST应用程序根据需要配置I/O包。
英文资料
The IS220PAICH2A analog input/output module is a device developed by General Electric and is part of the Mark VIe Speedtronic control system. The following is detailed information and features about this module:
Overview:
IS220PAICH2A is an analog I/O module used to connect field equipment and control systems, achieving input and output of analog signals.
It can convert continuous analog signals generated by sensors on site into digital signals that can be received by the CPU of a PLC (Programmable Logic Controller), achieving data acquisition and processing.
Input characteristics:
This module has ten analog input channels.
The first eight input channels can be set as 5V, 10V, or 4-20mA current loop inputs.
The last two input channels can be set to 1mA or 4-20mA current input.
The load terminal resistors of the current loop input are located on the terminal board, and the module induces voltage through these resistors.
Output characteristics:
PAICH2 has two current loop outputs, with an output range from 0 to 20mA.
It also includes additional hardware that allows for a current output of 0-200mA on the first output.
Connection and communication:
The I/O package is directly connected to the terminal board and connected through a DC-37 pin connector.
If only one I/O package is installed, a terminal board that supports TMR (Triple Redundancy) has three DC-37 pin connectors and can be used in simplex mode.
The I/O package receives and sends data to the controller through dual RJ-45 Ethernet connectors, and is powered by a three pin connector.
The on-site equipment communicates through a DC-37 pin connector directly connected to the relevant terminal board.
Features and Applications:
IS220PAICH2A has the characteristics of high precision, high stability, and high reliability, and can adapt to various harsh working environments.
It has programmability and scalability, and can be integrated with other industrial automation and control systems to achieve more advanced functions and applications.
This module is widely used in industrial automation and control systems, for monitoring and controlling parameters such as temperature, pressure, flow rate, liquid level, etc.
Installation and configuration:
When installing, it is necessary to firmly install the selected terminal board and directly insert the PAIC I/O package into the terminal board connector.
Use the double headed bolts near the Ethernet port to mechanically secure the I/O package.
According to the system configuration, connect one or two Ethernet cables and connect the I/O pack to the power supply.
Use the ToolboxST application to configure I/O packages as needed.

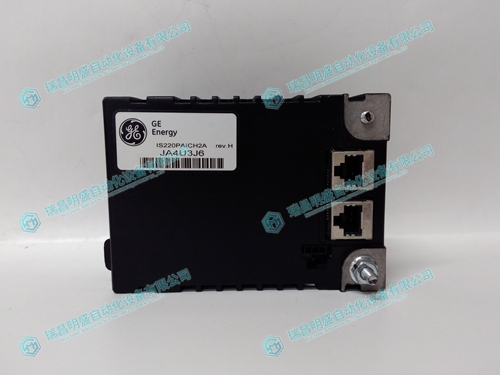

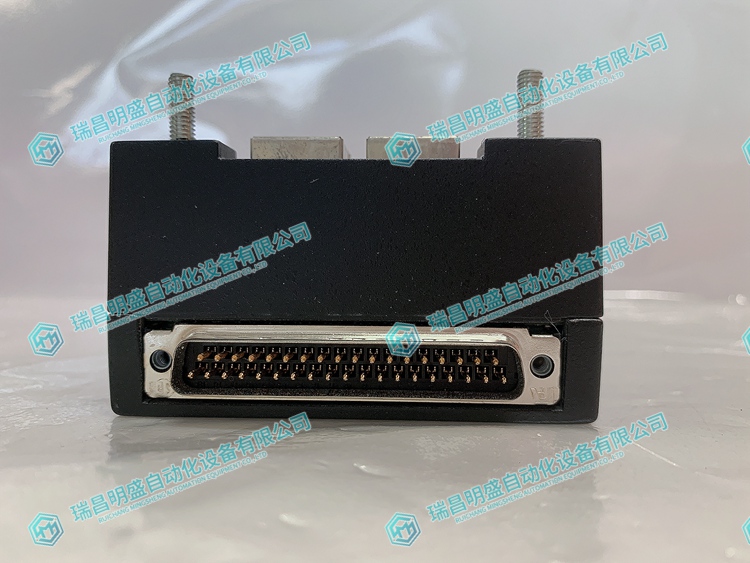

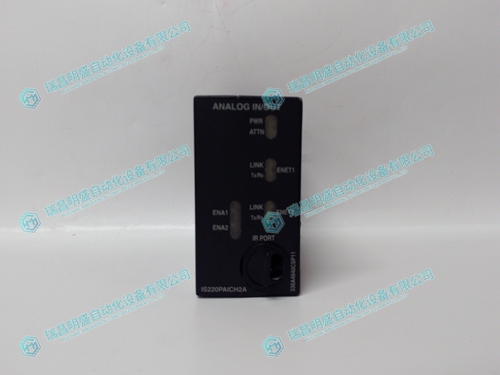

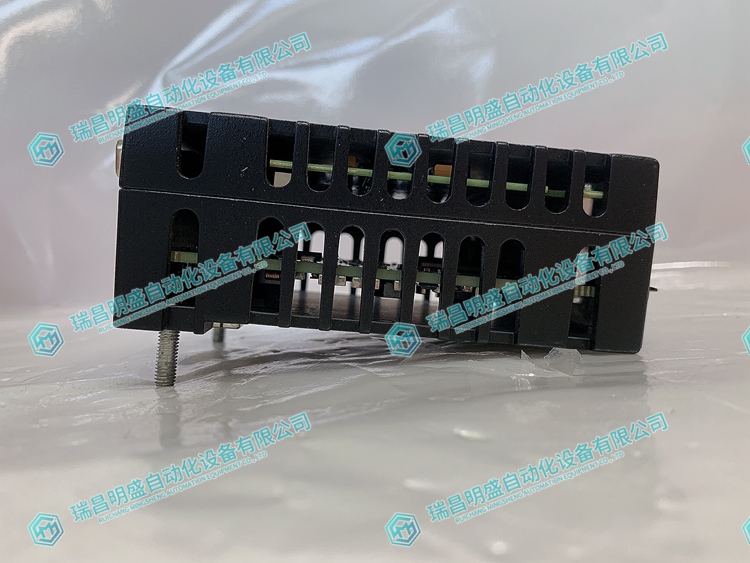

2.产 品 展 示
3.产 品 展 示
