1.产 品 资 料 介 绍：
IC693APU301 轴定位模块
IC693APU301 是 GE Fanuc 90-30 系列中的单轴定位控制模块，主要用于伺服电机的精确位置控制与运动控制，广泛应用于需要高精度定位和同步控制的工业自动化系统。
1、属于Series 90-30 PLC专用模块，支持单槽安装结构
2、支持单轴伺服控制，实现位置、速度及运动控制功能
3、内置独立处理器，专门用于运动控制运算
4、伺服控制周期快，响应速度高，适合高动态应用
5、支持标准控制模式与跟随模式（电子齿轮同步）
6、可实现点位控制、连续运动及轨迹控制
7、支持主从轴同步控制，适用于联动系统
8、配备专用接口用于连接伺服驱动器与反馈设备
9、支持编码器反馈信号，实现闭环控制
10、可配置多种运动参数，如加减速、速度、位置等
11、通过PLC背板与CPU通信，实现数据实时交换
12、模块支持多轴扩展，可构建复杂运动控制系统
13、带有LED状态指示，方便监控运行及故障诊断
14、适用于包装设备、数控机械、输送定位系统等场景
15、具有良好的稳定性与抗干扰能力，适合工业环境长期运行
IC693APU301 轴定位模块在自动化系统中承担精确运动控制任务，可实现高精度定位和稳定运行，是实现伺服控制与机械运动协调的重要模块。
IC693APU301轴定位模块 英文介绍
IC693APU301 axis positioning module
IC693APU301 is a single axis positioning control module in the GE Fanuc 90-30 series, mainly used for precise position control and motion control of servo motors, widely used in industrial automation systems that require high-precision positioning and synchronous control.
1. Belonging to Series 90-30 PLC dedicated module, supporting single slot installation structure
2. Support single axis servo control to achieve position, speed, and motion control functions
3. Built in independent processor, specifically designed for motion control calculations
4. Fast servo control cycle, high response speed, suitable for high dynamic applications
5. Support standard control mode and following mode (electronic gear synchronization)
6. Can achieve point control, continuous motion, and trajectory control
7. Supports master-slave axis synchronization control, suitable for linkage systems
8. Equipped with a dedicated interface for connecting servo drives and feedback devices
9. Support encoder feedback signals to achieve closed-loop control
10. Multiple motion parameters can be configured, such as acceleration and deceleration, speed, position, etc
11. Real time data exchange achieved through communication between PLC backplane and CPU
12. The module supports multi axis expansion and can build complex motion control systems
13. Equipped with LED status indicator, convenient for monitoring operation and fault diagnosis
14. Suitable for packaging equipment, CNC machinery, conveyor positioning systems and other scenarios
15. Has good stability and anti-interference ability, suitable for long-term operation in industrial environments
The IC693APU301 axis positioning module undertakes precise motion control tasks in automation systems, enabling high-precision positioning and stable operation. It is an important module for achieving servo control and mechanical motion coordination.

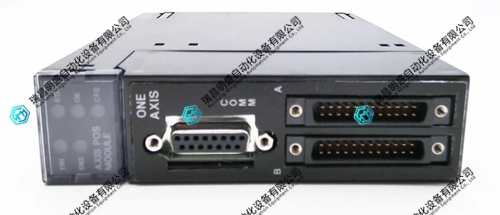

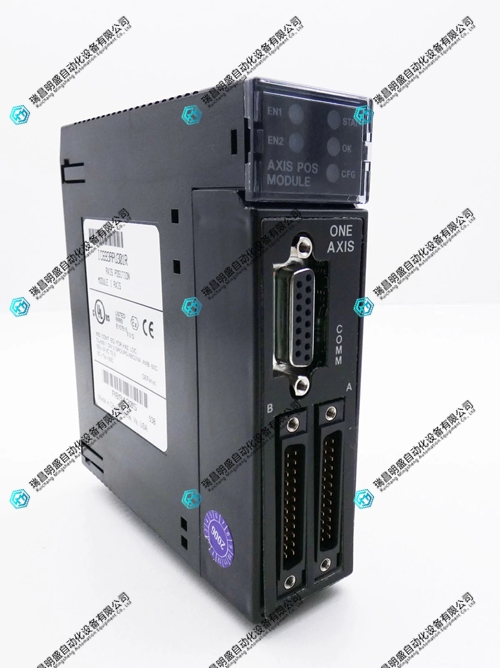

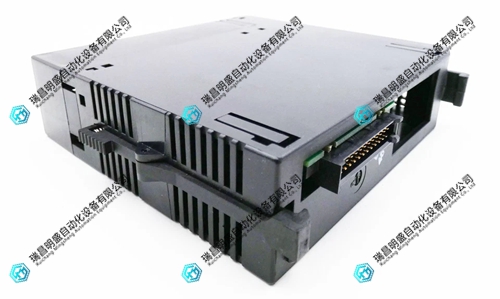

IC693APU301轴定位模块 产品展示
