IC693APU300K高速计数器模块 PDF资料
1.产 品 资 料 介 绍：
IC693APU300K 高速计数器模块
IC693APU300K 是 GE Fanuc 90-30 系列PLC中的一款高速计数器模块，专用于处理高速脉冲信号，实现精确计数、位置检测及速度测量，适用于对实时性要求较高的工业控制系统。
1、属于Series 90-30 PLC专用模块，支持单槽安装结构
2、可处理高速脉冲信号，避免普通输入模块出现漏计数问题
3、最大计数频率高，适用于高速检测与控制场景
4、支持多种输入信号类型，兼容编码器及脉冲设备
5、提供多路数字输入通道，用于接收计数信号
6、具备输出控制功能，可实现计数触发与报警输出
7、支持加计数、减计数、双向计数及正交计数模式
8、可配置为16位或32位计数方式，满足不同精度需求
9、内置独立处理单元，减轻PLC CPU运算负担
10、支持位置检测、速度测量及累计计数功能
11、具备预置值比较与窗口控制功能，实现自动控制
12、内置滤波功能，提高抗干扰能力和信号稳定性
13、通过PLC背板进行数据通信，实时更新计数结果
14、带有状态指示功能，便于现场监控与维护
15、适用于输送线、编码器反馈、计量系统等应用场景
IC693APU300K 高速计数器模块在工业自动化系统中能够实现高精度、高响应的计数与测量功能，是运动控制和高速检测应用中的关键模块之一。
IC693APU300K高速计数器模块 英文介绍
IC693APU300K high-speed counter module
IC693APU300K is a high-speed counter module in GE Fanuc 90-30 series PLC, dedicated to processing high-speed pulse signals, achieving accurate counting, position detection, and speed measurement, suitable for industrial control systems with high real-time requirements.
1. Belonging to Series 90-30 PLC dedicated module, supporting single slot installation structure
2. Capable of processing high-speed pulse signals, avoiding the problem of missed counts in ordinary input modules
3. High maximum counting frequency, suitable for high-speed detection and control scenarios
4. Supports multiple input signal types, compatible with encoders and pulse devices
5. Provide multiple digital input channels for receiving counting signals
6. Equipped with output control function, capable of counting trigger and alarm output
7. Supports up counting, down counting, bidirectional counting, and orthogonal counting modes
8. Can be configured as 16 bit or 32-bit counting mode to meet different accuracy requirements
9. Built in independent processing unit to reduce the computational burden on PLC CPU
10. Support position detection, speed measurement, and cumulative counting functions
11. Equipped with preset value comparison and window control functions, achieving automatic control
12. Built in filtering function improves anti-interference ability and signal stability
13. Real time update of counting results through data communication via PLC backplane
14. Equipped with status indication function, convenient for on-site monitoring and maintenance
15. Suitable for application scenarios such as conveyor lines, encoder feedback, and metering systems
The IC693APU300K high-speed counter module can achieve high-precision and high response counting and measurement functions in industrial automation systems, and is one of the key modules in motion control and high-speed detection applications.

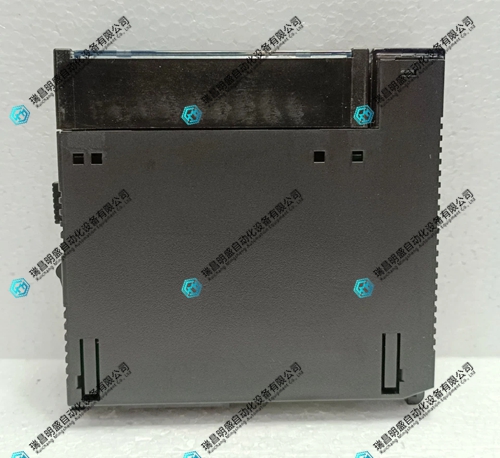

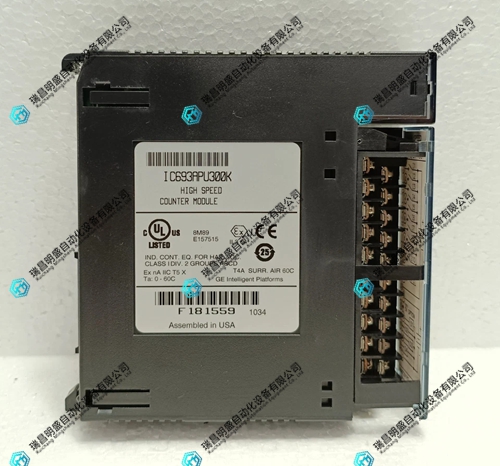

IC693APU300K高速计数器模块 产品展示
