Jeol AP002282-00扫描发电机模块 PDF资料

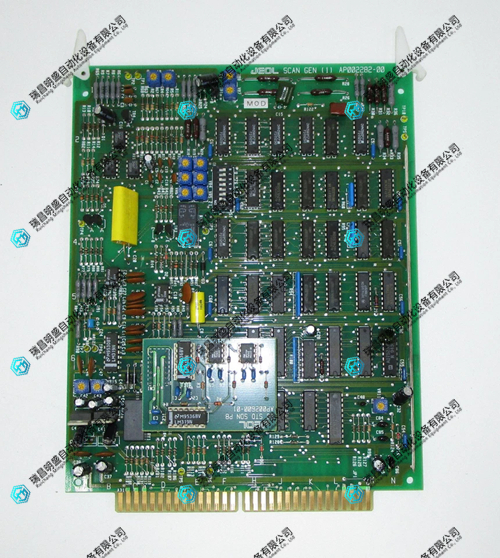

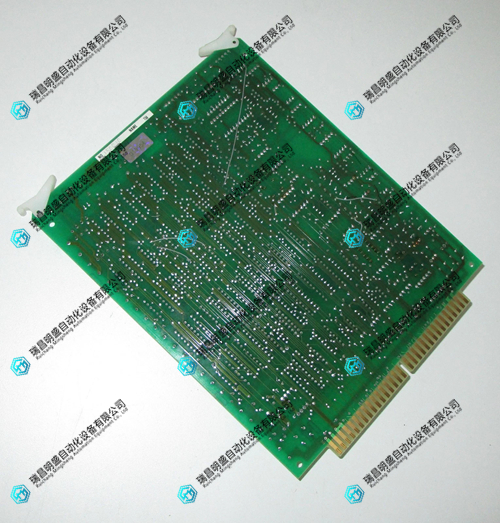

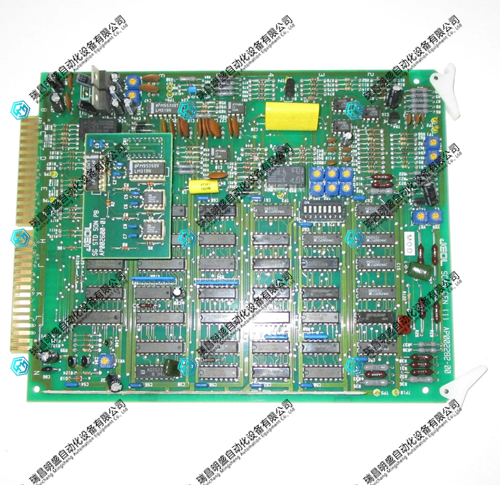

JEOL AP002282-00 是日本电子（JEOL）扫描电子显微镜（SEM）中的扫描发生器模块（Scan Generator Board），用于控制电子束在样品表面的扫描运动与成像同步。
产品应用领域（10条）
JEOL JSM-6600F 扫描电子显微镜扫描系统
JEOL JSM-6300F 扫描电子显微镜扫描系统
SEM 电子束扫描光栅信号生成
扫描线圈驱动信号输出
SEM 图像放大倍率控制
扫描速度与扫描模式切换
图像采集与显示同步控制
电子束扫描校准与线性化
SEM 设备维修与备件替换
实验室及工业级 SEM 系统
产品参数（3条）
板卡类型：扫描发生器板（Scan Gen Board）
适用机型：JEOL JSM-6600F / JSM-6300F SEM
功能定位：电子束扫描信号生成与控制模块
结尾
JEOL AP002282-00 扫描发生器模块在 JEOL SEM 系统中承担电子束扫描信号生成与成像同步的核心功能，是保障扫描电镜图像稳定性和放大倍率精度的关键板卡组件。
JEOL AP002282-00 is a Scan Generator Board in the Japanese Electron (JEOL) Scanning Electron Microscope (SEM), used to control the scanning motion and imaging synchronization of the electron beam on the sample surface.
Product application areas (10 items)
JEOL JSM-6600F Scanning Electron Microscope Scanning System
JEOL JSM-6300F Scanning Electron Microscope Scanning System
SEM electron beam scanning grating signal generation
Scan coil drive signal output
SEM image magnification control
Switching between scanning speed and scanning mode
Synchronized control of image acquisition and display
Electron beam scanning calibration and linearization
SEM equipment maintenance and spare parts replacement
Laboratory and industrial grade SEM system
Product parameters (3 items)
Board type: Scan Gen Board
Applicable models: JEOL JSM-6600F/JSM-6300F SEM
Functional positioning: Electronic beam scanning signal generation and control module
ending
The JEOL AP002282-00 scanning generator module plays a core role in generating electron beam scanning signals and synchronizing imaging in the JEOL SEM system. It is a key board component that ensures the stability and magnification accuracy of scanning electron microscopy images.
