BRUKER BSMS/2 SCB7M-16BIT 控制板 PDF资料
BRUKER BSMS/2 SCB7M-16BIT 是布鲁克 NMR 波谱仪 BSMS/2 机架中的匀场电流控制板，用于控制超导磁体的高阶匀场线圈电流。
产品特点
匀场电流源：每块板最多集成 13 路电流源，精确控制匀场线圈电流。
16 位 DAC 分辨率：搭载 16 位高分辨率数模转换器。
专用于高阶匀场：负责 Z³Y、Z⁴、Z(X²-Y²) 等高阶匀场电流输出。
VME 总线接口：通过背板总线与 CPU 模块通信。
可升级性：升级到 BOSS2 系统时需替换为 SCB13M。
产品应用领域
NMR 超导磁体匀场控制。
高阶匀场线圈驱动。
BSMS/2 机架系统。
AVANCE 系列波谱仪。
AV 系列波谱仪。
高场 NMR 系统。
科研与结构生物学。
药物分析实验室。
化学分析平台。
材料科学表征。
产品参数
产品类型：匀场电流控制板，型号 SCB7M。
DAC 分辨率：16 位。
适配系统：BSMS/2 主机架，VME 总线插槽。
综上，BRUKER BSMS/2 SCB7M-16BIT 控制板是布鲁克 NMR 匀场系统的核心板卡，以 16 位 DAC 精度驱动高阶匀场线圈，保障超导磁体磁场均匀性。
BRUKER BSMS/2 SCB7M-16BIT 控制板 英文介绍
BRUKER BSMS/2 SCB7M-16BIT is a shim current control board in the BSMS/2 frame of the Bruker NMR spectrometer, used to control the high-order shim coil current of superconducting magnets.
Product Features
Uniform current source: Each board can integrate up to 13 current sources to accurately control the current of the uniform coil.
16 bit DAC resolution: Equipped with a 16 bit high-resolution analog-to-digital converter.
Dedicated to high-order shimming: responsible for outputting high-order shimming currents such as Z ³ Y, Z ⁴, Z (X ² - Y ²), etc.
VME bus interface: communicates with CPU module through backplane bus.
Upgradeability: When upgrading to BOSS2 system, it needs to be replaced with SCB13M.
Product application areas
Uniformity control of NMR superconducting magnets.
High order uniform field coil drive.
BSMS/2 rack system.
AVANCE series spectrometer.
AV series spectrometer.
High field NMR system.
Research and Structural Biology.
Drug analysis laboratory.
Chemical analysis platform.
Material science characterization.
Product Specifications
Product type: Uniformed current control board, model SCB7M.
DAC resolution: 16 bits.
Adaptation system: BSMS/2 mainframe, VME bus slot.
In summary, the BRUKER BSMS/2 SCB7M-16BIT control board is the core board of the Bruker NMR shimming system, which drives high-order shimming coils with 16 bit DAC precision to ensure the uniformity of the superconducting magnet magnetic field.

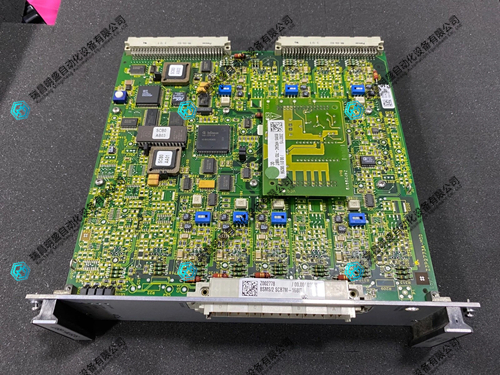

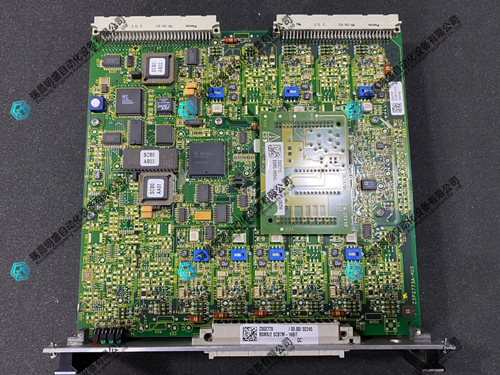

BRUKER BSMS/2 SCB7M-16BIT 控制板 产品图片
