GE XR-M130-10801隔离模拟输入模块 PDF资料

1.产 品 资 料 介 绍：

GE IC695ALG112-DA 隔离模拟输入模块产品说明

产品特点

1. PACSystems RX3i系列12通道单端隔离模拟输入模块，通道间及对背板隔离。

2. 每通道可独立配置为电流或电压输入，电流0-20mA/4-20mA/±20mA，电压±10V/0-10V/±5V/0-5V/1-5V。

3. 16位ADC分辨率，25°C时校准精度0.1%，全温范围0.2%。

4. 支持每通道高低报警、变化率报警及开路检测，具备终端块插拔检测功能。

5. 支持带电热插拔，完全软件配置，无需硬件跳线。

产品应用领域

1. 石油天然气处理设施过程监控

2. 化工生产自动化控制回路

3. 发电与公用工程过程参数采集

4. 水处理与废水处理系统

5. 制药行业批次过程控制

6. 食品饮料生产线过程监控

7. 半导体制造设备过程参数监测

8. 老旧RX3i系统模拟输入模块替换

9. 分布式控制系统远程I/O站

10. 需要通道隔离的抗干扰工业环境

产品参数

1. 通道数：12路单端隔离模拟输入

2. 分辨率与精度：16位ADC；25°C时0.1%，全温范围0.2%

3. 供电与功耗：背板5V/490mA、3.3V/310mA；外部隔离24VDC/500mA；最大4.89W

总结：GE IC695ALG112-DA 是PACSystems RX3i系列的12通道隔离模拟输入模块，支持电流/电压多量程软件配置、16位分辨率及通道间隔离，具备高级诊断和热插拔能力，主要用于过程工业中对温度、压力、流量等连续变量的高精度采集与监控，是RX3i控制系统中模拟量输入的关键组件。

GE XR-M130-10801隔离模拟输入模块   英文介绍

GE IC695ALG112-DA Isolated Analog Input Module Product Description

Product Features

PACSystems RX3i series 12 channel single ended isolated analog input module, with inter channel and backplane isolation.

Each channel can be independently configured as a current or voltage input, with a current of 0-20mA/4-20mA/± 20mA and a voltage of ± 10V/0-10V/± 5V/0-5V/1-5V.

16 bit ADC resolution, calibration accuracy of 0.1% at 25 ° C, and full temperature range of 0.2%.

Support high and low alarms, change rate alarms, and open circuit detection for each channel, with terminal block insertion and extraction detection function.

Supports hot swapping, fully software configured, no need for hardware jumpers.

Product application areas

Process monitoring of oil and gas processing facilities

Chemical production automation control circuit

Collection of process parameters for power generation and public works

Water treatment and wastewater treatment system

Batch Process Control in the Pharmaceutical Industry

Process monitoring of food and beverage production line

Monitoring process parameters of semiconductor manufacturing equipment

Replacement of old RX3i system analog input module

Distributed Control System Remote I/O Station

Anti interference industrial environment requiring channel isolation

Product Specifications

Number of channels: 12 single ended isolated analog inputs

Resolution and accuracy: 16 bit ADC; 0.1% at 25 ° C, 0.2% over the entire temperature range

Power supply and power consumption: Back panel 5V/490mA, 3.3V/310mA; External isolation 24VDC/500mA; Maximum 4.89W

Summary: GE IC695ALG112-DA is a 12 channel isolated analog input module of PACSystems RX3i series, which supports current/voltage multi range software configuration, 16 bit resolution, and inter channel isolation. It has advanced diagnostic and hot swappable capabilities and is mainly used for high-precision acquisition and monitoring of continuous variables such as temperature, pressure, and flow in the process industry. It is a key component of analog input in RX3i control systems.

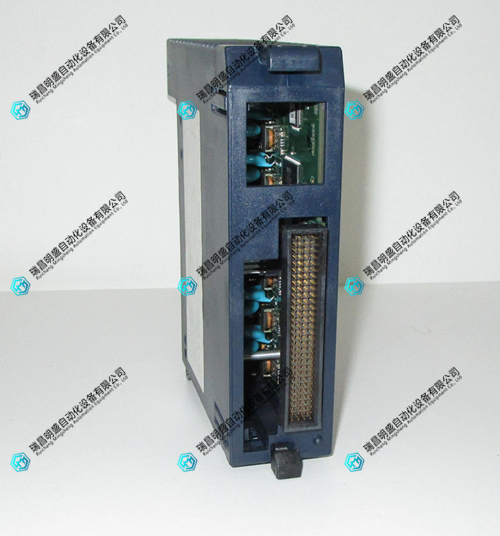

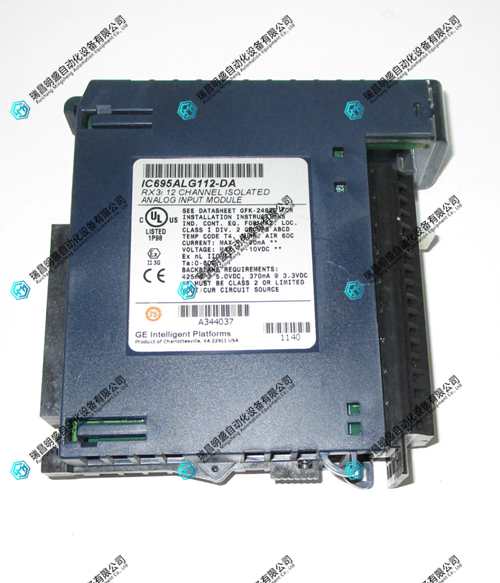

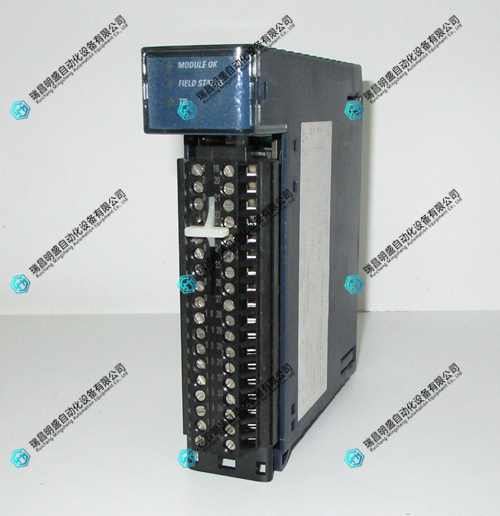

GE XR-M130-10801隔离模拟输入模块  产品图片
