Jenaer 34S42-0560-B05PB-08伺服电机 PDF资料

1.产 品 资 料 介 绍：

Jenaer 34S42-0560-B05PB-08 伺服电机产品说明

产品特点

1. 属于JAT ECOSTEP 34S系列，高极对数同步电机，紧凑体积下实现高扭矩输出。

2. 设计电压150V DC，最大转速2500 rpm，峰值与堵转扭矩均为3.5 Nm。

3. 标准86mm法兰安装尺寸，电机长度约114mm，重量约2.6kg。

4. 编码器换向设计，无需齿轮箱即可实现高精度定位。

5. 支持多种编码器、电缆长度、抱闸和联轴器配置选项。

产品应用领域

1. 半导体制造设备精密定位

2. 纺织机械高动态驱动

3. 包装机械启停循环控制

4. 分拣装置运动控制

5. 印刷机同步驱动

6. 光学设备精密定位

7. 测量机高精度进给

8. 自动化产线直接驱动应用

9. 需要高扭矩紧凑驱动的工业场景

10. 替代传统伺服+齿轮箱方案

产品参数

1. 电气参数：额定电压150 VDC，额定功率131W，峰值电流8.5 ARMS，扭矩常数0.41 Nm/A

2. 机械参数：法兰86mm，长度114mm，轴径12mm，重量2.6kg，防护等级IP40

3. 性能参数：峰值/堵转扭矩3.5 Nm，额定扭矩2.5 Nm，峰值转速2500 rpm，额定转速500 rpm

总结：Jenaer 34S42-0560-B05PB-08 是JAT ECOSTEP 34S系列的一款高扭矩伺服电机，采用86mm法兰设计，额定电压150V DC，峰值扭矩3.5 Nm，具有低转速高扭矩、高动态响应的特点，适用于半导体、纺织、包装等需要精密定位和直接驱动方案的工业应用

Jenaer 34S42-0560-B05PB-08伺服电机   英文介绍

Jenaer 34S42-0560-B05PB-08 Servo Motor Product Description

Product Features

Belonging to the JAT ECOSTEP 34S series, it is a high pole logarithmic synchronous motor that achieves high torque output in a compact size.

The design voltage is 150V DC, the maximum speed is 2500 rpm, and the peak and locked rotor torque are both 3.5 Nm.

The standard flange installation size is 86mm, the motor length is about 114mm, and the weight is about 2.6kg.

Encoder reversing design enables high-precision positioning without the need for a gearbox.

Supports multiple encoder, cable length, brake and coupling configuration options.

Product application areas

Precision positioning of semiconductor manufacturing equipment

High dynamic drive for textile machinery

Start stop cycle control of packaging machinery

Sorting device motion control

Printing machine synchronous drive

Precision positioning of optical equipment

High precision feed of measuring machine

Automated production line direct drive application

Industrial scenarios requiring high torque compact drive

Replace traditional servo+gearbox solution

Product Specifications

Electrical parameters: rated voltage 150 VDC, rated power 131W, peak current 8.5 ARMS, torque constant 0.41 Nm/A

Mechanical parameters: flange 86mm, length 114mm, shaft diameter 12mm, weight 2.6kg, protection level IP40

Performance parameters: Peak/locked rotor torque of 3.5 Nm, rated torque of 2.5 Nm, peak speed of 2500 rpm, rated speed of 500 rpm

Summary: Jenaer 34S42-0560-B05PB-08 is a high torque servo motor from the JAT ECOSTEP 34S series. It features an 86mm flange design, a rated voltage of 150V DC, and a peak torque of 3.5 Nm. It has the characteristics of low speed, high torque, and high dynamic response, and is suitable for industrial applications such as semiconductors, textiles, and packaging that require precise positioning and direct drive solutions

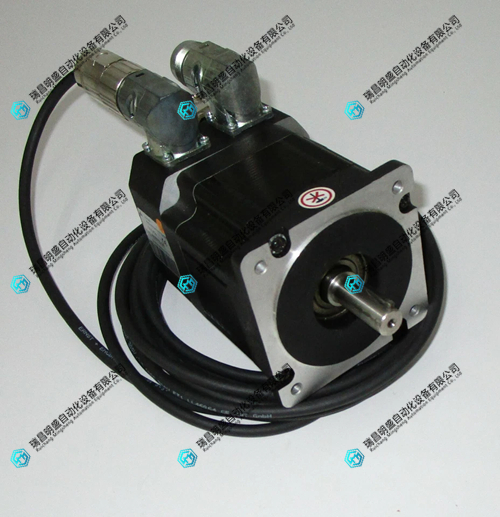

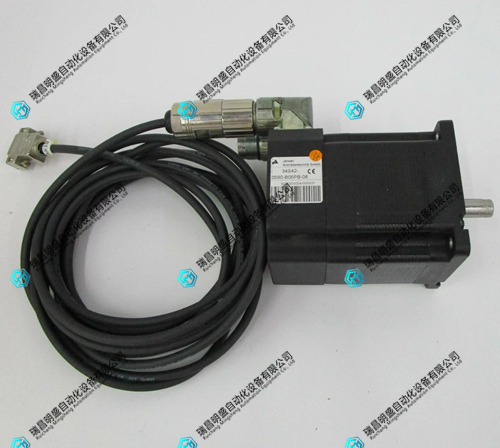

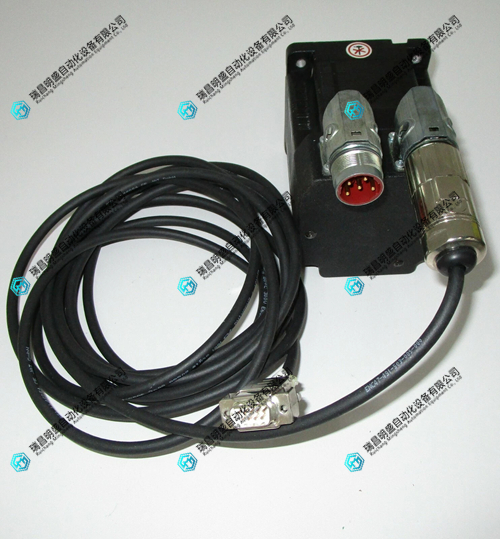

Jenaer 34S42-0560-B05PB-08伺服电机  产品图片
