NI PCI-6704 183689R-01L静态模拟卡 PDF资料
NI PCI-6704（部件号 183689R-01L）是 NI 的一款静态模拟输出设备，专为软件定时的电压和电流输出应用设计，可提供高精度的多通道模拟信号输出。
产品特点
电压与电流双输出，共 32 路模拟输出通道
16 位分辨率，电压 ±10 V，电流 0.1–20.2 mA
静态/软件定时，适合静态或低速控制场景
配备 8 条 5V TTL/CMOS 数字 I/O 线
用户可定义各通道上电状态，便于系统集成
产品参数
分辨率与通道：16 位，16 路电压 + 16 路电流输出
输出范围：电压 ±10 V（驱动 ±10 mA）；电流 0.1–20.2 mA
精度：电压约 1.07 mV，电流约 4.48 μA（一年）
产品应用领域
工业自动化过程控制
传感器与信号仿真
电源控制与调节
实验室研究与测试系统
航空航天与汽车零部件测试
激励-响应测试系统
确定性控制应用
自动化测试设备
数据采集与监控系统
老旧 PCI 测试系统维护替换
综上，PCI-6704 是一款面向软件定时控制应用的高分辨率静态模拟输出卡，核心优势在于电压/电流双输出集成与 16 位精度，适合工业控制与自动化测试场景。
NI PCI-6704 183689R-01L静态模拟卡 英文介绍
NI PCI-6704 (part number 183689R-01L) is a static analog output device from NI, designed specifically for software timed voltage and current output applications, providing high-precision multi-channel analog signal output.
Product Features
Dual output of voltage and current, with a total of 32 analog output channels
16 bit resolution, voltage ± 10 V, current 0.1-20.2 mA
Static/software timing, suitable for static or low-speed control scenarios
Equipped with 8 5V TTL/CMOS digital I/O lines
Users can define the power on status of each channel for system integration
Product Specifications
Resolution and channel: 16 bits, 16 voltage+16 current outputs
Output range: Voltage ± 10 V (Drive ± 10 mA); Current 0.1-20.2 mA
Accuracy: Voltage about 1.07 mV, current about 4.48 μ A (one year)
Product application areas
Industrial Automation Process Control
Sensors and Signal Simulation
Power control and regulation
Laboratory Research and Testing System
Aerospace and Automotive Component Testing
Incentive Response Testing System
Application of deterministic control
Automated testing equipment
Data Collection and Monitoring System
Maintenance and replacement of old PCI testing system
Overall, PCI-6704 is a high-resolution static analog output card designed for software timing control applications. Its core advantage lies in the integration of voltage/current dual outputs and 16 bit accuracy, making it suitable for industrial control and automation testing scenarios.

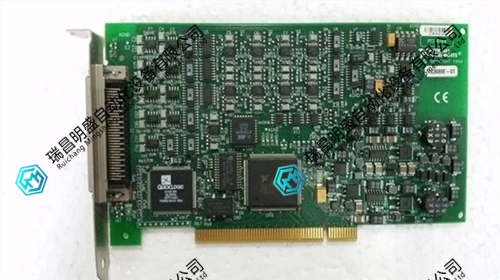

NI PCI-6704 183689R-01L静态模拟卡 产品图片
