Advantech MIC-3318中央控制器模块 PDF资料
Advantech MIC-3318 是研华的一款 3U CompactPCI 中央控制器模块，搭载 Intel Pentium 4-M 处理器，属于免风扇单板计算机，用于对可靠性和实时性要求较高的工业控制场景。
产品特点
免风扇设计：CPU 功耗较低，配合专用散热片实现无风扇运行，减少灰尘积聚和机械故障点。
I/O 接口丰富：板载双千兆网口、双串口（RS-232/422/485 可跳线选择）、双 USB 2.0 及 CompactFlash 插槽。
热插拔支持：兼容 PICMG 2.1 CompactPCI 热插拔规范，配合研华热插拔管理器可在线更换 I/O 卡。
集成 VGA 显示：采用 Intel 845GV 芯片组，无需额外显卡即可输出显示信号。
PCI-to-PCI 桥接：板载 PI7C8150 桥片，可驱动最多 7 个总线主控外设。
产品参数
处理器：Intel Pentium 4-M，1.2 或 1.7 GHz，400 MHz 前端总线，512 KB 片内二级缓存。
内存与存储：支持最高 512 MB DDR-266 SO-DIMM；支持 2 个 Ultra ATA 33/66/100 IDE 设备及板载 CompactFlash 插槽。
物理规格：3U 尺寸（160 × 100 mm），2 槽宽（8TE）；工作温度 -10~60°C（1.2 GHz）或 -10~50°C（1.7 GHz）。
产品应用领域
工业自动化实时控制
军事与国防嵌入式系统
交通运输控制设备
交通管理与信号系统
测试与测量仪器
电信通信设备
关键数据采集与控制
船舶与海洋电子系统
电力监控与保护设备
老旧 CompactPCI 系统维护替换
综上，MIC-3318 是一款面向工业与军工级应用的 3U CompactPCI 单板计算机，核心优势在于免风扇、接口丰富和热插拔支持
Advantech MIC-3318中央控制器模块 英文介绍
Advantech MIC-3318 is a 3U CompactPCI central controller module from Advantech, equipped with an Intel Pentium 4-M processor. It is a fan free single board computer used in industrial control scenarios that require high reliability and real-time performance.
Product Features
Fan free design: Low CPU power consumption, combined with dedicated heat sinks to achieve fanless operation, reducing dust accumulation and mechanical failure points.
Rich I/O interfaces: onboard dual gigabit Ethernet ports, dual serial ports (RS-232/422/485 with jumper options), dual USB 2.0 and CompactFlash slots.
Hot swappable support: Compatible with PICMG 2.1 CompactPCI hot swappable specifications, and can be replaced online with Advantech Hot swappable Manager.
Integrated VGA display: Using Intel 845GV chipset, it can output display signals without the need for an additional graphics card.
PCI to PCI Bridge: The onboard PI7C8150 bridge can drive up to 7 bus master peripherals.
Product Specifications
Processor: Intel Pentium 4-M, 1.2 or 1.7 GHz, 400 MHz front-end bus, 512 KB on-chip L2 cache.
Memory and Storage: Supports up to 512 MB DDR-266 SO-DIMM; Supports 2 Ultra ATA 33/66/100 IDE devices and onboard CompactFlash slots.
Physical specifications: 3U size (160 × 100 mm), 2 slot widths (8TE); Working temperature -10~60 ° C (1.2 GHz) or -10~50 ° C (1.7 GHz).
Product application areas
Real time control of industrial automation
Military and Defense Embedded Systems
Transportation control equipment
Traffic Management and Signal System
Testing and measuring instruments
Telecommunications equipment
Key data collection and control
Ship and Marine Electronic Systems
Power monitoring and protection equipment
Maintenance and replacement of old CompactPCI systems
In summary, MIC-3318 is a 3U CompactPCI single board computer designed for industrial and military grade applications, with core advantages including fan free, rich interfaces, and hot swappable support

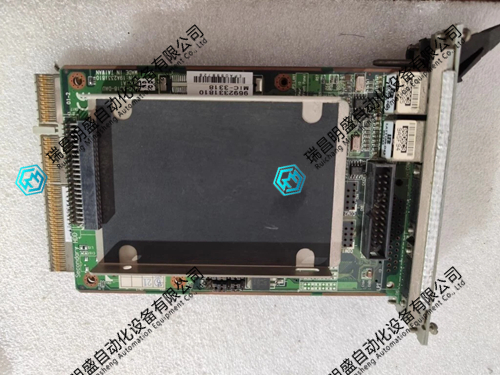

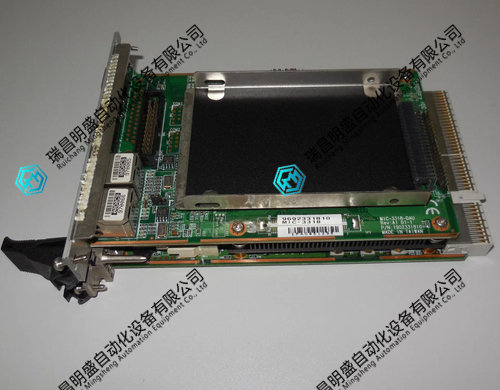

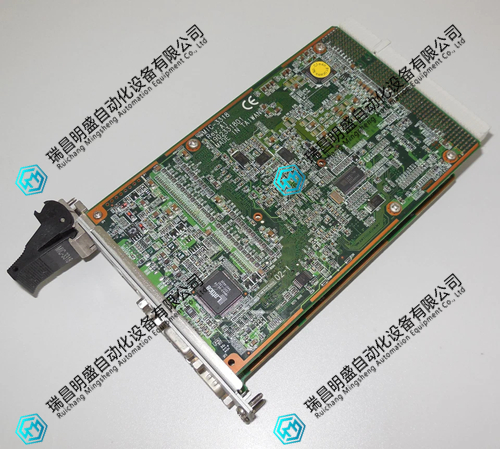

Advantech MIC-3318中央控制器模块 产品图片
