JDSU  DSAM-6300扫频电缆测量仪 PDF资料

1.产 品 资 料 介 绍：

JDSU DSAM-6300 扫频电缆测量仪简介

产品特点

1. 集DOCSIS 3.0测试、频谱分析、信号电平计和QAM分析仪于一体。

2. 支持8下行×4上行通道绑定测试，下行吞吐量最高400 Mbps。

3. 采用Stealth Sweep技术，扫频时不干扰现有数字载波。

4. 内置前置放大器，反向频谱可低至-45dBmV，便于排查回传噪声。

5. 彩色显示屏，机身坚固耐候，适合现场外勤使用。

产品应用领域

1. HFC网络正反向通道维护

2. DOCSIS 3.0性能测试与业务验证

3. 数字QAM载波故障排查

4. 回传通道噪声与入侵检测

5. 三网融合业务质量验证

6. 电缆调制解调器安装验证

7. 模拟与数字视频信号测试

8. 用户端以太网业务测试

9. 家庭网络认证与布线检测

10. 电缆网络建设与故障排查

产品参数

1. 产品型号：DSAM-6300

2. 频率范围：4–1000 MHz

3. 下行测试：8×4 DOCSIS 3.0绑定，MER最高45 dB

总结：JDSU DSAM-6300 是一款面向电缆网络维护的手持综合测试仪表，整合DOCSIS 3.0测试、扫频、频谱分析及QAM分析功能，适用于HFC网络的正反向通道维护、业务验证与故障排查。

JDSU  DSAM-6300扫频电缆测量仪  英文介绍

Introduction to JDSU DSAM-6300 Scanning Cable Measuring Instrument

Product Features

Integrating DOCSIS 3.0 testing, spectrum analysis, signal level meter, and QAM analyzer.

Support 8 downlink x 4 uplink channel binding tests, with a maximum downlink throughput of 400 Mbps.

Using Stealth Sweep technology, it does not interfere with existing digital carriers during frequency scanning.

Built in preamplifier, the reverse spectrum can be as low as -45dBmV, making it easy to detect feedback noise.

Color display screen, sturdy and weather resistant body, suitable for on-site and field use.

Product application areas

Maintenance of Forward and Reverse Channels in HFC Networks

DOCSIS 3.0 Performance Testing and Business Validation

Troubleshooting of Digital QAM Carrier Malfunctions

Return channel noise and intrusion detection

Quality verification of triple play integration services

Cable modem installation verification

Analog and digital video signal testing

User side Ethernet service testing

Home network authentication and wiring detection

Cable network construction and troubleshooting

Product Specifications

Product model: DSAM-6300

Frequency range: 4-1000 MHz

Downward test: 8 × 4 DOCSIS 3.0 binding, MER up to 45 dB

Summary: JDSU DSAM-6300 is a handheld comprehensive testing instrument designed for cable network maintenance. It integrates DOCSIS 3.0 testing, frequency scanning, spectrum analysis, and QAM analysis functions, and is suitable for forward and reverse channel maintenance, business verification, and troubleshooting of HFC networks.

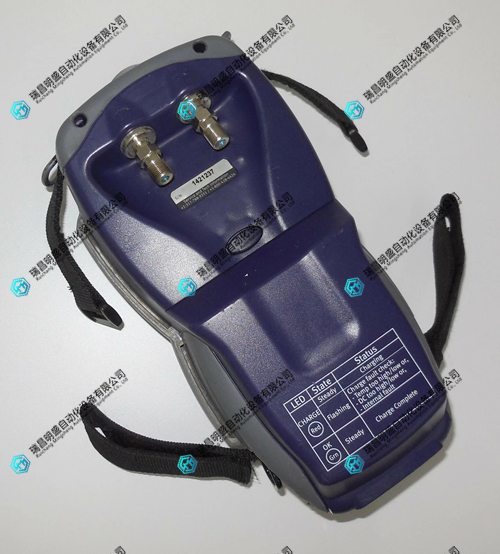

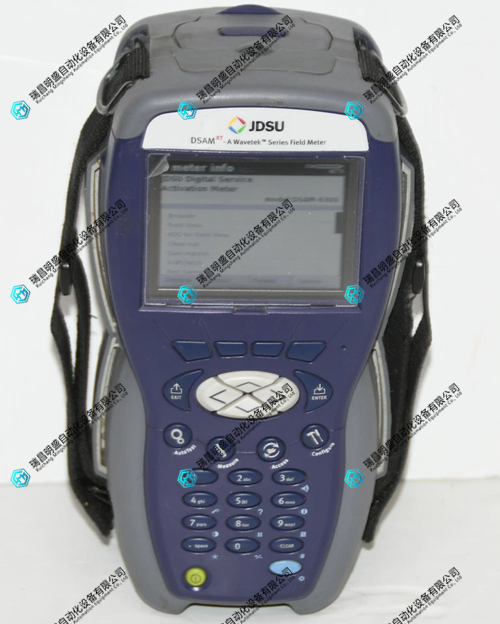

JDSU  DSAM-6300扫频电缆测量仪  产品图片
