dSPACE GmbH DS1104-04控制板卡 PDF资料
dSPACE GmbH DS1104-04 是 DS1104 R&D 控制器板卡的一个具体版本型号，属于面向快速控制原型（RCP）开发的单板系统，通过 PCI 或 PCIe 接口安装于 PC 中，将普通计算机升级为实时控制开发平台。
产品应用领域
电力驱动与电机控制开发
机器人控制系统研究
航空航天控制策略验证
新能源发电系统控制（如风力发电、光伏MPPT）
电力电子变换器控制
高校实验室教学与科研
工业自动化控制算法原型开发
产品特点
单板集成实时处理器与丰富 I/O，性价比高
与 MATLAB/Simulink 无缝集成，可通过 Real-Time Interface 图形化配置 I/O 并自动生成代码
支持 PCI 或 PCIe 插槽安装于标准 PC
配备从 DSP 子系统，专门用于电机驱动控制及 PWM 信号生成
被广泛应用于高校实验室及工业研发部门
产品参数
主处理器：Motorola MPC8240（PowerPC 603e 内核），250 MHz，64 位浮点
内存：32 MB SDRAM，8 MB Flash
从 DSP：Texas Instruments TMS320F240
模拟输入：8 通道（4×16 位复用 + 4×12 位并行），输入范围 ±10V
模拟输出：8 通道，16 位分辨率，输出范围 ±10V
数字 I/O：20 位并行 I/O
编码器接口：2 通道数字增量式编码器
通信接口：RS-232/RS-422/RS-485
结语
DS1104-04 属于 dSPACE DS1104 系列控制器板卡，是快速控制原型开发领域的经典入门级硬件平台。凭借与 MATLAB/Simulink 的深度集成和丰富的 I/O 资源，该板卡在电力电子、电机驱动、新能源发电及高校教研中有着广泛的应用基础。
dSPACE GmbH DS1104-04控制板卡 英文介绍
DSPACE GmbH DS1104-04 is a specific version model of DS1104 R&D controller board, which belongs to a single board system developed for rapid control prototyping (RCP). It is installed in a PC through PCI or PCIe interface, upgrading a regular computer to a real-time control development platform.
Product application areas
Development of Electric Drive and Motor Control
Research on Robot Control System
Validation of Aerospace Control Strategies
Control of new energy generation systems (such as wind power generation, photovoltaic MPPT)
Power electronic converter control
Teaching and Research in University Laboratories
Prototype development of industrial automation control algorithm
Product Features
Single board integrated real-time processor and rich I/O, high cost-effectiveness
Seamless integration with MATLAB/Simulink, allowing for graphical configuration of I/O and automatic code generation through Real Time Interface
Supports PCI or PCIe slot installation on standard PCs
Equipped with a DSP subsystem specifically designed for motor drive control and PWM signal generation
Widely used in university laboratories and industrial research and development departments
Product Specifications
Main processor: Motorola MPC8240 (PowerPC 603e core), 250 MHz, 64 bit floating-point
Memory: 32 MB SDRAM, 8 MB Flash
From DSP: Texas Instruments TMS320F240
Analog input: 8 channels (4 × 16 bit multiplexing+4 × 12 bit parallel), input range ± 10V
Analog output: 8 channels, 16 bit resolution, output range ± 10V
Digital I/O: 20 bit parallel I/O
Encoder interface: 2-channel digital incremental encoder
Communication interface: RS-232/RS-422/RS-485
Conclusion
DS1104-04 belongs to the dSPACE DS1104 series controller board and is a classic entry-level hardware platform in the field of rapid control prototype development. With deep integration with MATLAB/Simulink and abundant I/O resources, this board has a wide range of applications in power electronics, motor drives, new energy generation, and university teaching and research.

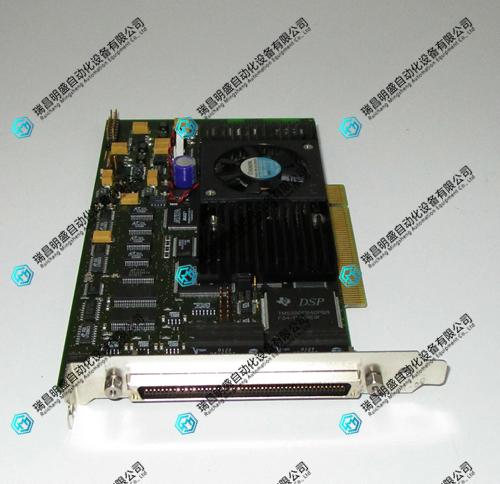

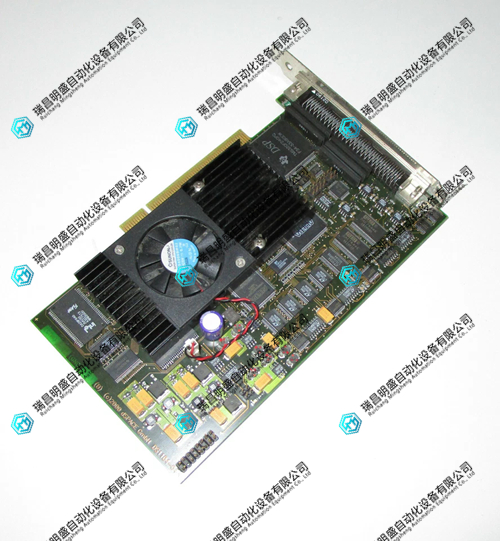

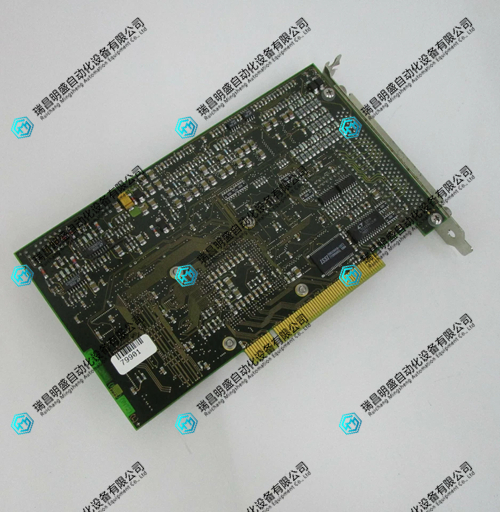

dSPACE GmbH DS1104-04控制板卡 产品图片
