Kistler 9257A 三向测力仪
产品特点
采用石英压电原理，通过四个三成分力传感器分别独立测量 Fx、Fy、Fz 三个方向的力。
刚性和固有频率都很高，固有频率达 4 kHz，能捕捉高速动态现象。
分辨率极低，小于 0.01 N，即使在大力量作用下也能测出微小动态变化。
测量范围 Fx、Fy、Fz 均为 ±5,000 N，分力间相互干扰小于 ±2%。
上板尺寸 100×170 mm，工作温度 0–70°C。
应用领域
车削加工中的切削力测量。
铣削加工中的切削力测量。
磨削加工中的磨削力测量。
切削加工状态评估与工具磨损研究。
增材制造材料的切削性能分析。
风洞模型受力测试。
人机工程学相关的力测量。
小型工具加工时的微小切削力测量。
动态与准静态三向力测量。
实验室切削力研究平台。
总结
Kistler 9257A 是一款基于石英压电原理的三向测力仪，刚性好、固有频率高、分辨率出色，主要用于车削、铣削、磨削等切削加工中的三向力测量，也适用于风洞测试和科研实验中的动态力分析
Kistler 9257A三向测力仪 英文介绍
Kistler 9257A Three way Force Gauge
Product Features
Using the quartz piezoelectric principle, four three component force sensors are used to independently measure the forces in Fx, Fy, and Fz directions.
Both rigidity and natural frequency are high, with a natural frequency of 4 kHz, capable of capturing high-speed dynamic phenomena.
The resolution is extremely low, less than 0.01 N, and even small dynamic changes can be measured under high force.
The measurement range Fx, Fy, and Fz are all ± 5000 N, and the mutual interference between force components is less than ± 2%.
The upper board size is 100 × 170 mm, and the working temperature is 0-70 ° C.
Application Areas
Measurement of cutting force in turning machining.
Measurement of cutting force in milling processing.
Measurement of grinding force in grinding processing.
Assessment of cutting machining status and research on tool wear.
Cutting performance analysis of additive manufacturing materials.
Wind tunnel model stress testing.
Force measurement related to ergonomics.
Measurement of small cutting forces during machining with small tools.
Dynamic and quasi-static triaxial force measurement.
Laboratory cutting force research platform.
Summary
Kistler 9257A is a triaxial force measuring instrument based on quartz piezoelectric principle, with good rigidity, high natural frequency, and excellent resolution. It is mainly used for measuring triaxial forces in cutting processes such as turning, milling, and grinding, and is also suitable for dynamic force analysis in wind tunnel testing and scientific research experiments

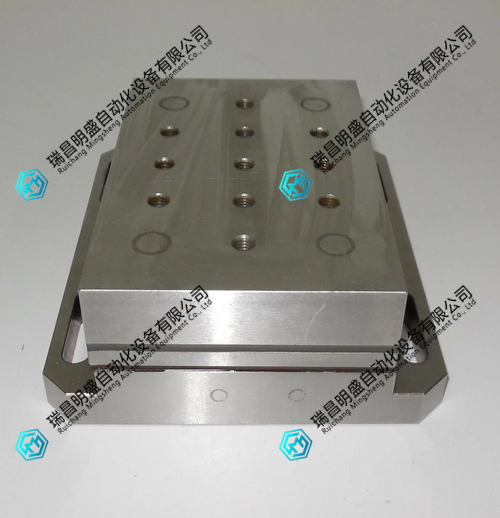

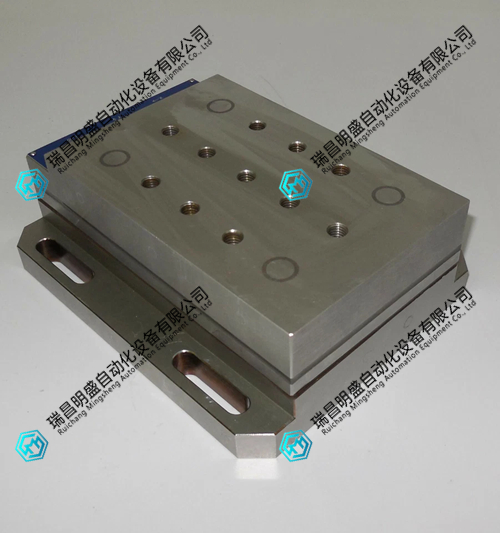

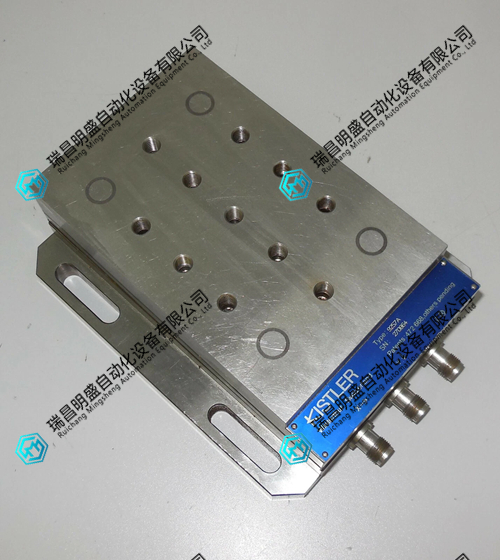

Kistler 9257A三向测力仪 产品图片
