GE IS220PPRFH1B主网关模块 PDF资料
GE IS220PPRFH1B 主网关模块
产品特点
属于 GE Mark VIe 系列，是 PROFIBUS-DP 主站网关模块。
最多支持 125 个从站，每个从站最大 244 字节输入/输出。
配备双冗余以太网口和 PROFIBUS-DP 接口，波特率最高 12 Mbps。
支持单工、双工及三重冗余配置，带板载诊断和自检。
需搭配隔离端子板使用，具备电气隔离和浪涌保护。
应用领域
燃气轮机控制系统。
蒸汽轮机控制系统。
发电厂自动化。
石油与天然气行业。
工业过程控制。
驱动设备与远程 I/O 集成。
智能变送器通信。
危险区域应用。
老旧 Mark VIe 系统的备件替换。
需要将 PROFIBUS 设备接入 Mark VIe 网络的工业场景。
总结
GE IS220PPRFH1B 是 Mark VIe 系统的 PROFIBUS-DP 主站网关，支持多从站连接与冗余配置，主要服务于燃气轮机、发电及工业过程控制领域的现场总线通信集成。
GE IS220PPRFH1B主网关模块 英文介绍
GE IS220PPRFH1B main gateway module
Product Features
Belonging to the GE Mark VIe series, it is a PROFIBUS-DP master station gateway module.
Supports up to 125 slave stations, with a maximum of 244 bytes of input/output per slave station.
Equipped with dual redundant Ethernet ports and PROFIBUS-DP interface, with a maximum baud rate of 12 Mbps.
Supports simplex, duplex, and triple redundancy configurations, with onboard diagnostics and self-test.
It needs to be used with an isolation terminal board, which has electrical isolation and surge protection.
Application Areas
Gas turbine control system.
Steam turbine control system.
Automation of power plants.
The oil and gas industry.
Industrial process control.
Drive equipment and remote I/O integration.
Intelligent transmitter communication.
Application in hazardous areas.
Replacement of spare parts for the old Mark VIe system.
Industrial scenarios where PROFIBUS devices need to be connected to Mark VIe networks.
Summary
GE IS220PPRFH1B is a PROFIBUS-DP master gateway for Mark VIe systems, supporting multi slave connections and redundant configurations. It mainly serves fieldbus communication integration in the fields of gas turbines, power generation, and industrial process control.

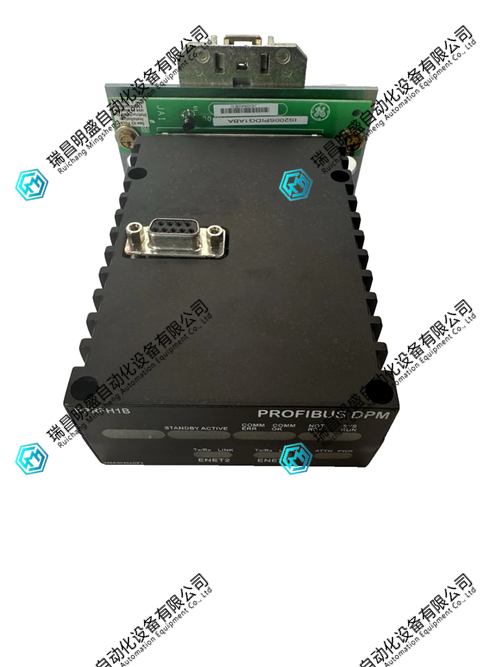

GE IS220PPRFH1B主网关模块 产品图片
