NI USB-6229 197981A-01L数据采集设备 PDF资料
NI USB-6229 197981A-01L 数据采集设备
产品特点
16路差分或32路单端模拟输入，16位分辨率，单通道最高250 kS/s采样率。
4路模拟输出，16位分辨率，更新率最高833 kS/s；48路数字I/O，其中32路可时钟同步至1 MHz。
2个32位计数器/定时器，支持边沿计数、脉冲、周期、正交编码等测量模式。
输入量程±0.2 V、±1 V、±5 V、±10 V可选，输入阻抗大于10 GΩ，CMRR达92 dB。
USB 2.0高速接口，即插即用，该型号为BNC接线盒版本，支持信号流技术实现多通道同步采集与生成。
应用领域
实验室自动化测试与数据记录。
传感器测量与监测。
过程控制与工业自动化。
设计验证与制造测试。
科研数据采集系统。
声学与振动信号分析。
电力电子与电机控制测试。
汽车零部件测试。
便携式现场测量。
多通道同步数据采集场景。
总结
NI USB-6229 197981A-01L 是一款USB M系列多功能数据采集设备，具备16位精度、250 kS/s采样率和丰富的模拟/数字I/O，适用于实验室测试、工业自动化和科研测量等多种场景
NI USB-6229 197981A-01L数据采集设备 英文介绍
NI USB-6229 197981A-01L Data Acquisition Device
Product Features
16 differential or 32 single ended analog inputs, 16 bit resolution, with a maximum sampling rate of 250 kS/s per channel.
4-channel analog output, 16 bit resolution, maximum update rate of 833 kS/s; 48 digital I/O channels, of which 32 can be clock synchronized to 1 MHz.
2 32-bit counters/timers, supporting measurement modes such as edge counting, pulse, cycle, orthogonal encoding, etc.
The input range can be selected from ± 0.2 V, ± 1 V, ± 5 V, ± 10 V, with an input impedance greater than 10 G Ω and a CMRR of 92 dB.
USB 2.0 high-speed interface, plug and play, this model is the BNC junction box version, supporting signal flow technology to achieve multi-channel synchronous acquisition and generation.
Application Areas
Laboratory automation testing and data recording.
Sensor measurement and monitoring.
Process control and industrial automation.
Design validation and manufacturing testing.
Research data collection system.
Acoustic and vibration signal analysis.
Power electronics and motor control testing.
Automotive component testing.
Portable on-site measurement.
Multi channel synchronous data acquisition scenario.
Summary
NI USB-6229 197981A-01L is a USB M-series multifunctional data acquisition device with 16 bit accuracy, 250 kS/s sampling rate, and rich analog/digital I/O. It is suitable for various scenarios such as laboratory testing, industrial automation, and scientific research measurement

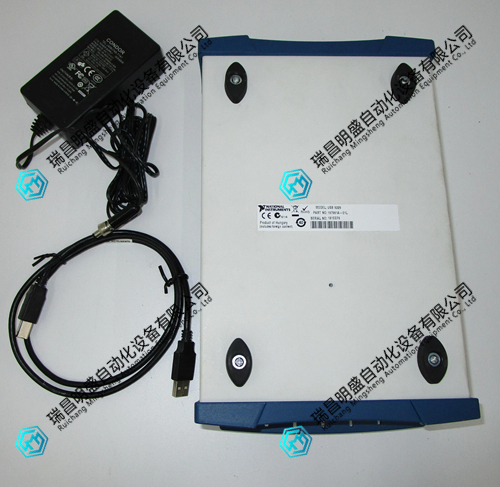

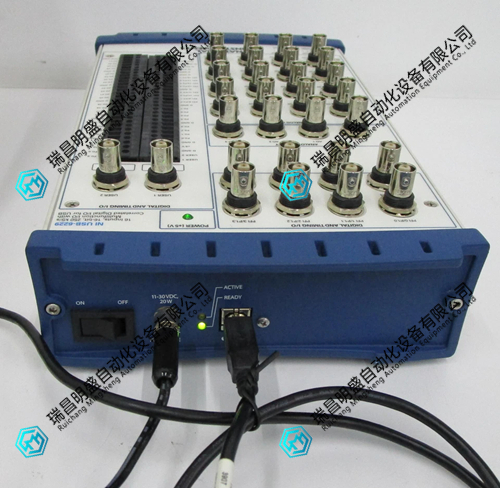

NI USB-6229 197981A-01L数据采集设备 产品图片
