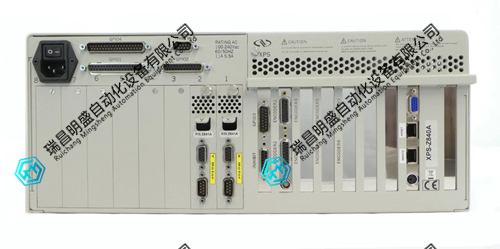

Newport XPS-Z840A 运动控制器
产品概述
Newport XPS-Z840A 是 Newport（现属 MKS Instruments）生产的高性能集成式运动控制器/驱动器，属于 XPS 系列，支持最多 8 轴控制，常用于半导体及精密光学设备的定位系统。
应用领域（6条）
半导体光掩模检测：配套蔡司 Phame PSM 光学相移测量系统使用
精密光学对准：用于光学元件的纳米级定位与调整
半导体制造设备：控制晶圆台、掩模台等精密运动平台
科研仪器：同步辐射光束线、显微成像系统的样品定位
自动化测试系统：需要多轴协调运动的精密测试设备
通用精密运动控制：任何需要高精度多轴定位的工业或科研场景
产品特点（5条）
多轴集成控制：单台支持 1 至 8 轴，兼容步进、直流有刷及无刷电机
高速通信与实时响应：以太网 TCP/IP 通信，位置查询响应约 0.3 ms
强大的轨迹功能：支持直线-圆弧插补、样条曲线、PVT 轨迹及龙门同步
高精度触发与数据采集：触发输出精度 <50 ns，数据采集速率最高 10 kHz
智能配置与保护：自动配置、自动调谐，可识别硬件错接防止设备损坏
总结
Newport XPS-Z840A 运动控制器是 Newport XPS 系列的高性能多轴运动控制产品，广泛应用于半导体光掩模检测、精密光学对准及科研仪器等领域，具备多轴集成、高速通信、强大轨迹功能和智能保护等特点，能有效保障精密定位系统的稳定性与精度。
Newport XPS-Z840A Motion Controller
Product Overview
Newport XPS-Z840A is a high-performance integrated motion controller/driver produced by Newport (now MKS Instruments), belonging to the XPS series, supporting up to 8-axis control, commonly used in positioning systems for semiconductor and precision optical equipment.
Application areas (6 items)
Semiconductor photomask detection: used in conjunction with Zeiss Phame PSM optical phase-shift measurement system
Precision optical alignment: used for nanoscale positioning and adjustment of optical components
Semiconductor manufacturing equipment: control precision motion platforms such as wafer stage and mask stage
Research instruments: synchrotron radiation beamlines, sample positioning for microscopy imaging systems
Automated testing system: precision testing equipment that requires multi axis coordinated motion
Universal precision motion control: Any industrial or scientific research scenario that requires high-precision multi axis positioning
Product features (5 items)
Multi axis integrated control: single unit supports 1 to 8 axes, compatible with stepper, DC brushed and brushless motors
High speed communication and real-time response: Ethernet TCP/IP communication, location query response takes about 0.3 ms
Powerful trajectory function: supports line arc interpolation, spline curve, PVT trajectory, and gantry synchronization
High precision triggering and data acquisition: trigger output accuracy<50 ns, data acquisition rate up to 10 kHz
Intelligent configuration and protection: automatic configuration, automatic tuning, can identify hardware misconnections to prevent device damage
Summary
The Newport XPS-Z840A motion controller is a high-performance multi axis motion control product of the Newport XPS series, widely used in fields such as semiconductor photomask detection, precision optical alignment, and scientific research instruments. It features multi axis integration, high-speed communication, powerful trajectory function, and intelligent protection, effectively ensuring the stability and accuracy of precision positioning systems.
