AE 3152012-041 直流电源模块
产品概述
AE 3152012-041 是 Advanced Energy（AE）生产的 MDX-10K Master 直流电源，用于 AMAT/ENDURA 半导体设备，属于磁控管驱动电源，产地为美国。
应用领域（6条）
半导体制造设备：用于 AMAT/ENDURA 平台的磁控管驱动
PVD 物理气相沉积设备：为溅射靶材提供直流功率
真空镀膜设备：用于磁控溅射镀膜工艺
工业测试系统：为复杂机械和系统提供可调直流电源
军事与科研：用于高可靠性直流供电场景
其他需要精密直流功率控制的设备
产品特点（5条）
大功率输出：输出功率可达 9.9 kW，电压输入范围 17.2 V 至 302 V
全数字调节：具备数字电流和电压调节，输出稳定精确
宽温工作：可在 -40°C 至 +85°C 温度范围内稳定运行
高可靠性：无风扇设计，减少维护，适配远程安装环境
通信接口：配备外部通信端口，可兼容多数工业控制系统
总结
AE 3152012-041 直流电源模块（MDX-10K Master）是 Advanced Energy 专为 AMAT/ENDURA 半导体设备设计的磁控管驱动电源，广泛应用于 PVD 溅射、真空镀膜及工业测试等领域，具备大功率输出、全数字调节和宽温工作等特点，能有效保障工艺功率的稳定性与可靠性。
AE 3152012-041 DC power module
Product Overview
AE 3152012-041 is an MDX-10K Master DC power supply produced by Advanced Energy (AE), used for AMAT/ENDURA semiconductor equipment. It belongs to the magnetron drive power supply and is produced in the United States.
Application areas (6 items)
Semiconductor manufacturing equipment: magnetron drive for AMAT/ENDURA platform
PVD physical vapor deposition equipment: providing DC power for sputtering target materials
Vacuum coating equipment: used for magnetron sputtering coating process
Industrial testing system: providing adjustable DC power supply for complex machinery and systems
Military and scientific research: used in high reliability DC power supply scenarios
Other equipment that requires precise DC power control
Product features (5 items)
High power output: The output power can reach 9.9 kW, and the voltage input range is 17.2 V to 302 V
Full digital regulation: equipped with digital current and voltage regulation, stable and accurate output
Wide temperature operation: can operate stably within the temperature range of -40 ° C to+85 ° C
High reliability: fanless design, reduces maintenance, and adapts to remote installation environments
Communication interface: equipped with external communication ports, compatible with most industrial control systems
Summary
AE 3152012-041 DC Power Module (MDX-10K Master) is a magnetron drive power supply designed by Advanced Energy specifically for AMAT/ENDURA semiconductor equipment. It is widely used in PVD sputtering, vacuum coating, and industrial testing fields, and has the characteristics of high power output, full digital regulation, and wide temperature operation, which can effectively ensure the stability and reliability of process power.

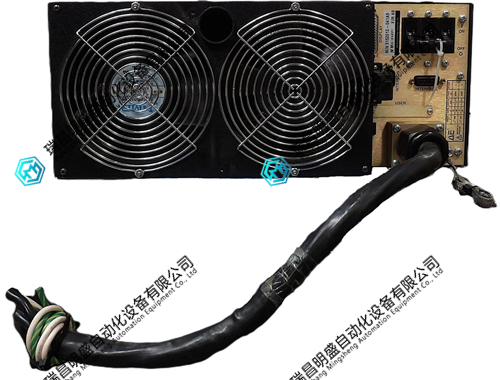

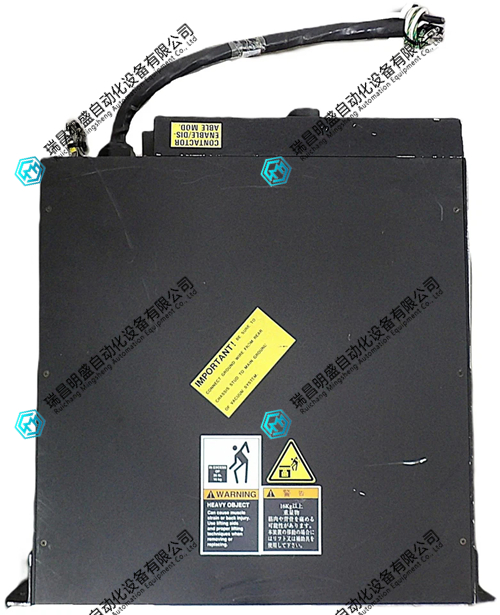

AE 3152012-041直流电源模块 产品图片
