LEYBOLD TURBOTRONIK NT151/361涡轮泵控制器 PDF资料
LEYBOLD TURBOTRONIK NT151/361 涡轮泵控制器
TURBOTRONIK NT 151/361 是德国莱宝（Leybold）公司生产的一款电子频率转换器（涡轮分子泵控制器），专门用于驱动 TURBOVAC 系列涡轮分子泵，属于真空系统中的核心驱动单元。
产品特点（10条）
莱宝（Leybold）原厂制造，德国生产
属于电子频率转换器，用于驱动涡轮分子泵
适配 TURBOVAC 150、151、360、361 及 CSV、V、C 等衍生型号
可通过前面板 START/STOP 按钮手动控制
支持多种运行模式，包括自动启动和外部远程控制
具备继电器输出触点，可检测 NORMAL 运行状态
内置自检与初始化功能，上电后自动识别泵型
支持长达 100 米的泵体连接线缆
可安装于 19 英寸机架，也可作为桌面式使用
前面板 LED 指示加速状态，便于观察运行情况
产品参数（5条）
型号：TURBOTRONIK NT 151/361
品牌：LEYBOLD（莱宝）
电源：100/120/220/240 V 可切换，±10%，50/60 Hz
电机输出：3×42 V，电流限制 5 A
转速：TURBOVAC 151 为 50,000 rpm（833 Hz），361 为 45,000 rpm（750 Hz）
总的来说，TURBOTRONIK NT 151/361 是一款用于驱动 TURBOVAC 151/361 涡轮分子泵的控制器，具备多种控制模式和状态监测功能，适合半导体、镀膜、电子显微镜等高真空应用场景
LEYBOLD TURBOTRONIK NT151/361涡轮泵控制器 英文介绍
LEYBOLD TURBOTRONIK NT151/361 Turbopump Controller
TURBOTRONIK NT 151/361 is an electronic frequency converter (turbo molecular pump controller) produced by Leybold, Germany. It is specifically designed to drive the TURBOVAC series turbo molecular pumps and is a core driving unit in vacuum systems.
Product features (10 items)
Leybold original factory manufacturing, produced in Germany
Belonging to electronic frequency converters, used to drive turbo molecular pumps
Compatible with TURBOVAC 150, 151, 360, 361 and derivative models such as CSV, V, C, etc
Can be manually controlled through the START/STOP button on the front panel
Supports multiple operating modes, including automatic startup and external remote control
Equipped with relay output contacts, capable of detecting NORMAL operating status
Built in self check and initialization function, automatically recognizes pump type after power on
Support pump body connection cables up to 100 meters in length
Can be installed on a 19 inch rack or used as a desktop
The front panel LED indicates the acceleration status, making it easy to observe the operation
Product parameters (5 items)
Model: TURBOTRONIK NT 151/361
Brand: LEYBOLD
Power supply: 100/120/220/240 V switchable, ± 10%, 50/60 Hz
Motor output: 3 × 42 V, current limit 5 A
Speed: TURBOVAC 151 is 50000 rpm (833 Hz), 361 is 45000 rpm (750 Hz)
Overall, TURBOTRONIK NT 151/361 is a controller used to drive TURBOVAC 151/361 turbomolecular pumps, with multiple control modes and status monitoring functions, suitable for high vacuum applications such as semiconductors, coatings, and electron microscopes

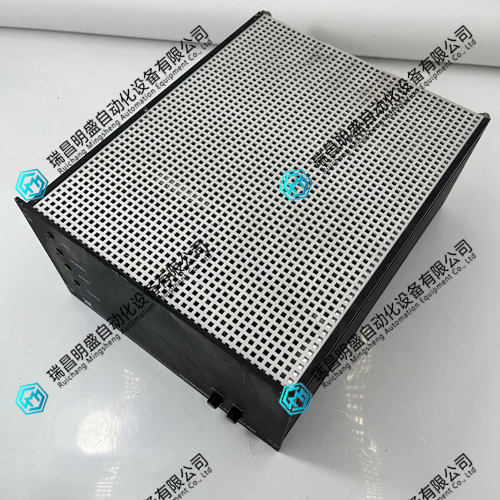

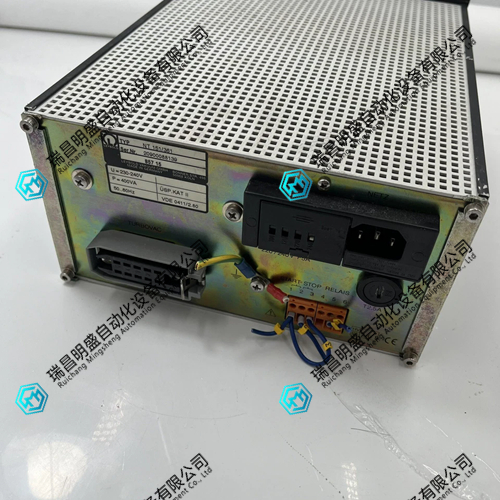

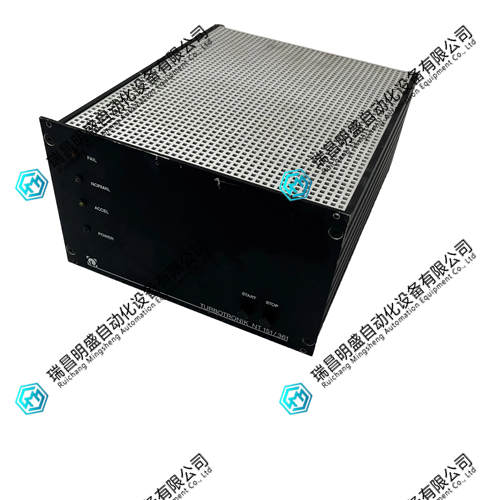

LEYBOLD TURBOTRONIK NT151/361涡轮泵控制器 产品图片
