TDK HWS1000-48 电源模块 PDF资料
1.产 品 资 料 介 绍：
TDK HWS1000-48 是 TDK-Lambda 推出的一款 1000W 级 AC-DC 开关电源模块，以单路 48V 输出和高可靠性著称，适用于工业与商业设备。以下是该型号的核心特点与应用领域：
产品特点
额定输出功率 1056W，峰值功率可达 1104W。
单路 48V 直流输出，最大输出电流 22A，峰值电流 29.2A。
宽输入电压范围，支持 85~265V AC 或 120~330V DC。
典型效率达 88%，工作温度范围 -10℃ 至 71℃。
封闭式金属外壳，尺寸 240×126.5×82mm，重量约 3.2kg。
具备 3kV 输入输出隔离电压，符合多项安全认证标准。
内置过流、过压保护，支持远程开关、遥测及输出可调功能。
满足 SEMI F47 电压跌落抗扰度标准，坚固耐用。
应用领域
工业自动化设备与过程控制系统的供电。
半导体制造设备与测试测量仪器。
通信基站、网络设备及 VoIP 系统的电源支持。
生产线自动化与机器人控制柜的供电。
新能源与储能系统的电源管理。
医疗设备的供电（对应医疗级版本）。
快速充电桩的电源模块。
信息与通讯技术设备的商用电源。
结尾
综上所述，TDK HWS1000-48 凭借大功率输出、宽电压输入及多重保护特性，是工业自动化、通信与测试测量等领域中高可靠性供电方案的理想选择。
TDK HWS1000-48 电源模块 英文介绍
TDK HWS1000-48 is a 1000W level AC-DC switching power module launched by TDK Lambda, known for its single 48V output and high reliability, suitable for industrial and commercial equipment. The following are the core features and application areas of this model:
Product Features
The rated output power is 1056W, and the peak power can reach 1104W.
Single channel 48V DC output, maximum output current of 22A, peak current of 29.2A.
Wide input voltage range, supporting 85-265V AC or 120-330V DC.
The typical efficiency reaches 88%, with a working temperature range of -10 ℃ to 71 ℃.
Enclosed metal casing, size 240 × 126.5 × 82mm, weight approximately 3.2kg.
Equipped with 3kV input and output isolation voltage, it meets multiple safety certification standards.
Built in overcurrent and overvoltage protection, supporting remote switching, telemetry, and adjustable output functions.
Meets the SEMI F47 voltage drop immunity standard and is sturdy and durable.
Application Domain
Power supply for industrial automation equipment and process control systems.
Semiconductor manufacturing equipment and testing and measuring instruments.
Power support for communication base stations, network equipment, and VoIP systems.
Power supply for production line automation and robot control cabinets.
Power management of new energy and energy storage systems.
Power supply for medical equipment (corresponding to medical grade version).
The power module of the fast charging station.
Commercial power supply for information and communication technology equipment.
ending
In summary, TDK HWS1000-48 is an ideal choice for high reliability power supply solutions in industrial automation, communication, and testing and measurement fields due to its high power output, wide voltage input, and multiple protection characteristics.

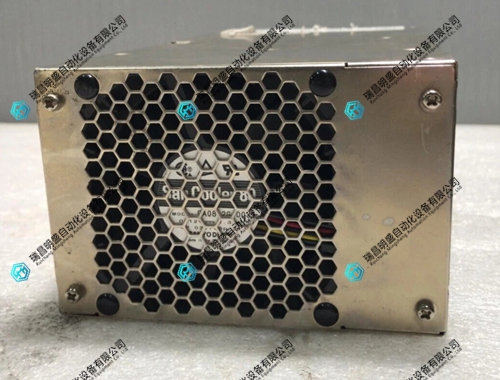

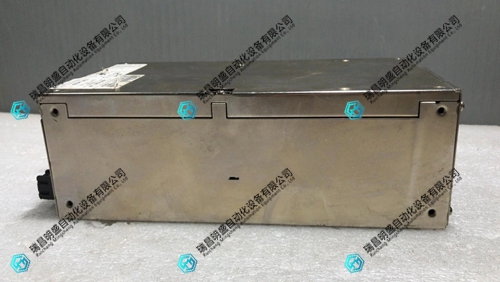

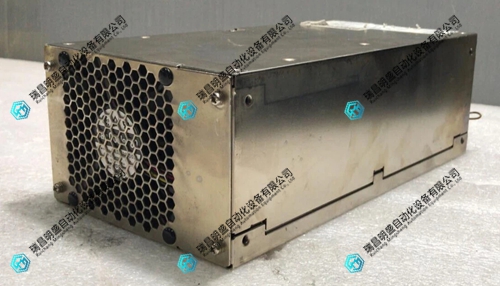

TDK HWS1000-48 电源模块 产品图片
