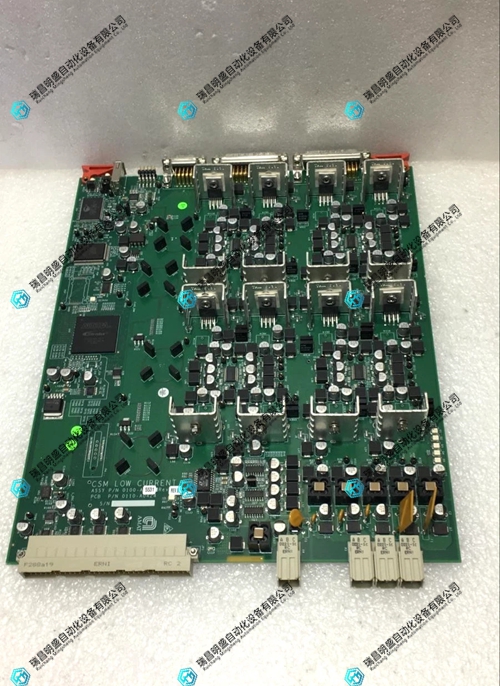

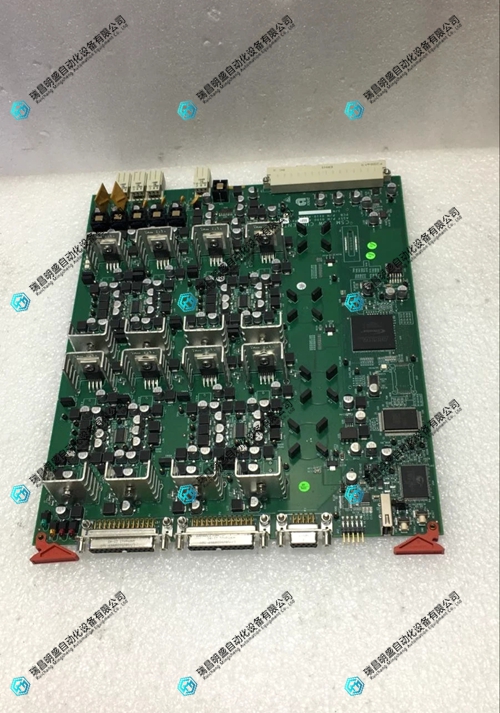

AMAT 0100-A5531 印刷电路板 PDF资料
1.产 品 资 料 介 绍：
AMAT 0100-A5531 印刷电路板是应用材料晶圆工艺设备专用的控制板卡，负责信号采集与模块控制，以下为其核心特点与应用领域概述。
产品特点
原厂适配Centura系列刻蚀、沉积真空机台背板插槽。
多层精密布线，同时承载数字与模拟信号传输。
内置信号隔离与滤波，抵御腔体射频干扰。
集成过压、短路、静电防护，保护板载元件。
沉金金手指接口，插拔耐磨且接触稳定。
各通道独立隔离，单路故障不影响整机运行。
配套状态指示灯，便于快速定位通道异常。
采用工业耐高温基板，支持全天候不间断工作。
产品应用领域
适配AMAT Centura系列刻蚀与沉积设备。
用于半导体真空机台的信号采集与控制。
晶圆制造过程中的模块控制与信号传输。
半导体产线设备的维保与备件替换。
需高抗干扰性能的刻蚀与沉积工艺机台。
设备改造升级中的控制板卡替换。
半导体设备日常维护的备件储备。
半导体工厂现场的设备故障维修。
结尾
AMAT 0100-A5531 印刷电路板作为AMAT Centura系列设备的专用控制板卡，具有抗干扰、信号稳定、耐高温等特点，适用于半导体刻蚀与沉积设备的信号采集与控制场景。
AMAT 0100-A5531 printed circuit board is a control board specifically designed for wafer processing equipment, responsible for signal acquisition and module control. The following is an overview of its core features and application areas.
Product Features
Original factory compatible Centura series etching and deposition vacuum machine backplate slots.
Multi layer precision wiring, carrying both digital and analog signal transmission simultaneously.
Built in signal isolation and filtering to resist cavity RF interference.
Integrate overvoltage, short circuit, and electrostatic protection to protect onboard components.
Deep gold finger interface, wear-resistant and stable contact during insertion and removal.
Each channel is independently isolated, and a single fault does not affect the overall operation of the machine.
Equipped with status indicator lights for quick identification of channel anomalies.
Adopting industrial high-temperature resistant substrates, supporting uninterrupted operation around the clock.
Product application areas
Compatible with AMAT Centura series etching and deposition equipment.
Used for signal acquisition and control of semiconductor vacuum machines.
Module control and signal transmission in wafer manufacturing process.
Maintenance and replacement of spare parts for semiconductor production line equipment.
Etching and deposition process machines with high anti-interference performance are required.
Replacement of control boards in equipment renovation and upgrading.
Spare parts reserve for daily maintenance of semiconductor equipment.
Maintenance of equipment malfunctions at semiconductor factory sites.
ending
The AMAT 0100-A5531 printed circuit board, as a dedicated control board for the AMAT Centura series equipment, has the characteristics of anti-interference, signal stability, and high temperature resistance, and is suitable for signal acquisition and control scenarios in semiconductor etching and deposition equipment.
