B&R 050005082-04 PC 总线板 PDF资料
1.产 品 资 料 介 绍：

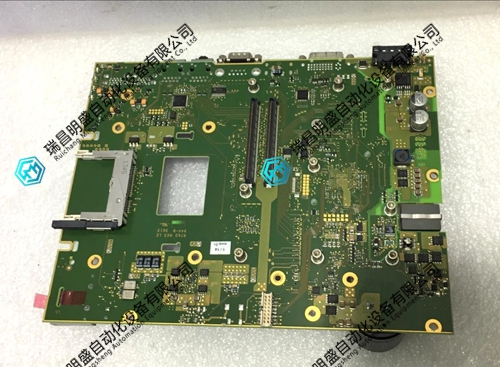

B&R 050005082-04 PC 总线板
产品特点
属于B&R工业PC专用总线扩展板卡。
采用标准PCI半尺寸规格，支持即插即用。
适用于B&R Automation PC和Panel PC系列工控机。
支持在标准台式机PCI插槽中安装使用。
提供X2X Link主站接口，用于连接B&R I/O系统。
集成CAN总线通信接口，最高速率500 kbit/s。
总线与PC端实现电气隔离，增强抗干扰能力。
配备板载电池供电的SRAM缓存，用于数据缓冲。
带就绪继电器输出，用于系统状态监控。
通过LED指示灯和软件进行诊断，便于故障排查。
应用领域
B&R工业PC现场总线通信接口扩展。
X2X Link网络的控制器与I/O从站连接。
CANopen总线网络的设备通信与数据交互。
工业自动化生产线控制系统集成。
B&R Automation PC或Panel PC的功能扩展配置。
需要高速、可靠数据传输的实时控制场景。
总结
050005082-04是B&R专为工业PC设计的PCI总线扩展板，提供X2X Link和CAN双总线接口，具备电气隔离与板载缓存，适用于B&R工控机系统的现场总线通信与I/O扩展场景。
B&R 050005082-04 PC Bus Board
Product Features
Belongs to B&R industrial PC dedicated bus expansion board.
Adopting standard PCI half size specifications, supporting plug and play functionality.
Suitable for B&R Automation PC and Panel PC series industrial computers.
Supports installation and use in standard desktop PCI slots.
Provide X2X Link main station interface for connecting B&R I/O system.
Integrated CAN bus communication interface, with a maximum speed of 500 kbit/s.
The bus and PC end are electrically isolated to enhance anti-interference capability.
Equipped with onboard battery powered SRAM cache for data buffering.
Equipped with a ready relay output for system status monitoring.
Diagnose through LED indicator lights and software for easy troubleshooting.
Application Domain
Expansion of B&R industrial PC fieldbus communication interface.
The controller of X2X Link network is connected to the I/O slave station.
Device communication and data exchange in CANopen bus network.
Integration of industrial automation production line control system.
Function expansion configuration for B&R Automation PC or Panel PC.
Real time control scenarios that require high-speed and reliable data transmission.
summary
050005082-04 is a PCI bus expansion board designed by B&R specifically for industrial PCs, providing X2X Link and CAN dual bus interfaces, with electrical isolation and onboard cache, suitable for fieldbus communication and I/O expansion scenarios in B&R industrial computer systems.
