TOYODA PRS-3140C MG-U050T电路板 PDF资料
TOYODA PRS-3140C 定位附加板的特点和应用领域
产品特点
属于 TOYODA（丰田）自动化控制系统中的定位附加板。
部分资料将其标识为 TOYODA / Sanyo Denki（三洋电机）联合品牌。
作为扩展功能模块，与主控制板或运动控制系统配合使用。
提供高精度定位控制和位置检测功能。
支持编码器、光电传感器、磁性开关等位置检测信号输入。
定位分辨率可达微米级，取决于所配置传感器的精度。
配备高速数字接口，支持 RS-422、CAN 或专用总线等工业通信协议。
具备毫秒级实时处理能力。
工作电压为 DC 5V 或 DC 12V。
工作温度范围 -10℃ 至 +55℃，具备抗振动和防尘设计。
应用领域
用于工业机器人关节式及直角坐标机器人的精确定位控制。
应用于自动化装配线，对工件位置进行实时检测与调整。
用于 CNC 机床、激光切割、精密打孔等高精度定位设备。
应用于输送与分拣系统，实现动态位置捕捉和定点停靠。
综上，TOYODA PRS-3140C 是丰田自动化控制系统中的一块定位附加板卡，主要承担高精度位置检测与定位控制任务，应用于工业机器人、自动化产线及精密加工设备的位置控制环节
TOYODA PRS-3140C MG-U050T电路板 英文介绍
Characteristics and application areas of TOYODA PRS-3140C positioning attachment board
Product Features
Belonging to the TOYODA automation control system, it is a positioning add-on board.
Some materials label it as a TOYODA/Sanyo Denki joint brand.
As an extended functional module, it can be used in conjunction with the main control board or motion control system.
Provide high-precision positioning control and position detection functions.
Supports position detection signal input for encoders, photoelectric sensors, magnetic switches, and other devices.
The positioning resolution can reach micrometer level, depending on the accuracy of the configured sensors.
Equipped with high-speed digital interfaces, supporting industrial communication protocols such as RS-422, CAN, or dedicated buses.
Capable of millisecond level real-time processing.
The working voltage is DC 5V or DC 12V.
The working temperature range is -10 ℃ to+55 ℃, with anti vibration and dust-proof design.
Application Areas
Used for precise positioning control of articulated and Cartesian robots in industrial robots.
Applied to automated assembly lines, real-time detection and adjustment of workpiece positions.
Used for high-precision positioning equipment such as CNC machine tools, laser cutting, and precision drilling.
Applied to conveying and sorting systems, achieving dynamic position capture and fixed-point parking.
In summary, TOYODA PRS-3140C is a positioning additional board in Toyota's automation control system, mainly responsible for high-precision position detection and positioning control tasks, applied in the position control process of industrial robots, automation production lines, and precision machining equipment

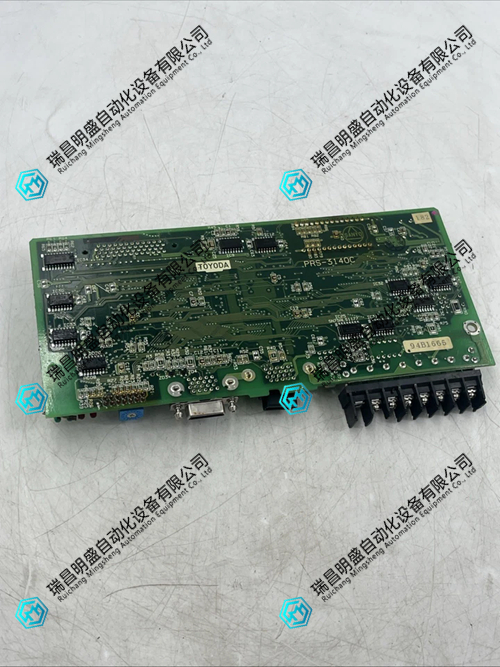

TOYODA PRS-3140C MG-U050T电路板 产品图片
