NORDSON 207024输入/输出板组件 PDF资料

1.产 品 资 料 介 绍：

先唠两句

NORDSON 207024 是诺信热熔胶机系统里的一块输入/输出板组件，官方描述叫 Inside Electrical Cabinet I/O Board F. Ipc。说白了就是装在电控柜里，负责信号进出和逻辑控制的核心板卡。

产品特点

1 专为诺信热熔胶机系统设计，属于 AltaBlue 系列配套的 I/O 控制板
2 安装在电气柜内部，作为胶机控制系统的信号中枢
3 支持可编程的离散 I/O 功能，输入输出通道可灵活配置
4 跟诺信的图形面板配合使用，负责系统状态显示和控制逻辑执行
5 属于工业级板卡备件，市面上流通的基本是库存件或拆机件

产品参数

1 标准 I/O 配置为 3 个标准输出加 4 个标准输入，功能可编程
2 配套系统支持镍 120 欧姆 RTD 或白金 100 欧姆 RTD 温度传感器
3 系统电气服务为 200 至 240 VAC 三相，50/60 Hz
4 工作环境温度范围 0 到 50°C，工业现场标准要求
5 外形和针脚定义公开资料很少，具体得看原板子或诺信原厂手册

应用领域

1 诺信 AltaBlue 系列热熔胶机的电控系统
2 精密喷涂和点胶产线的胶路控制
3 汽车线束、包装、无纺布等行业的胶机设备
4 老旧诺信胶机的维修替换，属于停产但还得用的备件
5 配合诺信可编程离散 I/O 和通信协议做系统集成

总结

NORDSON 207024 就是诺信热熔胶机电气柜里的 I/O 控制板，负责信号进出和逻辑控制，配套 AltaBlue 系列胶机使用

NORDSON 207024输入/输出板组件  英文介绍

Let's have a few words first

NORDSON 207024 is an input/output board component in the Nordson hot melt adhesive machine system, officially described as Inside Electrical Cabinet I/O Board F. Ipc. Simply put, it is the core board installed in the electrical control cabinet, responsible for signal input and logic control.

Product Features

1. Designed specifically for the Nordson hot melt adhesive machine system, it is an I/O control board that comes with the AltaBlue series

Installed inside the electrical cabinet as the signal center for the glue machine control system

3 supports programmable discrete I/O functions, and input/output channels can be flexibly configured

4. Used in conjunction with Nuoxin's graphic panel, responsible for displaying system status and executing control logic

5 belongs to industrial grade board spare parts, and the ones circulating on the market are mainly inventory parts or disassembled parts

Product Specifications

The standard I/O configuration consists of 3 standard outputs and 4 standard inputs, with programmable functionality

2 supporting systems support nickel 120 ohm RTD or platinum 100 ohm RTD temperature sensors

The electrical service of the 3 systems is 200 to 240 VAC three-phase, 50/60 Hz

4. Working environment temperature range: 0 to 50 ° C, industrial site standard requirements

There is very little public information on the definition of the appearance and pins of 5, and specific details can be found in the original board or Norsen's factory manual

Application Areas

The electronic control system of the AltaBlue series hot melt adhesive machine from Noxin

Glue path control for precision spraying and dispensing production lines

3. Adhesive machine equipment for automotive wiring harness, packaging, non-woven fabric and other industries

The maintenance and replacement of old Noxin glue machines are spare parts that have been discontinued but still need to be used

5. Collaborate with Nordson programmable discrete I/O and communication protocols for system integration

Summary

NORDSON 207024 is the I/O control board in the Nuoxin hot melt adhesive mechanical and electrical cabinet, responsible for signal input and logic control, used in conjunction with AltaBlue series adhesive machines

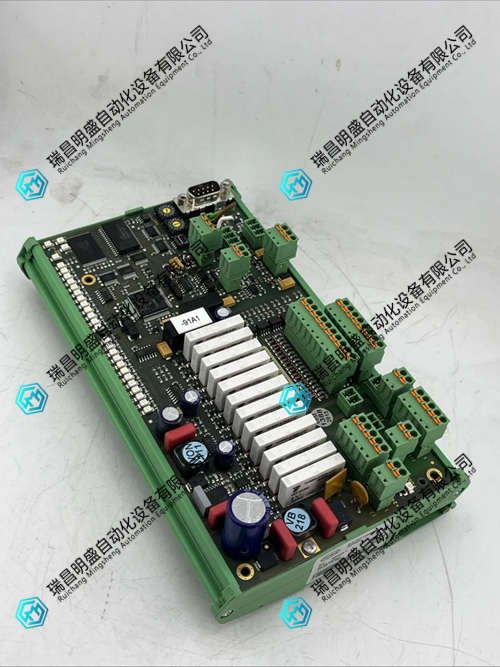

NORDSON 207024输入/输出板组件 产品图片
