ATLAS COPCO 8432 0850 00控制器面板 PDF资料

1.产 品 资 料 介 绍：

ATLAS COPCO 8432 0850 00 是阿特拉斯·科普柯 MicroTorque 系列里的一款控制器面板，准确说是 MT Focus 400A 控制与驱动单元的前面板操作模块。

产品特点

MT Focus 400A 配套面板
这是 MT Focus 400A 控制器上的操作界面模块，控制器本身是拧紧工具的驱动和控制单元，这块面板负责人机交互。
状态指示灯直观
面板上有 STATUS 指示灯，绿色表示拧紧合格，蓝色表示批次完成，红色表示出错，操作工看一眼就知道结果。
按键操作简单
通过 UP 和 DOWN 按键选择菜单项，OK 键确认并开关控制器，操作逻辑直接。
支持 Auto-start
可以在面板菜单里启用或关闭 Auto-start 功能，启用后插入工具自动开始工作，用非磁性物体插前面小孔就能临时停用。
可拆卸显示模块
显示模块是插接件连接，通过扁平电缆接到主板上，损坏可以单独更换。

产品参数

适配型号
MT Focus 400A 控制与驱动单元，零件号 8432085000。
供电与功率
控制器整体 240 W 功率。
接口配置
RS232-C 串口 3 针，VP 真空泵接口 5 针，I/O 数字输入。
安装方式
控制器表面安装，面板模块通过扁平电缆与主板连接。

应用领域

工业拧紧装配线
MT Focus 400A 是拧紧工具控制器，面板用在产线上监控拧紧过程和结果，汽车装配、电子组装等场景常见。
质量追溯工位
STATUS 灯和批次计数功能帮助操作工确认每个拧紧点是否合格，适合有质量追溯要求的工位。
工具控制器维修替换
MT Focus 400A 的显示面板损坏时，8432 0850 00 作为替换件更换，不用换整个控制器。
二手设备流通
这块面板在二手市场有流通，适合预算有限的维修场景。

ATLAS COPCO 8432 0850 00 就是 MT Focus 400A 拧紧工具控制器的操作面板模块，负责状态显示和参数设置

ATLAS COPCO 8432 0850 00控制器面板  英文介绍

ATLAS COPCO 8432 0850 00 is a controller panel in Atlas Copco MicroTorque series, which is exactly the front panel operation module of MT Focus 400A control and drive unit.

Product Features

MT Focus 400A matching panel

This is the operation interface module on the MT Focus 400A controller. The controller itself is the driving and control unit of the tightening tool, and this panel is responsible for human-machine interaction.

The status indicator light is intuitive

There is a STOP indicator light on the panel. Green indicates that the tightening is qualified, blue indicates that the batch is completed, and red indicates an error. The operator can see the result at a glance.

Easy button operation

Select menu items through the UP and DOWN buttons, confirm with the OK button and turn on/off the controller, with direct operation logic.

Support Auto start

You can enable or disable the Auto start function in the panel menu. Once enabled, the insertion tool will automatically start working, and you can temporarily disable it by inserting a non-magnetic object into the small hole in front.

Detachable display module

The display module is connected by a plug-in connector, which is connected to the motherboard through a flat cable. If it is damaged, it can be replaced separately.

Product Specifications

Compatible Models

MT Focus 400A control and drive unit, part number 8432085000.

Power Supply and Power

The overall power of the controller is 240 W.

interface configuration

RS232-C serial port 3-pin, VP vacuum pump interface 5-pin, I/O digital input.

Installation Method

The controller is surface mounted, and the panel module is connected to the motherboard through a flat cable.

Application Areas

Industrial tightening assembly line

The MT Focus 400A is a tightening tool controller, and the panel is used to monitor the tightening process and results on the production line. It is commonly used in automotive assembly, electronic assembly, and other scenarios.

Quality traceability station

The STATUS light and batch counting function help operators confirm whether each tightening point is qualified and suitable for workstations with quality traceability requirements.

Repair and replacement of tool controller

When the display panel of MT Focus 400A is damaged, 8432 0850 00 can be replaced as a replacement part without replacing the entire controller.

Circulation of second-hand equipment

This panel is in circulation in the second-hand market and suitable for maintenance scenarios with limited budgets.

ATLAS COPCO 8432 0850 00 is the operation panel module of the MT Focus 400A tightening tool controller, responsible for status display and parameter settings

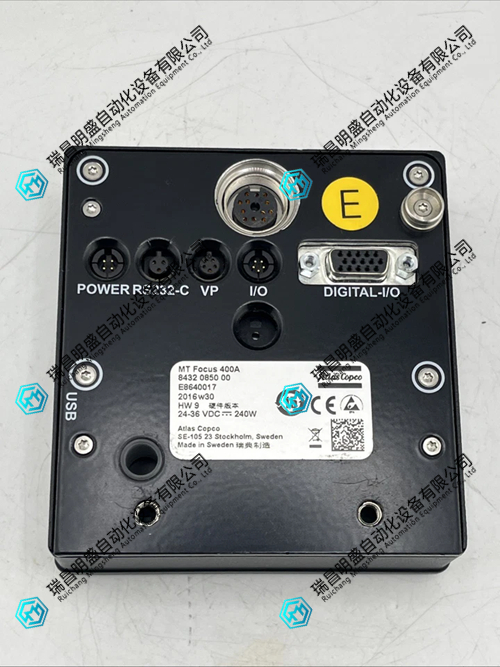

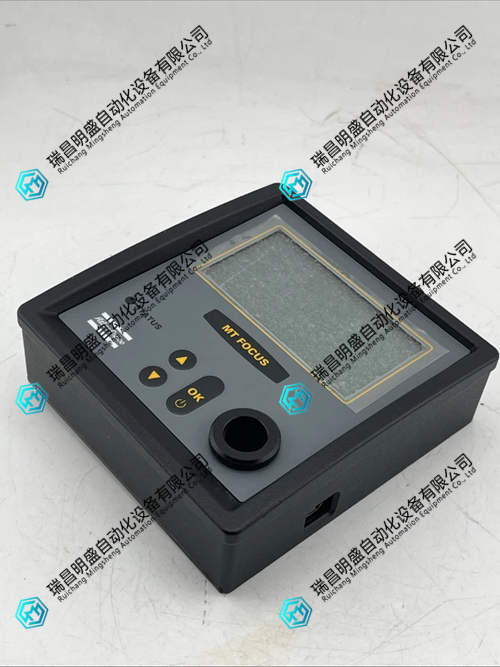

ATLAS COPCO 8432 0850 00控制器面板 产品图片
