WEST P6100 2700020 S140 温度控制器 PDF资料
WEST P6100 2700020 S140 是英国 West Instruments 的一款 1/16 DIN 面板安装式 PID 温度控制器，属于 P6100 系列。型号里的编码对应供电和输出配置，2700020 对应 24V 供电和线性输出。
产品特点
1/16 DIN 紧凑尺寸
面板 48 x 48 毫米，标准小型温控表规格，适合控制柜里点位密集的安装。
通用输入兼容性强
支持多种热电偶、3 线 PT100 和 0-20mA、4-20mA、0-10V 线性信号，换传感器不用换控制器。
PID 自整定控制
支持预整定、自整定和手动整定，也能切 ON/OFF 模式，按工艺要求灵活选。
加热冷却双输出
可以配成单加热或加热冷却双输出，既需要升温又需要降温的场合能用。
无跳线自动配置
上电自动识别安装的模块，不用手动设跳线拨码，调试省事也减少误配置。
产品参数
面板尺寸
1/16 DIN，48 x 48 毫米。
供电电压
24V 版本。
输入类型
热电偶、3 线 PT100、0-20mA、4-20mA、0-10V。
输出配置
线性输出。
精度与采样
输入范围正负 0.1%，采样每秒 4 次。
防护与环境
前面板 IP66，背部 IP20，工作温度 0 到 55 度。
应用领域
塑料挤出机
料筒和模头分段控温，稳定熔融温度。
模温机冷水机
注塑压铸配套模温控制，加热冷却双向调节。
小型实验炉
实验室热处理炉、回火炉的温度管控。
化工设备
反应釜、加热槽等过程温度调节，通用输入适配不同传感器。
实验分析设备
材料测试、热分析仪器等需要精确控温的场合。
WEST P6100 2700020 S140 就是 1/16 DIN 通用 PID 温控器，24V 供电、线性输出。选型时确认供电电压和输出类型跟系统匹配就行。
WEST P6100 2700020 S140 温度控制器 英文介绍
WEST P6100 2700020 1408 is a 1/16 DIN panel mounted PID temperature controller from West Instruments in the UK, belonging to the P6100 series. The code in the model corresponds to the power supply and output configuration, with 2700020 corresponding to 24V power supply and linear output.
Product Features
1/16 DIN compact size
Panel size 48 x 48mm, standard small temperature control meter specification, suitable for installation with dense points in control cabinets.
Strong universal input compatibility
Supports multiple thermocouples, 3-wire PT100, and linear signals of 0-20mA, 4-20mA, and 0-10V, without the need to replace the controller when changing sensors.
PID self-tuning control
Supports pre setting, self-tuning, and manual setting, and can also switch to ON/OFF mode, allowing for flexible selection according to process requirements.
Heating and cooling dual output
It can be configured with single heating or dual output heating and cooling, and can be used in situations where both heating and cooling are required.
Automatic configuration without jumper wires
The module that automatically recognizes installation when powered on does not require manual setting of jumper wires and dialing codes, making debugging easier and reducing misconfigurations.
Product Specifications
Panel Size
1/16 DIN, 48 x 48 millimeters.
power supply voltage
24V version.
input type
Thermocouple, 3-wire PT100, 0-20mA, 4-20mA, 0-10V.
Output Configuration
Linear output.
Accuracy and Sampling
Input range plus or minus 0.1%, sampling 4 times per second.
Protection and Environment
Front panel IP66, back IP20, working temperature from 0 to 55 degrees.
Application Areas
Plastic extruder
Segmented temperature control of the material barrel and mold head to stabilize the melting temperature.
Mold temperature machine chiller
Injection molding and die-casting are equipped with mold temperature control and bidirectional adjustment of heating and cooling.
Small experimental furnace
Temperature control of laboratory heat treatment furnaces and tempering furnaces.
chemical equipment
The temperature of reaction kettle, heating tank and other processes is adjusted, and the universal input is adapted to different sensors.
Experimental analysis equipment
In situations where precise temperature control is required, such as material testing and thermal analysis instruments.
WEST P6100 2700020 1408 is a 1/16 DIN universal PID temperature controller with 24V power supply and linear output. Just confirm that the power supply voltage and output type match the system when selecting.

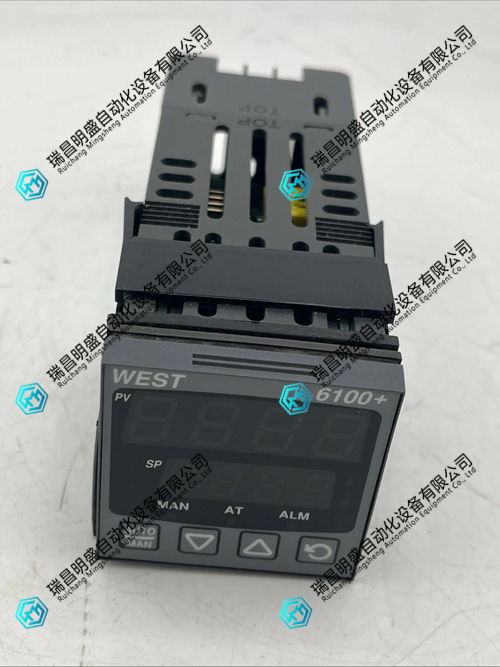

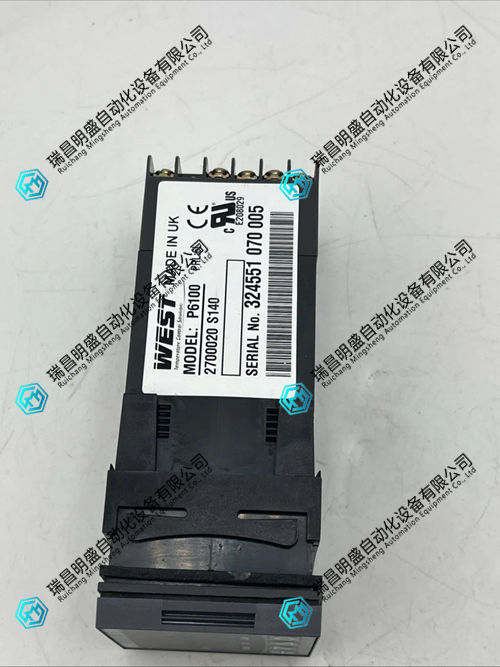

WEST P6100 2700020 S140 温度控制器 产品图片
