TEWS TECHNOLOGIES TIP866-10R 8通道串行接口板 PDF资料
TEWS TECHNOLOGIES TIP866-10R 是一块 IndustryPack 规格的八通道 RS232 串行接口板，主要给嵌入式系统扩展多路串口用。它本身是 IP 模块，得插在载板上工作，通过 50 针扁平电缆连到转接模块才能把八个串口引出来。
产品特点
八通道 RS232
一块板子提供八个独立 RS232 串口，每通道有 RxD、TxD、RTS、CTS 和 GND。通道 1 和 2 还多 DTR、DSR、DCD、RI。
每通道独立 FIFO
每个通道配 64 字节发送 FIFO 加 64 字节接收 FIFO，触发阈值可编程，能减少 CPU 伺候收发器的开销。
波特率单独可调
每通道波特率独立编程，最高 115.2 kbaud。用 ST16C654 四通道 UART，两个芯片管八个口。
ESD 防护
RS232 收发器带静电保护，空气放电正负 15 kV，接触放电正负 6 到 8 kV。
自动配置
板上有 Identification-PROM，载板上电后自动识别配置，不用手动设跳线。
产品参数
接口标准
IndustryPack 单宽 IP 模块，50 针扁平电缆连载板。
通道信号
八通道异步串行，RS232 电平，每通道 RxD、TxD、RTS、CTS、GND。
FIFO
每通道 64 字节发送加 64 字节接收。
波特率
每通道独立可编程，最高 115.2 kbaud。
功耗温度
典型功耗 40 mA @ +5V。工作温度 0 到 +70 度，存储温度负 40 到正 125 度。
应用领域
嵌入式多串口扩展
工控机或 VME 系统串口不够用时，插一块就多出八个 RS232 口。
多设备串行通信
同时跟多台 PLC、仪表、条码阅读器或调制解调器通信的场合。
协议转换网关
配合载板 CPU，可以做成串口到以太网、串口到现场总线的转换设备。
测试数据采集
实验室或产线同时采集多路串口数据，独立 FIFO 减少丢数据。
旧设备维护替换
老嵌入式系统用的 IP 串口模块坏了，TIP866-10R 作为标准产品可以替换。
这块 TIP866-10R 是纯 RS232 版本，现场需要更长距离或更好抗干扰的话，同系列 TIP866-20R 走 RS422 更合适。另外它本身是 IP 模块，得配载板和转接模块才能实际用起来。
TEWS TECHNOLOGIES TIP866-10R 8通道串行接口板 英文介绍
TEWS Technologies TIP866-10R is an eight channel RS232 serial interface board with Industry Pack specifications, mainly used for expanding multiple serial ports in embedded systems. It is an IP module and needs to be plugged into the carrier board to work. It can only be connected to the adapter module through a 50 pin flat cable to bring out the eight serial ports.
Product Features
Eight channel RS232
One board provides eight independent RS232 serial ports, each with RxD, TxD, RTS, CTS, and GND. Channels 1 and 2 also have DTR, DSR, DCD, and RI.
Independent FIFO for each channel
Each channel is equipped with a 64 byte transmit FIFO and a 64 byte receive FIFO. The trigger threshold is programmable, which can reduce the overhead of CPU serving the transceiver.
The baud rate is individually adjustable
Each channel baud rate is independently programmed, with a maximum of 115.2 kbaud. Use ST16C654 four channel UART with two chips and eight ports.
ESD protection
RS232 transceiver with electrostatic protection, air discharge positive or negative 15 kV, contact discharge positive or negative 6 to 8 kV.
auto-configuration
There is an Identification PROM on the board, which automatically recognizes the configuration after the carrier board is powered on, without the need to manually set jumper wires.
Product Specifications
Interface Standard
IndustriePack single width IP module, 50 pin flat cable carrier board.
Channel signal
Eight channel asynchronous serial, RS232 level, with RxD, TxD, RTS, CTS, GND for each channel.
FIFO
Each channel sends 64 bytes and receives 64 bytes.
Baud rate
Each channel is independently programmable, with a maximum of 115.2 kbaud.
Power consumption temperature
Typical power consumption is 40 mA @+5V. The working temperature ranges from 0 to+70 degrees, and the storage temperature ranges from negative 40 to positive 125 degrees.
Application Areas
Embedded Multi Serial Port Expansion
When the serial port of the industrial computer or VME system is not sufficient, inserting one port will add eight RS232 ports.
Multi device serial communication
In situations where multiple PLCs, instruments, barcode readers, or modems are communicating simultaneously.
Protocol conversion gateway
Combined with the onboard CPU, it can be used as a conversion device from serial port to Ethernet and from serial port to fieldbus.
Test data collection
Simultaneously collecting multiple serial port data in the laboratory or production line, with independent FIFO to reduce data loss.
Maintenance and replacement of old equipment
The IP serial port module used in the old embedded system is broken, and TIP866-10R can be replaced as a standard product.
This TIP866-10R is a pure RS232 version. If longer distances or better anti-interference are required on-site, RS422 is more suitable for the same series of TIP866-20R. In addition, it is an IP module and requires a carrier board and adapter module to be used in practice.

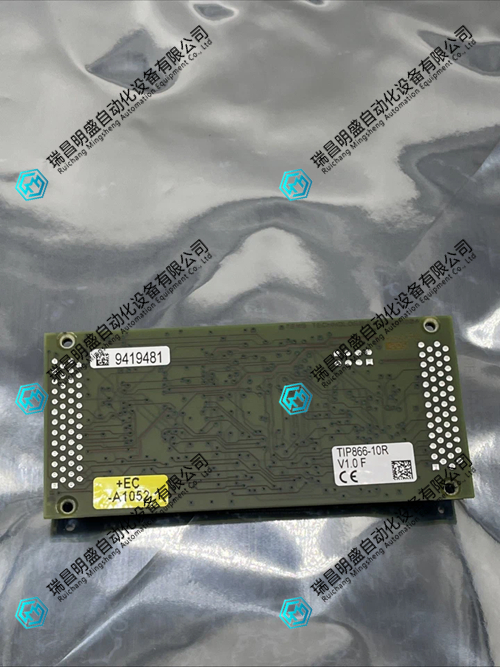

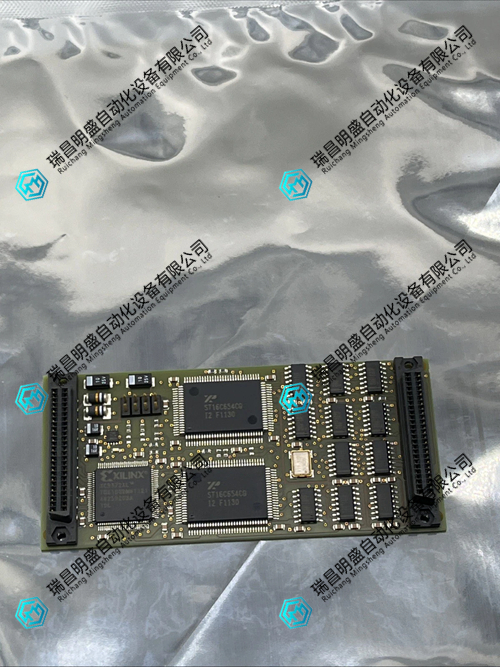

TEWS TECHNOLOGIES TIP866-10R 8通道串行接口板 产品图片
