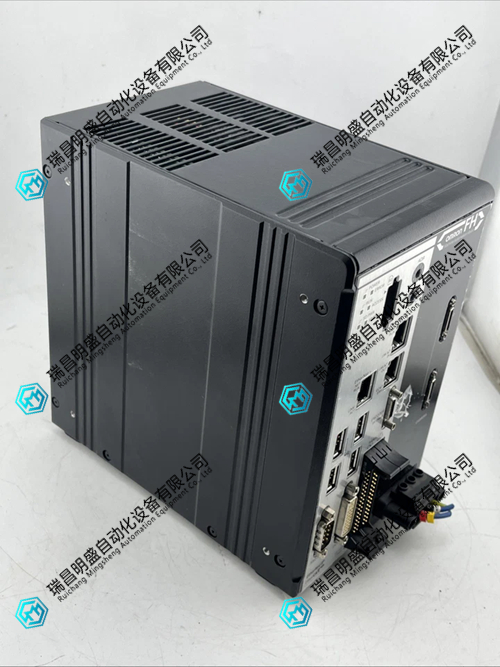

OMRON FH-1050 视觉主机控制器 PDF资料
欧姆龙 FH-1050 是 FH 系列视觉系统里的标准型控制器，双核处理器。
产品特点
双核标准控制器，适合常规检测和定位任务。
根据型号支持 2 到 8 台相机。
搭载 Shape Search III 算法，目标重叠、有光泽或部分遮挡也能稳定找到。
支持 EtherCAT，能跟 NJ/NX 控制器或伺服系统高速同步。
相机兼容性好，FH-S 和 FZ-S 系列都能接。
产品参数
处理器：双核 CPU。
相机接口：欧姆龙专用接口。
相机台数：基础款 2 台，-10 款 4 台，-20 款 8 台。
电源：直流 20.4 到 26.4V。
尺寸与重量：190 x 115 x 182.5 毫米，约 3.4 公斤。
应用领域
高速灌装生产线在线缺陷检测。
电池焊接定位。
汽车零部件检测和条码追溯。
机器人无序抓取。
产品外观检查、OCR 识别、2D 码读取。
总的来说，FH-1050 就是欧姆龙 FH 系列的标准款视觉控制器，双核处理、支持多相机、带 EtherCAT，干活稳当。
Omron FH-1050 is a standard controller and dual core processor in the FH series vision system.
Product Features
Dual core standard controller, suitable for routine detection and positioning tasks.
Supports 2 to 8 cameras according to the model.
Equipped with the Shape Search III algorithm, targets that overlap, are glossy, or partially occluded can be found stably.
Supports EtherCAT and can synchronize with NJ/NX controllers or servo systems at high speed.
The camera has good compatibility and can be connected to both FH-S and FZ-S series.
Product Specifications
Processor: Dual core CPU.
Camera interface: Omron dedicated interface.
Number of cameras: 2 basic models, 4-10 models, and 8-20 models.
Power supply: DC 20.4 to 26.4V.
Size and weight: 190 x 115 x 182.5 millimeters, approximately 3.4 kilograms.
Application Areas
Online defect detection for high-speed filling production line.
Battery welding positioning.
Automotive parts inspection and barcode traceability.
Robots grab in disorder.
Product appearance inspection, OCR recognition, 2D code reading.
Overall, FH-1050 is the standard visual controller of Omron FH series, with dual core processing, support for multiple cameras, and EtherCAT, ensuring stable operation.
