FANUC A16B-2203-0730/01A 操作面板 I/O 板 PDF资料
A16B-2203-0730/01A 是发那科数控系统里的操作面板 I/O 板，说白了就是管面板上按键和指示灯跟系统之间信号沟通的那块板子。
产品特点
操作面板专用接口板，负责面板按键、LED 指示灯和 CNC 控制 CPU 之间的信号传输。
抗干扰设计，适合工业现场那种电气噪声比较大的环境，信号传输稳。
模块化集成，装在系统机箱里，跟其他板卡配合工作。
属于发那科原厂件，老系统上用得挺多，市面上流通的基本是库存或拆机件。
后缀 /01A 是版本号，跟基础型号 A16B-2203-0730 功能一致。
产品参数
类型：操作面板 I/O 印刷电路板。
功能：管理操作面板按键、LED 与 CNC 控制 CPU 之间的信号通信。
尺寸：大约 32 厘米长、18 厘米宽、5 厘米高。
产地：日本。
重量：大概 1 公斤出头，具体看实物。
应用领域
发那科数控系统的操作面板信号处理。
加工中心和车床的维修备件替换。
注塑机等发那科控制设备的 I/O 板更换。
老设备维护翻新时找拆机件顶上。
数控机床控制柜里操作面板部分的故障排查。
总的来说，A16B-2203-0730/01A 就是发那科系统里管操作面板信号的那块 I/O 板，面板按键和指示灯全得靠它跟系统对话
FANUC A16B-2203-0730/01A 操作面板 I/O 板 英文介绍
A16B-2203-0730/01A is the operation panel I/O board in the Fanuc CNC system, which is essentially the board that communicates signals between the buttons and indicator lights on the control panel and the system.
Product Features
Special interface board for operation panel, responsible for signal transmission between panel buttons, LED indicator lights, and CNC control CPU.
Anti interference design, suitable for industrial environments with high electrical noise, and stable signal transmission.
Modular integration, installed in the system chassis, works in conjunction with other boards.
Belonging to Fanuc original factory parts, they are widely used in old systems, and the products circulating in the market are mostly inventory or disassembled parts.
The suffix/01A is the version number, which is consistent with the functionality of the basic model A16B-2203-0730.
Product Specifications
Type: Operation panel I/O printed circuit board.
Function: Manage signal communication between operation panel buttons, LEDs, and CNC control CPU.
Size: Approximately 32 centimeters long, 18 centimeters wide, and 5 centimeters high.
Origin: Japan.
Weight: Approximately over 1 kilogram, depending on the actual product.
Application Areas
Signal processing for the operation panel of Fanuc CNC system.
Replacement of maintenance spare parts for machining centers and lathes.
Replacement of I/O boards for Fanuc control equipment such as injection molding machines.
When maintaining and renovating old equipment, find dismantled parts on top.
Troubleshooting of the operation panel in the CNC machine control cabinet.
Overall, A16B-2203-0730/01A is the I/O board in the Fanuc system that manages the operation panel signals. The panel buttons and indicator lights all rely on it to communicate with the system

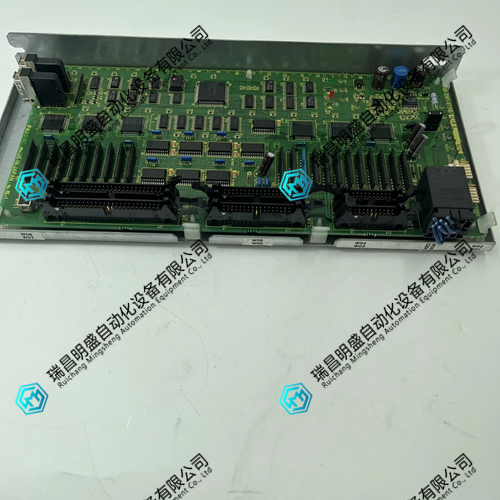

FANUC A16B-2203-0730/01A 操作面板 I/O 板 产品图片
