MOTRONA GV204脉冲分离器 PDF资料
咱们聊聊 MOTRONA GV204 这个脉冲分离器，说白了就是能把一路编码器信号分成两路，给两台设备用。
产品特点
一进两出，一个编码器信号能同时给两个控制器或驱动器。
能当电平转换器，TTL/RS422 和 HTL 之间互相转。
输入电平拨码开关现场可设，不用买对应型号。
两个输出口各自独立设电平，5V 或 10到30V 都行。
支持单端 HTL，只有 A、B、Z 三根线也能用。
产品参数
输入信号：A、/A、B、/B、Z、/Z，支持 RS422、TTL 或 HTL。
输出信号：两路独立 A、/A、B、/B、Z、/Z，电平可选 5V 或 10到30V。
最大频率：TTL 模式 750 kHz，HTL 模式 300 kHz。
供电：5V 或 10到30V 直流都行。
安装：DIN 导轨，约 85 x 90 x 50 毫米。
应用领域
一个编码器信号同时给 PLC 和伺服驱动器。
老设备改造，HTL 转 TTL 或反过来。
多轴同步，一路位置信号分给多个轴卡。
长距离传输后信号整形再分配。
替换老型号 GV202 或 GV203。
总之 GV204 这玩意儿就是个信号分配的小盒子，编码器信号一变二，顺带还能转电平，往导轨上一卡就能干活。
MOTRONA GV204脉冲分离器 英文介绍
Let's talk about the MOTRONA GV204 pulse separator, which can split one encoder signal into two paths for use by two devices.
Product Features
One in two out, one encoder signal can simultaneously supply two controllers or drivers.
Can be used as a level converter to convert between TTL/RS422 and HTL.
The input level dip switch can be set on site without the need to purchase the corresponding model.
The two output ports are independently set to voltage levels, either 5V or 10 to 30V.
Supports single ended HTL, only A, B, and Z wires can be used.
Product Specifications
Input signals: A,/A, B,/B, Z,/Z, supporting RS422, TTL, or HTL.
Output signal: Two independent channels A,/A, B,/B, Z,/Z, with selectable levels of 5V or 10 to 30V.
Maximum frequency: TTL mode 750 kHz, HTL mode 300 kHz.
Power supply: 5V or 10 to 30V DC is acceptable.
Installation: DIN rail, approximately 85 x 90 x 50 millimeters.
Application Areas
An encoder signal is sent to both the PLC and servo driver simultaneously.
Old equipment renovation, HTL to TTL or vice versa.
Multi axis synchronization, with one position signal distributed to multiple axis cards.
Signal shaping and redistribution after long-distance transmission.
Replace the old model GV202 or GV203.
In short, GV204 is just a small box for signal distribution. When the encoder signal changes to two, it can also be converted to a level, and it can work with just one card on the guide rail.

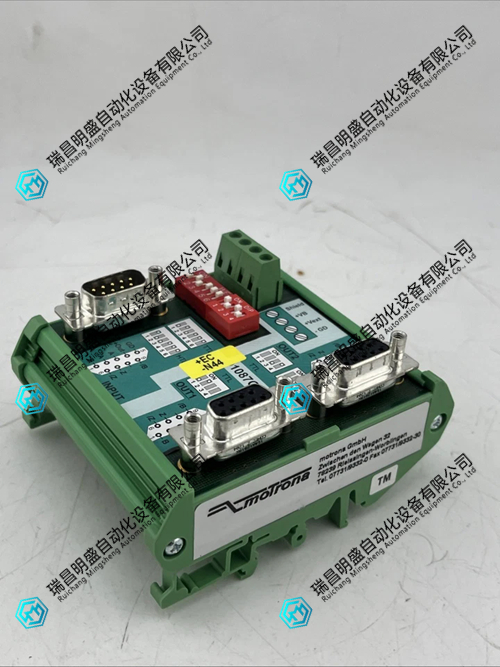

MOTRONA GV204脉冲分离器 产品图片
