TEWS TVME200-10R 印刷电路板 PDF资料

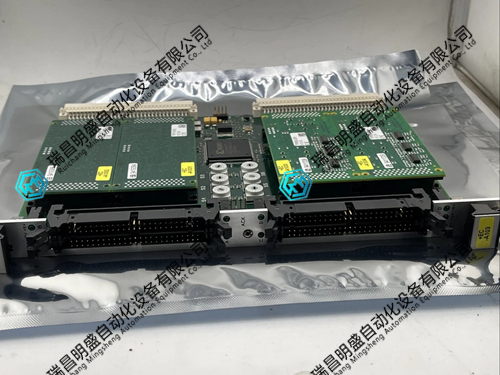

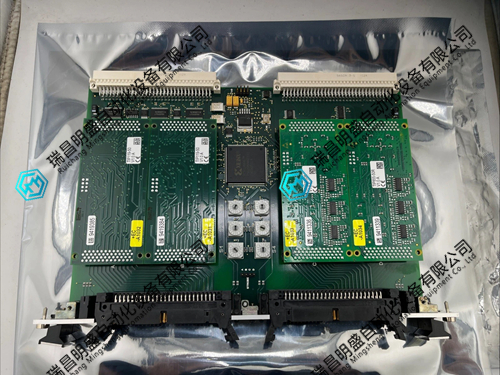

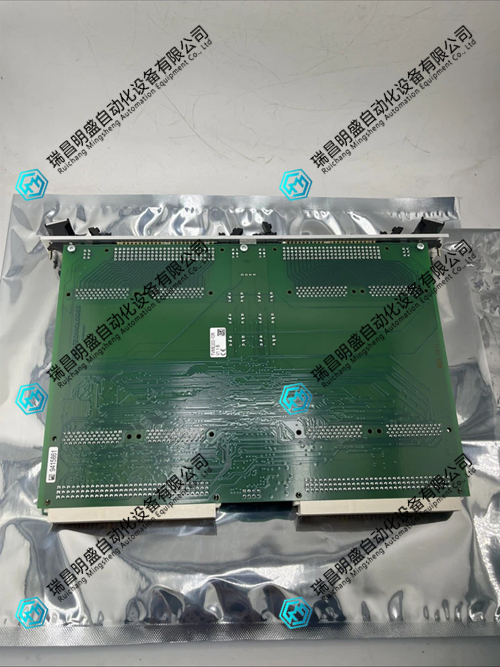

TEWS TVME200-10R 是一块 VMEbus 载板，主要用来插 IndustryPack 模块，扩展出各种 I/O 功能。
产品特点
模块化设计，一块板子能插四个单尺寸或者两个双尺寸的 IP 模块，配置很灵活。
地址和中断配置方便，用旋转开关就能设置 VME 地址，不用费劲折腾跳线。
前面板带状态指示灯，每个 IP 槽的访问状态和电源情况一目了然，排查问题省事。
电源保护做得挺到位，自愈保险丝加上射频滤波，不容易出幺蛾子。
工作温度范围很宽，零下 40 度到零上 85 度都能扛，恶劣环境也不怕。
产品参数
尺寸是标准的 6U VMEbus 板卡规格。
短 I/O 空间是 A16/D08/D16，每个 IP 占 256 字节。
标准内存可编程，每个 IP 从 32K 到 2M 不等；扩展内存固定每个 IP 8M。
I/O 接口是前面板 50 针扁平排线连接器，每个 IP 一个。
供电通过 VME 背板，主要用 +5V，也带正负 12V 的电源指示灯。
应用领域
工业过程控制，比如生产线上的数据采集和控制。
医疗设备，用来做信号处理和系统控制。
电信设备，作为通信系统里的 I/O 扩展平台。
交通控制，像信号灯或者铁路信号系统的数据接口。
军工和航空航天，对可靠性和宽温有要求的场景。
总的来说，TVME200-10R 就是个老老实实的 VME 载板，本身不干具体的活儿，但给各种 IP 模块提供了一个稳定可靠的家。
TEWS TVME200-10R is a VMEbus carrier board mainly used to plug in IndustriePack modules and expand various I/O functions.
Product Features
Modular design, one board can accommodate four single size or two dual size IP modules, with flexible configuration.
The address and interrupt configuration are convenient, and the VME address can be set using a rotary switch without the need to tinker with jumper wires.
The front panel is equipped with a status indicator light, which provides a clear view of the access status and power status of each IP slot, making troubleshooting easier.
The power protection is done quite well, with self-healing fuses and RF filtering, making it less prone to accidents.
The working temperature range is very wide, able to withstand temperatures from minus 40 degrees Celsius to over 85 degrees Celsius, and not afraid of harsh environments.
Product Specifications
The size is the standard 6U VMEbus board specification.
The short I/O space is A16/D08/D16, with each IP occupying 256 bytes.
Standard memory programmable, with each IP ranging from 32K to 2M; Extended memory is fixed at 8M per IP address.
The I/O interface is a 50 pin flat ribbon connector on the front panel, one for each IP.
The power supply is provided through the VME backplane, mainly using+5V and also equipped with positive and negative 12V power indicator lights.
Application Areas
Industrial process control, such as data collection and control on production lines.
Medical equipment used for signal processing and system control.
Telecommunications equipment serves as an I/O expansion platform in communication systems.
Traffic control, such as signal lights or data interfaces for railway signal systems.
Military and aerospace industries require scenarios with reliability and wide temperature range.
Overall, TVME200-10R is an honest VME carrier board that does not perform specific tasks, but provides a stable and reliable home for various IP modules.
