TEL 1187-104841-11控制器 PDF资料
这个 TEL 1187-104841-11 控制器，是东京电子半导体设备上用的一个控制板卡。下面简单说说它的特点、参数和应用。
产品特点
东京电子原厂出品，专门配自家半导体设备用的。

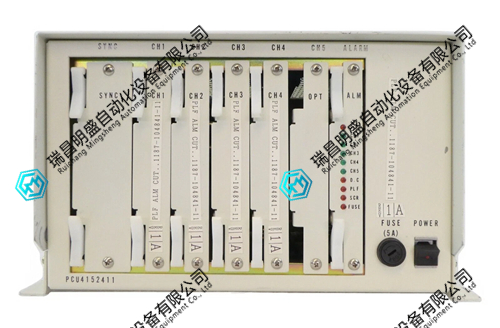

型号标的是 PLF ALM CUT，板上有 MC-SYNC 标记。
属于 PCU 系列，系列号 PCU4152411。
是一块 PCB 板卡，集成了同步和报警控制电路。
跟 TEL 机台配套设计，插上就能通信，兼容性好。
产品参数
品牌：Tokyo Electron，简称 TEL。
系列号：PCU4152411。
型号：PLF ALM CUT 1187-104841-11。
类型：PCB 板卡类控制器。
归类：电气电子元件，运动控制方向。
产品应用领域
半导体前道设备，比如涂胶显影、蚀刻机台。
运动控制，管电机或机械臂动作。
晶圆传输系统，配合机械手发同步信号。
设备维修备件，控制器坏了拿来替换。
报警切断逻辑，负责安全保护回路。
总的来说，TEL 1187-104841-11 就是半导体设备上用的一个原厂控制板卡，属于比较专的备件。
This TEL 1187-104841-11 controller is a control board used in Tokyo Electronic Semiconductor Equipment. Below is a brief description of its characteristics, parameters, and applications.
Product Features
Produced by Tokyo Electronics' original factory, specifically designed for use with their own semiconductor equipment.
The model label is PLF ALM CUT, with MC-SYNC markings on the board.
Belonging to the PCU series, series number PCU4152411.
It is a PCB board that integrates synchronization and alarm control circuits.
Designed to be compatible with TEL machines, it can be plugged in for communication and has good compatibility.
Product Specifications
Brand: Tokyo Electron, abbreviated as TEL.
Serial number: PCU4152411.
Model: PLF ALM CUT 1187-104841-11.
Type: PCB board card controller.
Classification: Electrical and electronic components, motion control direction.
Product application areas
Semiconductor front-end equipment, such as coating and developing machines, etching machines.
Motion control, control of motor or robotic arm movements.
The wafer transfer system, in conjunction with a robotic arm, sends synchronous signals.
Equipment maintenance spare parts, replace the faulty controller.
Alarm cut-off logic, responsible for safety protection circuit.
Overall, TEL 1187-104841-11 is an original control board used in semiconductor equipment and is a relatively specialized spare part.
