CBO10-P 3BDH000733R1二进制输出模块 PDF资料
1.产 品 资 料 介 绍：
CBO10-P 3BDH000733R1 二进制输出模块
产品特点
属于ABB Symphony Plus DCS系统的二进制输出模块。
提供24路继电器型数字量输出通道，采用无源触点输出。
每路触点负载能力最高1A，支持10-60V AC/DC。
各输出通道之间电气隔离，抗干扰能力强。
支持模块冗余配置，提升关键回路可靠性。
内置通道开关次数计数器，便于维护规划。
具备模块在线状态监测与故障自诊断功能。
紧凑型设计，宽度仅45mm，节省机柜空间。
净重约0.82kg，外形尺寸45×340×202mm。
需配合3个CI 100/101接口模块完成系统集成。
应用领域
化工厂驱动电磁阀、气动阀和电动执行器。
泵站和输送系统控制电机接触器及加热器启停。
控制现场指示灯、报警灯、蜂鸣器等声光报警设备。
通过耦合继电器驱动高负载设备，实现小信号对大负载的控制。
包装生产线控制换向挡板、气缸和产品剔除装置。
火电、水处理等过程控制DCS系统中的安全联锁与设备驱动。
总结
CBO10-P是ABB Symphony Plus系统的高密度继电器型输出模块，以24通道无源触点、通道隔离及冗余配置为核心优势，适用于过程工业中对电磁阀、接触器等设备的中等负载控制场景。
CBO10-P 3BDH000733R1二进制输出模块 英文介绍
CBO10-P 3BDH000733R1 Binary Output Module
Product Features
Binary output module belonging to ABB Symphony Plus DCS system.
Provide 24 relay type digital output channels, using passive contact output.
Each contact has a maximum load capacity of 1A and supports 10-60V AC/DC.
The electrical isolation between each output channel has strong anti-interference ability.
Support module redundancy configuration to enhance the reliability of critical circuits.
Built in channel switch count counter for easy maintenance and planning.
Equipped with module online status monitoring and fault self diagnosis functions.
Compact design with a width of only 45mm, saving cabinet space.
The net weight is about 0.82kg, and the external dimensions are 45 × 340 × 202mm.
Three CI 100/101 interface modules are required to complete system integration.
Application Domain
Chemical plants drive solenoid valves, pneumatic valves, and electric actuators.
Pump station and conveying system control motor contactor and heater start stop.
Control on-site indicator lights, alarm lights, buzzers, and other sound and light alarm devices.
By coupling relays to drive high load devices, small signals can be used to control large loads.
The packaging production line controls the reversing baffle, cylinder, and product removal device.
Safety interlocking and equipment driving in DCS systems for process control of thermal power and water treatment.
summary
CBO10-P is a high-density relay type output module of ABB Symphony Plus system, with 24 channel passive contacts, channel isolation and redundant configuration as its core advantages, suitable for medium load control scenarios of electromagnetic valves, contactors and other equipment in the process industry.

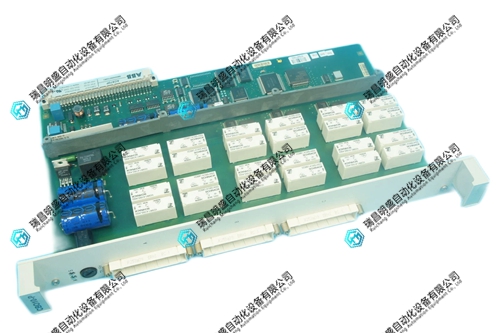

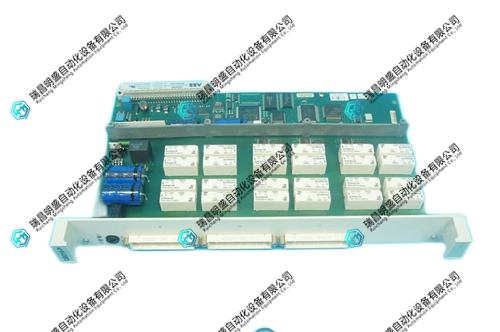

CBO10-P 3BDH000733R1二进制输出模块 产品图片
