CBC11-P 3BDH000734R1二进制控制模块 PDF资料
1.产 品 资 料 介 绍：
CBC11-P 3BDH000734R1 二进制控制模块
产品特点
属于ABB Symphony Plus DCS系统的开环控制模块。
支持7或14路控制通道，可根据应用需求灵活配置。
集成48个输入通道和36个输出通道的高密度I/O架构。
每个通道组采用电气隔离设计，有效防止接地回路干扰。
集成变送器电源功能，可为现场变送器提供环路供电。
支持驱动电磁阀、执行器和电机驱动器的精确指令执行。
紧凑型设计，宽度仅45mm，节省控制柜空间。
净重0.69kg，轻量化设计便于安装与维护。
符合RoHS和WEEE环保标准。
需配合4个CI 100/101接口模块及电缆夹完成安装。
应用领域
火电厂DCS系统中驱动电磁阀和执行器。
水处理厂泵站自动化中的电机驱动控制。
通过耦合继电器实现高负载设备的通断切换控制。
为现场变送器提供环路电源。
工厂自动化中的电机驱动信号管理。
分布式控制系统(DCS)的I/O扩展与控制逻辑执行。
总结
CBC11-P是ABB Symphony Plus系统的开环控制模块，以高密度通道配置、集成供电能力和电气隔离设计为核心优势，适用于火电、水处理等过程工业中对执行器和电机的精确控制需求。
CBC11-P 3BDH000734R1二进制控制模块 英文介绍
CBC11-P 3BDH000734R1 Binary Control Module
Product Features
The open-loop control module belongs to the ABB Symphony Plus DCS system.
Supports 7 or 14 control channels, which can be flexibly configured according to application requirements.
A high-density I/O architecture that integrates 48 input channels and 36 output channels.
Each channel group adopts an electrical isolation design to effectively prevent interference from the grounding circuit.
Integrated transmitter power supply function can provide loop power supply for on-site transmitters.
Support precise command execution for driving solenoid valves, actuators, and motor drivers.
Compact design with a width of only 45mm, saving control cabinet space.
Net weight 0.69kg, lightweight design for easy installation and maintenance.
Compliant with RoHS and WEEE environmental standards.
Four CI 100/101 interface modules and cable clamps are required to complete the installation.
Application Domain
Drive solenoid valves and actuators in the DCS system of thermal power plants.
Motor drive control in the automation of pump stations in water treatment plants.
Realize on-off switching control of high load equipment through coupling relays.
Provide loop power supply for on-site transmitters.
Motor drive signal management in factory automation.
I/O expansion and control logic execution of distributed control system (DCS).
summary
CBC11-P is an open-loop control module of ABB Symphony Plus system, with high-density channel configuration, integrated power supply capability, and electrical isolation design as its core advantages, suitable for precise control requirements of actuators and motors in process industries such as thermal power and water treatment.

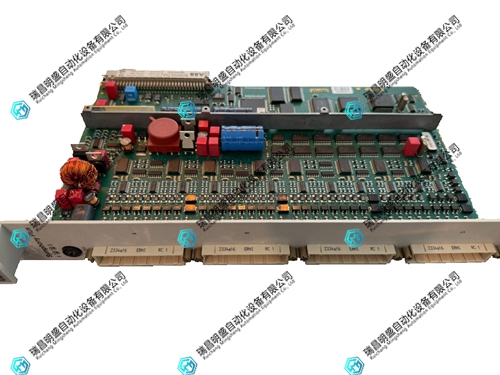

CBC11-P 3BDH000734R1二进制控制模块 产品图片
