Beckhoff CX5120-0125 基本单元 PDF资料
1.产 品 资 料 介 绍：
Beckhoff CX5120-0125 是CX5100系列的一款DIN导轨安装式嵌入式控制器，搭载Intel Atom单核处理器，无风扇设计，适合中等性能要求的自动化控制任务。
产品特点
搭载Intel Atom E3815处理器，主频1.46 GHz，单核架构。
配备2 GB DDR3 RAM，不可扩展。
存储通过CFast和MicroSD卡槽扩展。
集成1秒UPS，断电时可保存最多1 MB数据至CFast卡。
提供2个独立千兆以太网口。
提供4个USB 2.0接口和1个DVI-I接口。
支持1个可选接口插槽，可扩展RS232、PROFIBUS、CANopen、EtherCAT等协议。
电源输入为24 V DC，最大功耗约11 W。
无风扇被动散热设计，工作温度范围-25°C至+60°C。
防护等级IP20，尺寸为122mm x 100mm x 92mm，重量约975g。
支持Windows Embedded Compact 7、Windows 10 IoT Enterprise及TwinCAT/BSD等多种操作系统。
兼容TwinCAT 2和TwinCAT 3开发环境。
I/O层可自动识别E-bus或K-bus端子模块，支持模块化扩展。
带电池供电的实时时钟，电池可更换。
应用领域
作为小型PLC或嵌入式控制器，用于机器设备的逻辑控制。
实现单轴或多轴插补运动控制，配合TwinCAT NC使用。
作为带可视化界面的HMI设备，用于现场数据监控。
作为EtherCAT主站，连接分布式I/O从站设备。
包装机械的逻辑控制和运动控制。
装配生产线的自动化控制。
楼宇自动化的数据采集和控制。
能源管理系统的数据采集和监控。
机器人控制系统中作为辅助控制器或安全逻辑处理器。
SCADA系统中的数据采集和远程监控节点。
适用于有防爆要求的工业环境。
作为TwinCAT/BSD系统平台，运行自定义工业应用软件。
结尾
总之，Beckhoff CX5120-0125 是一款紧凑型无风扇嵌入式控制器，适合中等规模的自动化控制需求，尤其在需要EtherCAT通信和模块化I/O扩展的场合表现出色
Beckhoff CX5120-0125 基本单元 英文介绍
Beckhoff CX5120-0125 is a DIN rail mounted embedded controller in the CX5100 series, equipped with an Intel Atom single core processor and a fanless design, suitable for automation control tasks with medium performance requirements.
Product Features
Equipped with Intel Atom E3815 processor, with a clock speed of 1.46 GHz and a single core architecture.
Equipped with 2 GB DDR3 RAM, non expandable.
Storage is expanded through CFast and MicroSD card slots.
Integrated 1-second UPS, can save up to 1 MB of data to the CFast card in case of power failure.
Provide 2 independent Gigabit Ethernet ports.
Provide 4 USB 2.0 ports and 1 DVI-I.
Supports 1 optional interface slot, expandable to RS232, PROFIBUS, CANopen, EtherCAT and other protocols.
The power input is 24 V DC, with a maximum power consumption of approximately 11 W.
Fanless passive cooling design, operating temperature range -25 ° C to+60 ° C.
Protection level IP20, dimensions 122mm x 100mm x 92mm, weight approximately 975g.
Supports multiple operating systems such as Windows Embedded Compact 7, Windows 10 IoT Enterprise, and TwinCAT/BSD.
Compatible with TwinCAT 2 and TwinCAT 3 development environments.
The I/O layer can automatically recognize E-bus or K-bus terminal modules and support modular expansion.
Real time clock with battery power, battery replaceable.
Application Domain
As a small PLC or embedded controller, used for logical control of machine equipment.
Implement single axis or multi axis interpolation motion control, in conjunction with TwinCAT NC.
As an HMI device with a visual interface, it is used for on-site data monitoring.
As an EtherCAT master, connect distributed I/O slave devices.
Logic control and motion control of packaging machinery.
Automation control of assembly production line.
Data collection and control for building automation.
Data collection and monitoring of energy management systems.
As an auxiliary controller or safety logic processor in robot control systems.
Data acquisition and remote monitoring nodes in SCADA systems.
Suitable for industrial environments with explosion-proof requirements.
As a TwinCAT/BSD system platform, run custom industrial application software.
ending
In summary, the Beckhoff CX5120-0125 is a compact fanless embedded controller that is suitable for medium-sized automation control needs, especially in situations where EtherCAT communication and modular I/O expansion are required

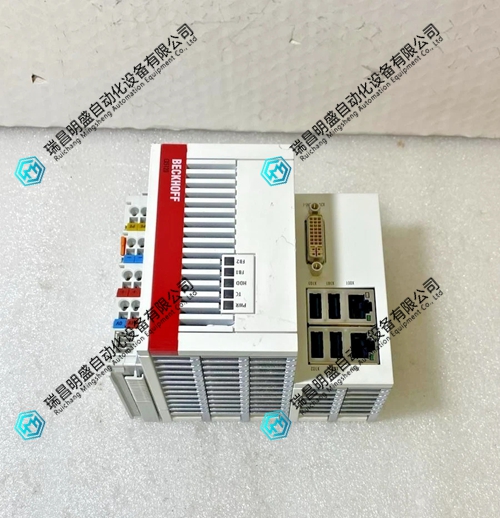

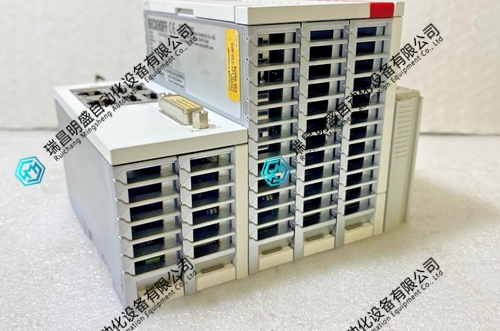

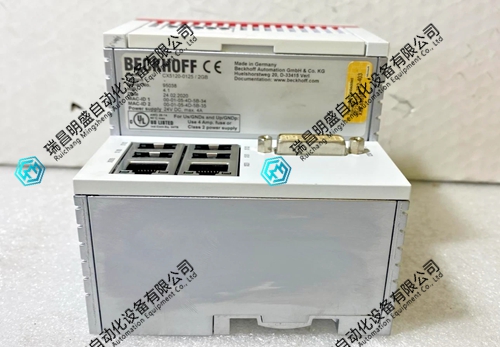

Beckhoff CX5120-0125 基本单元 产品图片
