ORBOTECH 40000850B-T 相机模块 PDF资料
1.产 品 资 料 介 绍：
ORBOTECH 40000850B-T 是一款相机模块，主要用于奥宝科技的自动光学检测（AOI）系统中。
产品特点
属于奥宝科技AOI设备的相机组件。
配合多角度光源使用，每个检测点可生成多张不同光照条件下的图像。
适用于检测PCB组装后的焊点质量和元件外观。
部分奥宝机型采用多相机配置设计，提升检测效率。
为工业级设计，适应生产线连续运行环境。
支持多组LED光源，包括平面光、陡峭光、顶部光和漫射光。
适合高精度的视觉检测场景。
作为奥宝系统组件，与检测软件深度集成。
应用领域
SMT生产线的炉后AOI检测。
PCB组装过程中的焊点质量检测。
电子制造中的元件缺失检测。
元件偏移和极性反的外观检测。
回流焊后的焊接缺陷检测。
需要多角度成像的精密视觉检测场景。
电子制造业的在线质量检测。
结尾
总之，ORBOTECH 40000850B-T 是用于奥宝AOI系统的相机模块，应用于电子制造中的PCB质量检测。
ORBOTECH 40000850B-T 相机模块 英文介绍
ORBOTECH 40000850B-T is a camera module primarily used in Orbotech's Automatic Optical Inspection (AOI) system.
Product Features
The camera component belonging to Aobao Technology AOI equipment.
When used in conjunction with multi angle light sources, each detection point can generate multiple images under different lighting conditions.
Suitable for detecting the quality of solder joints and the appearance of components after PCB assembly.
Some Aobao models adopt a multi camera configuration design to improve detection efficiency.
Designed for industrial use and suitable for continuous operation of production lines.
Supports multiple sets of LED light sources, including flat light, steep light, top light, and diffuse light.
Suitable for high-precision visual inspection scenarios.
As a component of the Orbotech system, it is deeply integrated with detection software.
Application Domain
AOI inspection of SMT production line after the furnace.
Quality inspection of solder joints during PCB assembly process.
Component missing detection in electronic manufacturing.
Visual inspection of component offset and polarity reversal.
Welding defect detection after reflow soldering.
Precise visual inspection scenes that require multi angle imaging.
Online quality inspection in the electronic manufacturing industry.
ending
In summary, ORBOTECH 40000850B-T is a camera module used in the Orbotech AOI system for PCB quality inspection in electronic manufacturing.

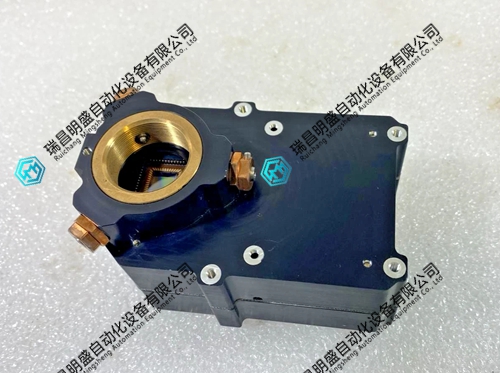

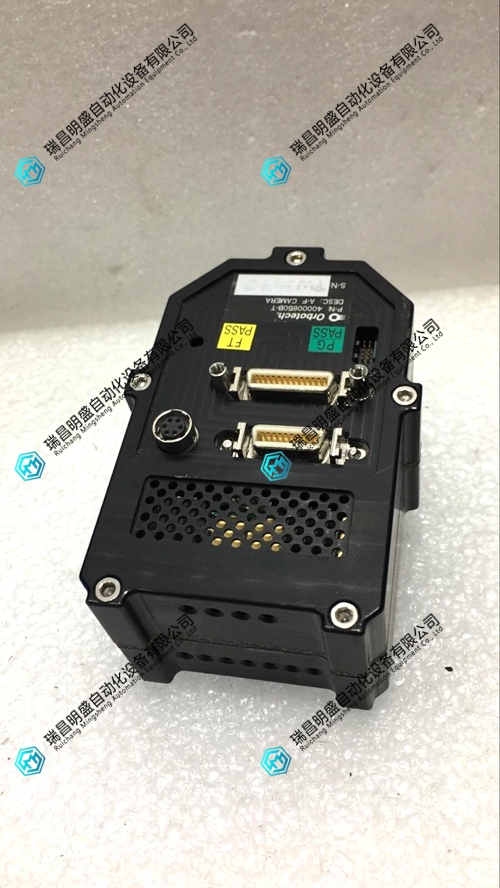

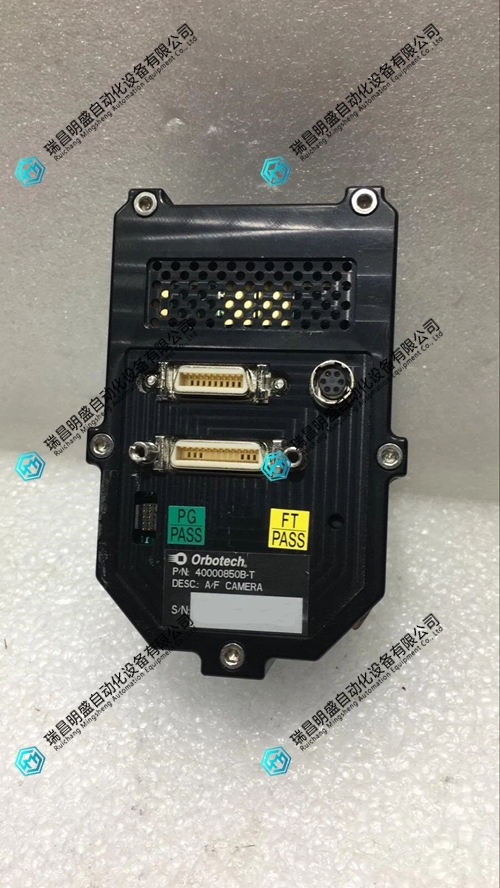

ORBOTECH 40000850B-T 相机模块 产品图片
