Omron C200PC-ISA03-1 印刷电路板 PDF资料
1.产 品 资 料 介 绍：
Omron C200PC-ISA03-1 是欧姆龙C200PC系列的一款ISA总线接口板，功能等同于SYSMAC C200HX/HG/HE系列PLC，可将个人计算机扩展为工业控制器。
产品特点
基于ISA总线的PLC板卡，直接安装在计算机ISA插槽中使用。
具备完整PLC功能，提供16K字用户程序和数据存储容量。
最多可扩展10个模块，满足较大规模控制需求。
采用5V DC供电，工作温度范围0°C至55°C。
自带电池备份功能，断电时保护程序和数据不丢失。
支持欧姆龙SYSMAC和SYSWIN系列软件编程组态。
产品已停产，目前多为二手或库存产品。
重量约为350克。
应用领域
将普通个人计算机改造为可编程逻辑控制器。
工业自动化中的逻辑控制和顺序控制。
运动控制系统中的位置和速度控制。
过程控制系统的数据采集和处理。
设备安全联锁系统的逻辑判断和执行。
生产线自动化改造中的老旧设备升级。
教学实验和科研开发中的PLC技术验证。
小型工厂自动化系统的集中控制。
包装设备的动作控制和流程管理。
测试设备的信号采集和状态监控。
楼宇自动化中的设备联动控制。
环保监测设备中的数据处理和报警控制。
结尾
总之，Omron C200PC-ISA03-1 是将计算机扩展为工业PLC的ISA总线板卡，功能完整且扩展灵活
Omron C200PC-ISA03-1 印刷电路板 英文介绍
Omron C200PC-ISA03-1 is an ISA bus interface board in the Omron C200PC series, which is functionally equivalent to the SYSMAC C200HX/HG/HE series PLC and can expand personal computers into industrial controllers.
Product Features
PLC board based on ISA bus, directly installed in the computer ISA slot for use.
Equipped with complete PLC functionality, providing 16K word user program and data storage capacity.
Up to 10 modules can be expanded to meet large-scale control requirements.
Powered by 5V DC, with a working temperature range of 0 ° C to 55 ° C.
Equipped with battery backup function, it protects programs and data from loss during power outages.
Support Omron SYSMAC and SYSWIN series software programming configuration.
The product has been discontinued and is currently mostly second-hand or in stock.
The weight is approximately 350 grams.
Application Domain
Transforming ordinary personal computers into programmable logic controllers.
Logic control and sequence control in industrial automation.
Position and speed control in motion control systems.
Data collection and processing for process control systems.
Logical judgment and execution of equipment safety interlock system.
Upgrading old equipment in the automation transformation of production lines.
PLC technology validation in teaching experiments and scientific research development.
Centralized control of automation systems in small factories.
Action control and process management of packaging equipment.
Signal acquisition and status monitoring of testing equipment.
Equipment linkage control in building automation.
Data processing and alarm control in environmental monitoring equipment.
ending
In summary, Omron C200PC-ISA03-1 is an ISA bus board that expands computers into industrial PLCs, with complete functionality and flexible expansion

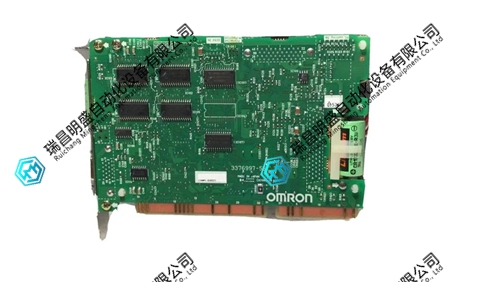

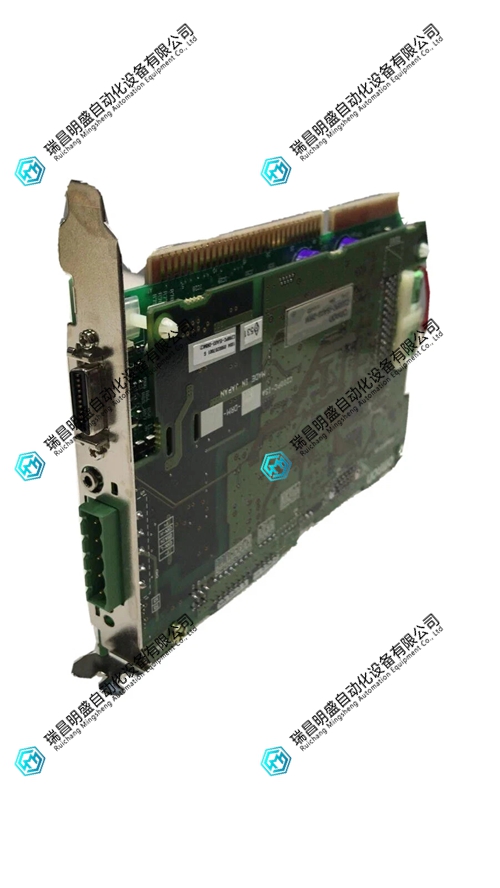

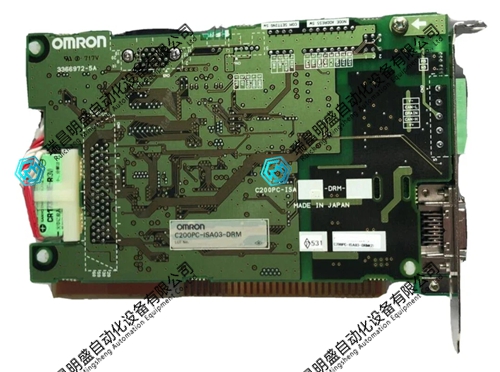

Omron C200PC-ISA03-1 印刷电路板 产品图片
